Stainless Steel Drive Shaft 5mm Universal Joint Driveshaft Cvd for 1/14 1/10 Tamiya RC Truck Dump Tractor Crawler SCX10 TRX4 DIY

**Product Description**
CNC-machined from stainless steel, this telescoping drive shaft runs a 10-spline sliding section that stays backlash-free under load, with true CVD joints at both ends for smooth constant-velocity power transfer.
The 5mm inner hole fits 5mm transmission and axle output shafts, so one part serves both 1/14 trucks and 1/10 rock crawlers - pick from 8 sizes and bolt it on with the included M4 set pins.

**What's Included**
1 x stainless steel telescoping drive shaft, size as selected
5 x M4 set pins (for attaching to pinion and transmission)
Trucks, axles and other parts shown in photos are for display only and are not included.

**Key Features**
* CNC-machined stainless steel - precise, rust-resistant and far more durable than stock shafts

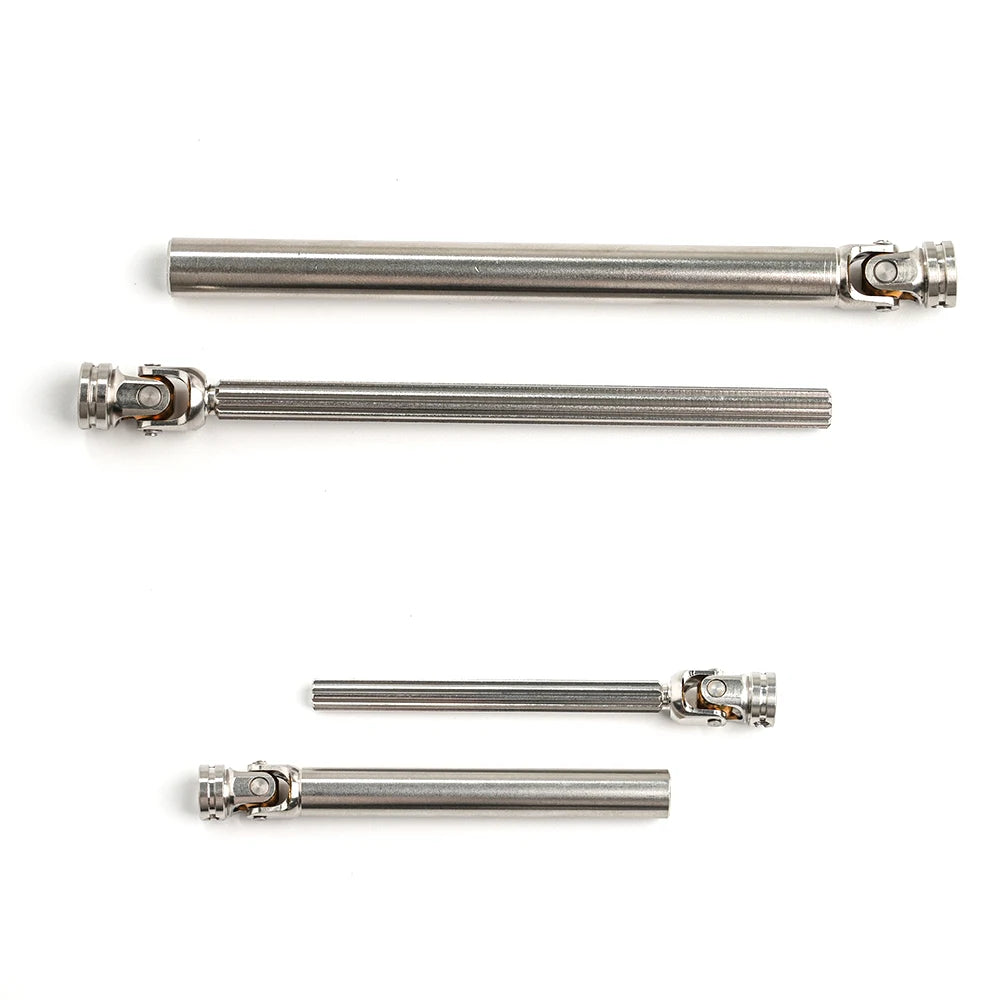

*10-spline sliding section, backlash-free - extends with suspension travel with no play or wobble under torque

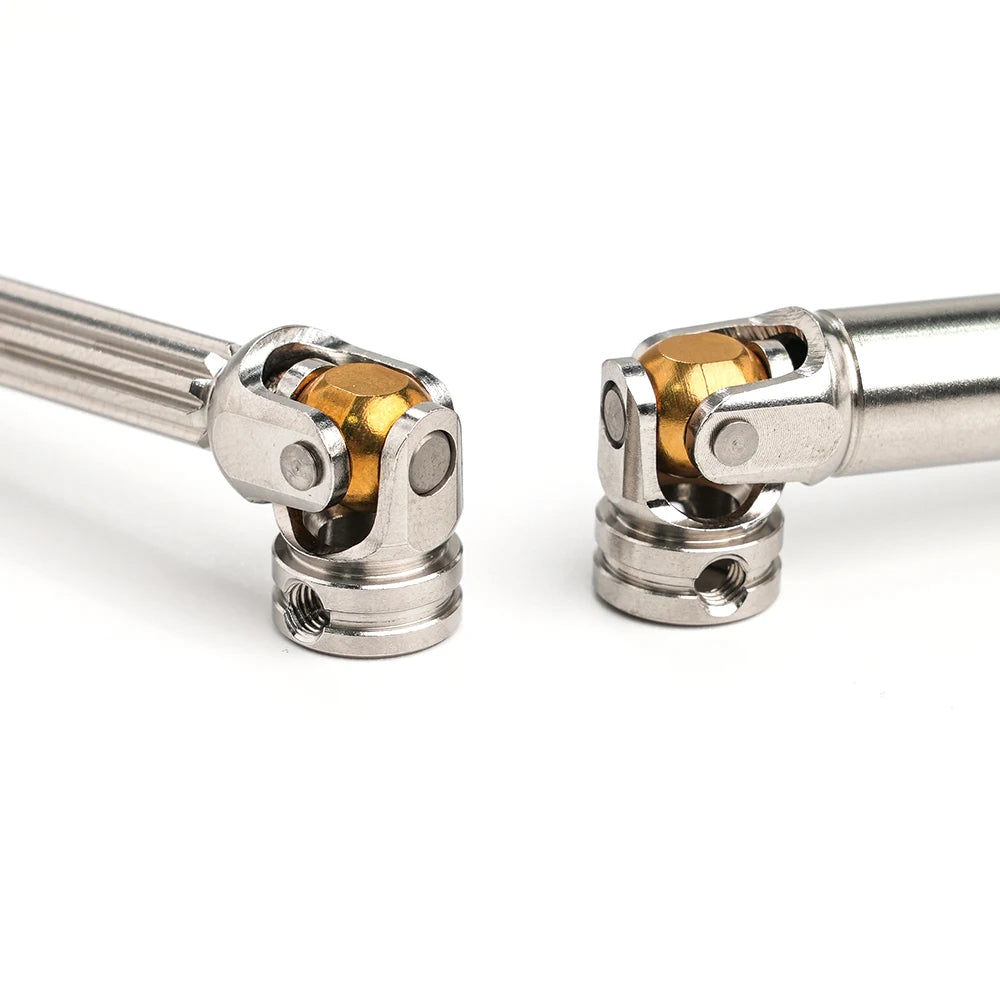

*True CVD joints at both ends - constant velocity transfer with less vibration than dogbone-style shafts
*5mm inner hole - fits 5mm transmission / axle output shafts, so the same shaft works on 1/14 trucks and 1/10 crawlers
*M4 set pins included - 5 per shaft to lock it to the pinion and transmission, ready to install

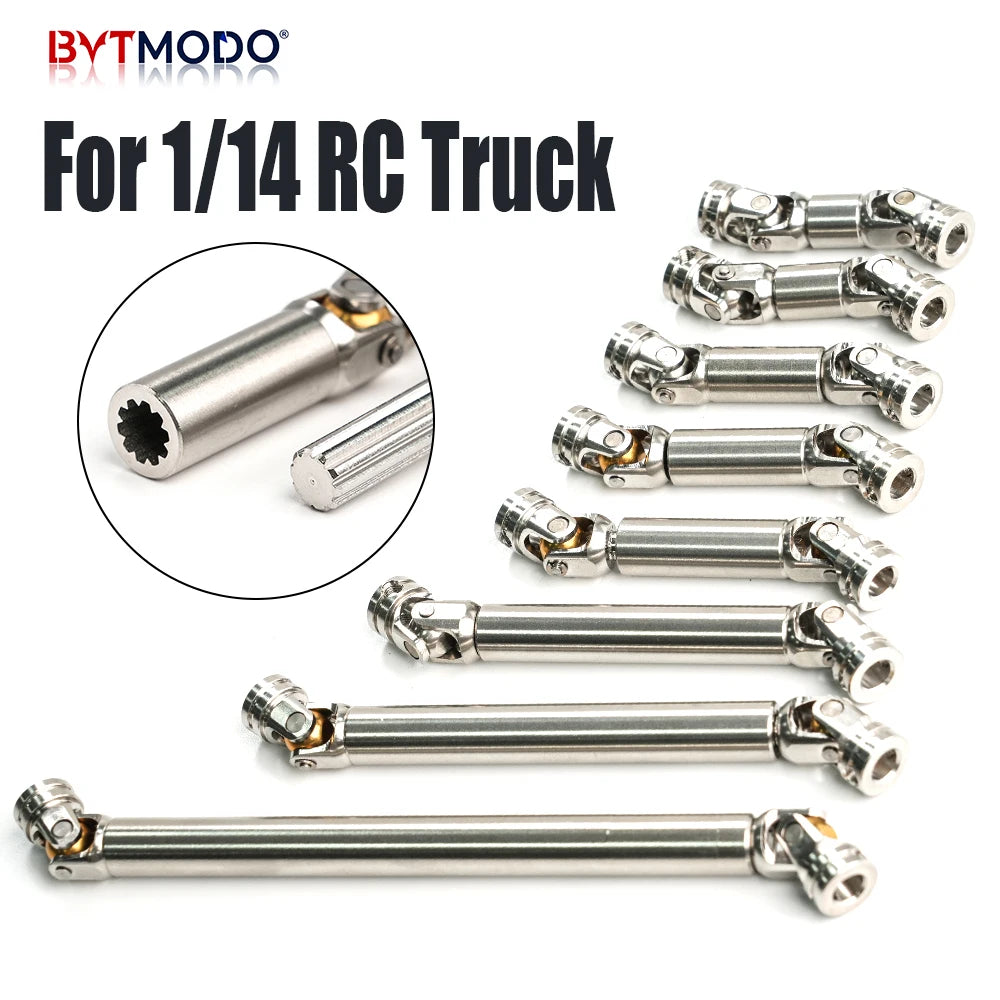

*8 sizes from 44-49mm to 134-172mm - match the collapsed-to-extended range your driveline needs

**Compatibility**
Fit is by size, not by scale: check the 5mm output shaft diameter first, then match the length.
Fits 1/14 scale tractor trucks and dump trucks (for Tamiya 1/14 chassis and similar third-party builds).
Also fits 1/10 scale rock crawlers and other RC cars using a 5mm output shaft and a matching length range.

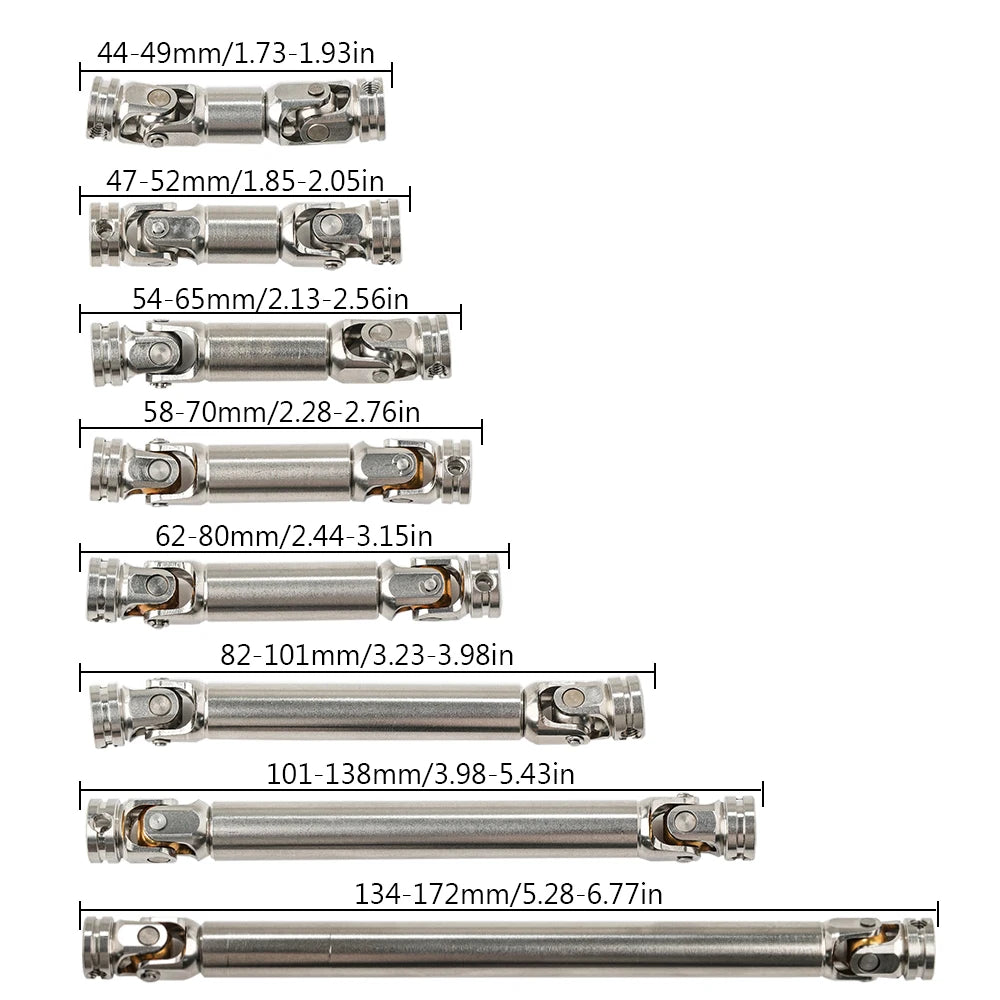

Choose by collapsed-to-extended length: TP-009 = 44-49mm, TP-010 = 47-52mm, TP-011 = 54-65mm, TP-012 = 58-70mm, TP-013 = 62-80mm, TP-014 = 82-101mm, TP-015 = 101-138mm, TP-016 = 134-172mm.
Measure your driveline at rest and at full suspension droop, then pick the size whose range covers both values.

**Specifications**

Material: stainless steel, CNC machined
Type: telescoping drive shaft with CVD joints at both ends

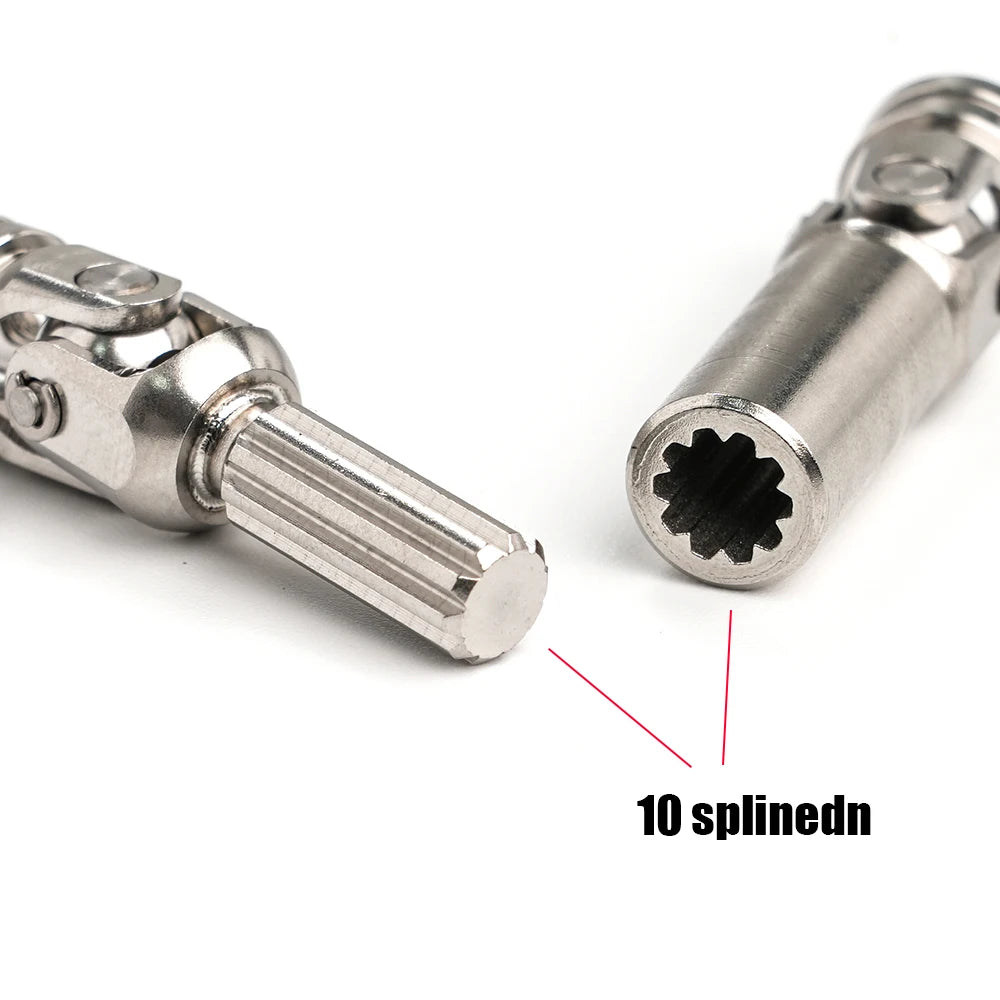

Sliding section: 10-spline, backlash-free

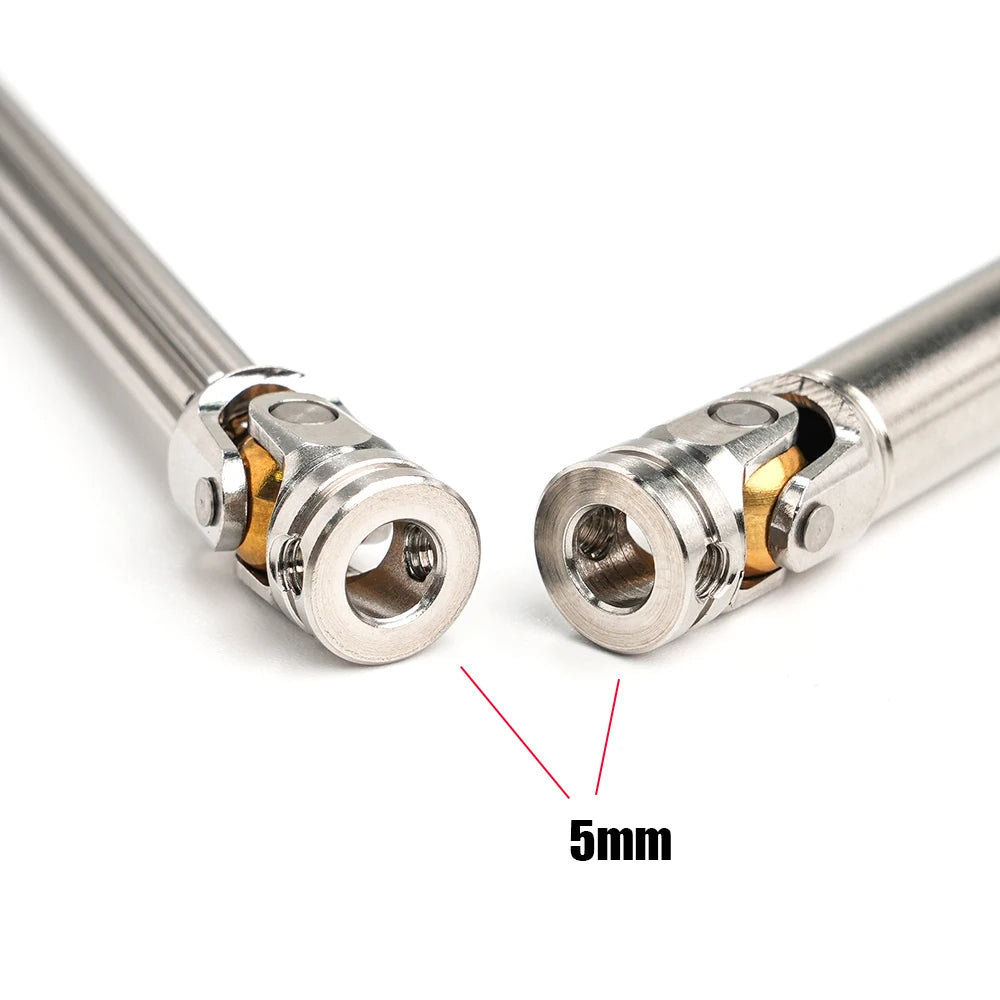

Inner hole diameter: 5mm (fits 5mm transmission / axle output shaft)
Set pins: 5 x M4 per shaft (included)
Quantity: 1 shaft per SKU

| SKU | Length Range (min-max) | Weight (per shaft, incl. 5 grub screws)

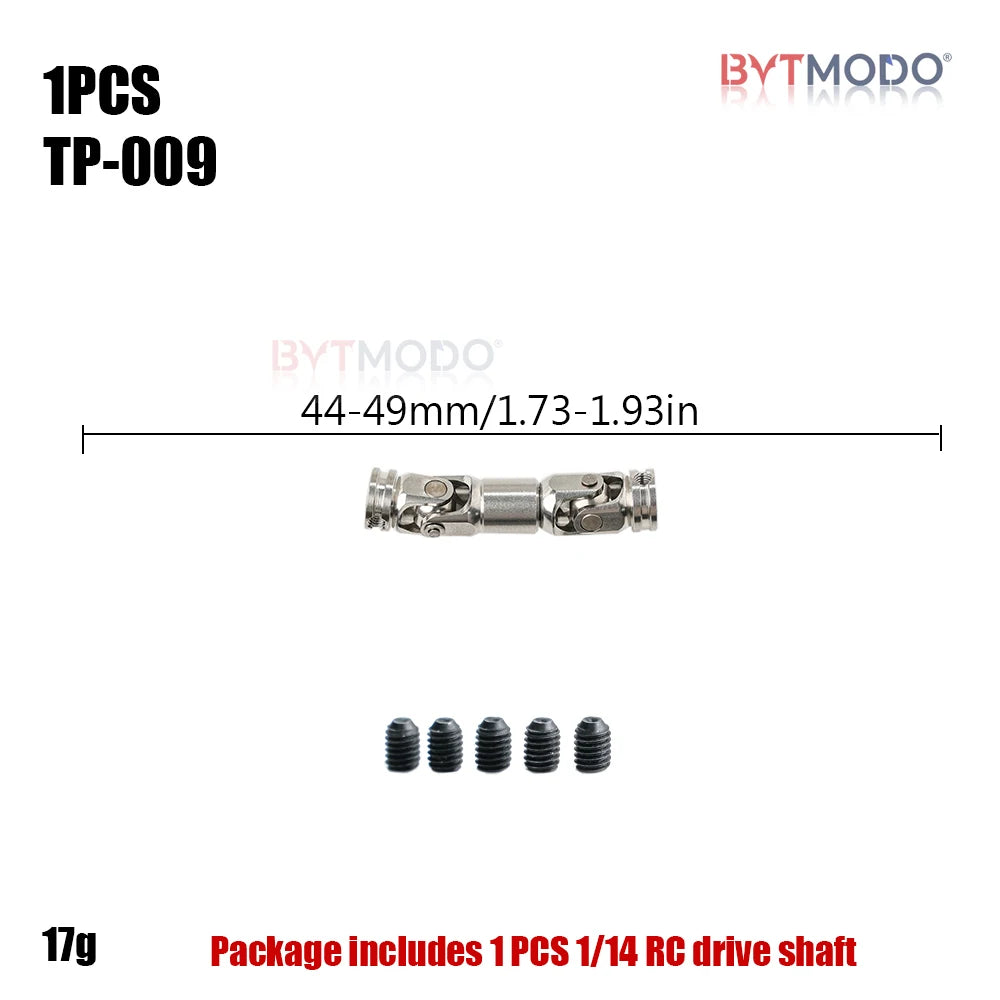

|| TP-009 | 44-49mm | 17g |

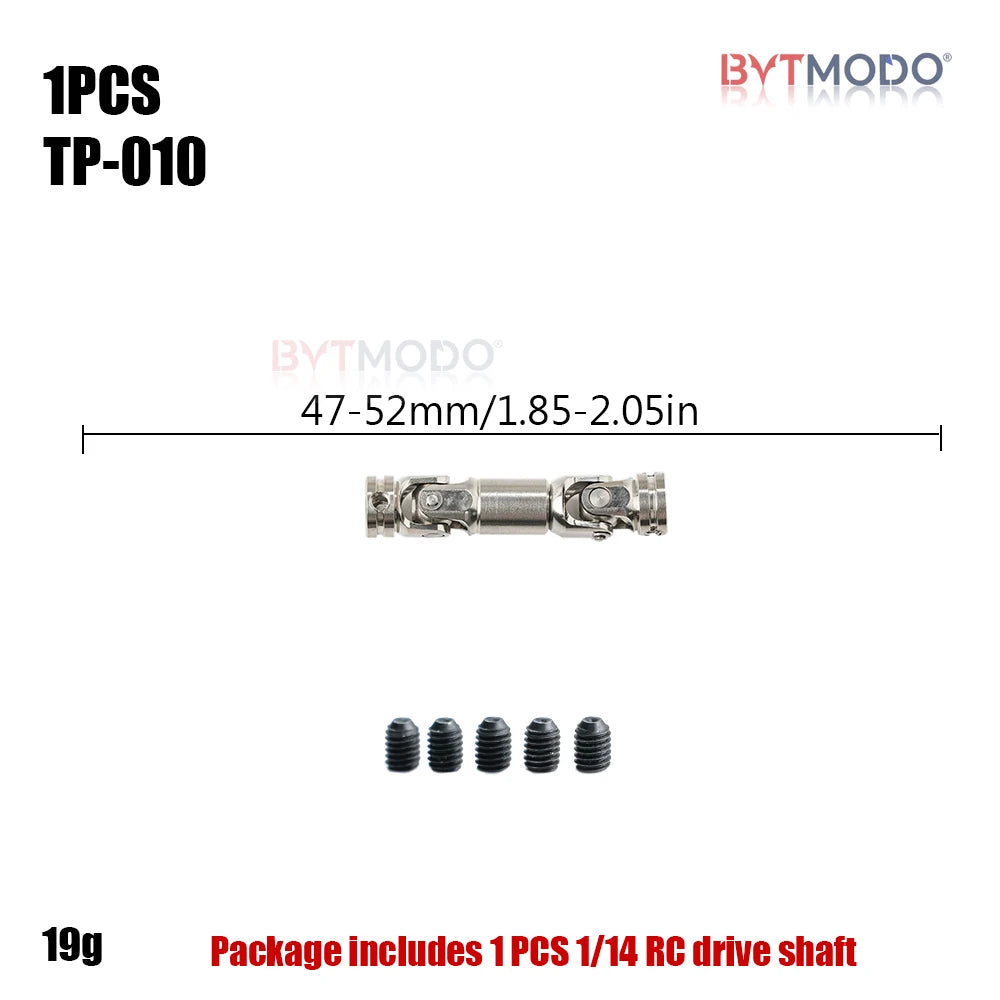

| TP-010 | 47-52mm | 19g |
| TP-011 | 54-65mm | 20g |
| TP-012 | 58-70mm | 23g |
| TP-013 | 62-80mm | 26g |

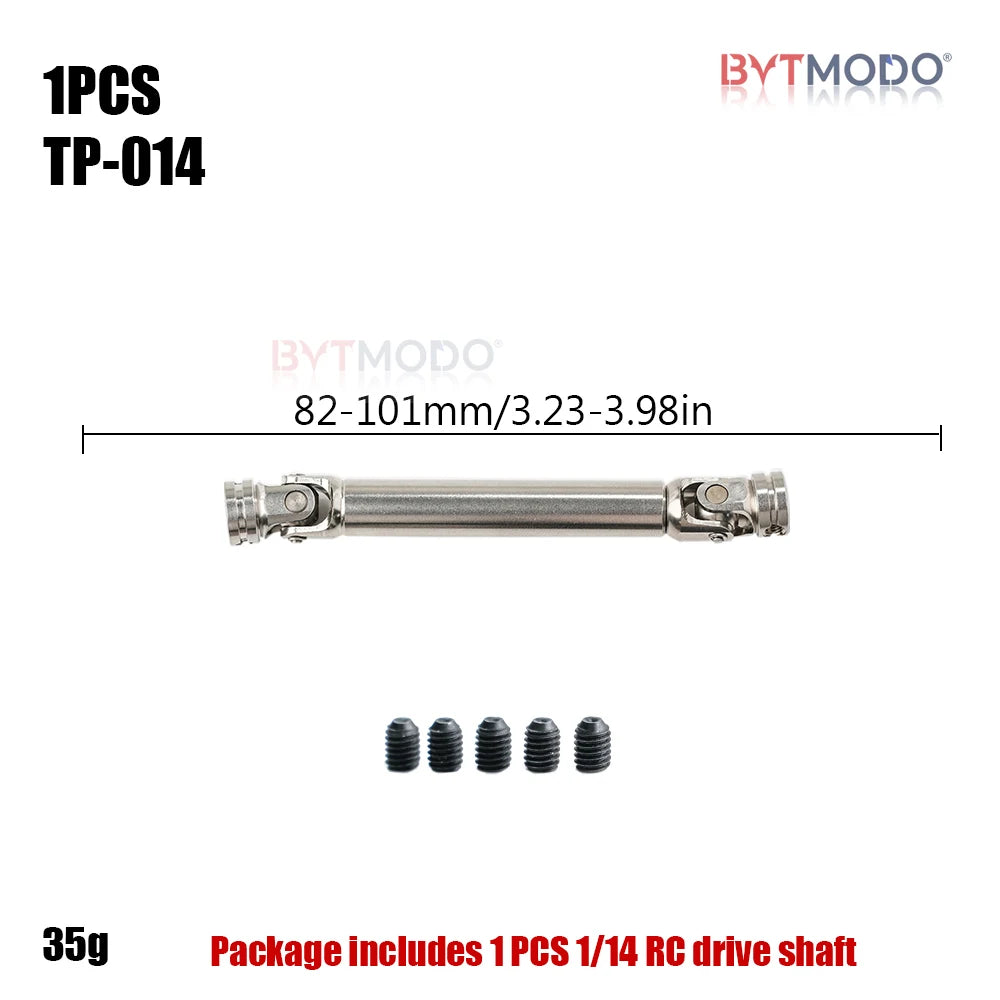

| TP-014 | 82-101mm | 35g |

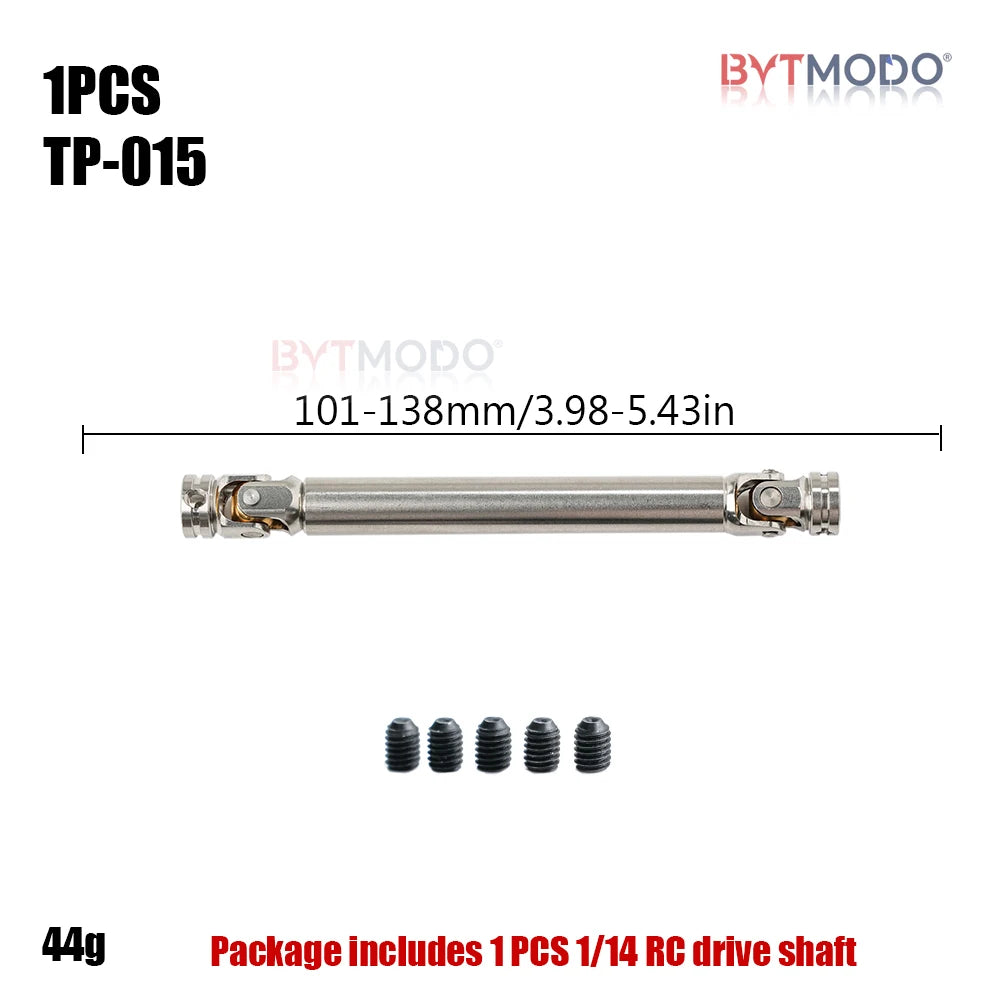

| TP-015 | 101-138mm | 44g |

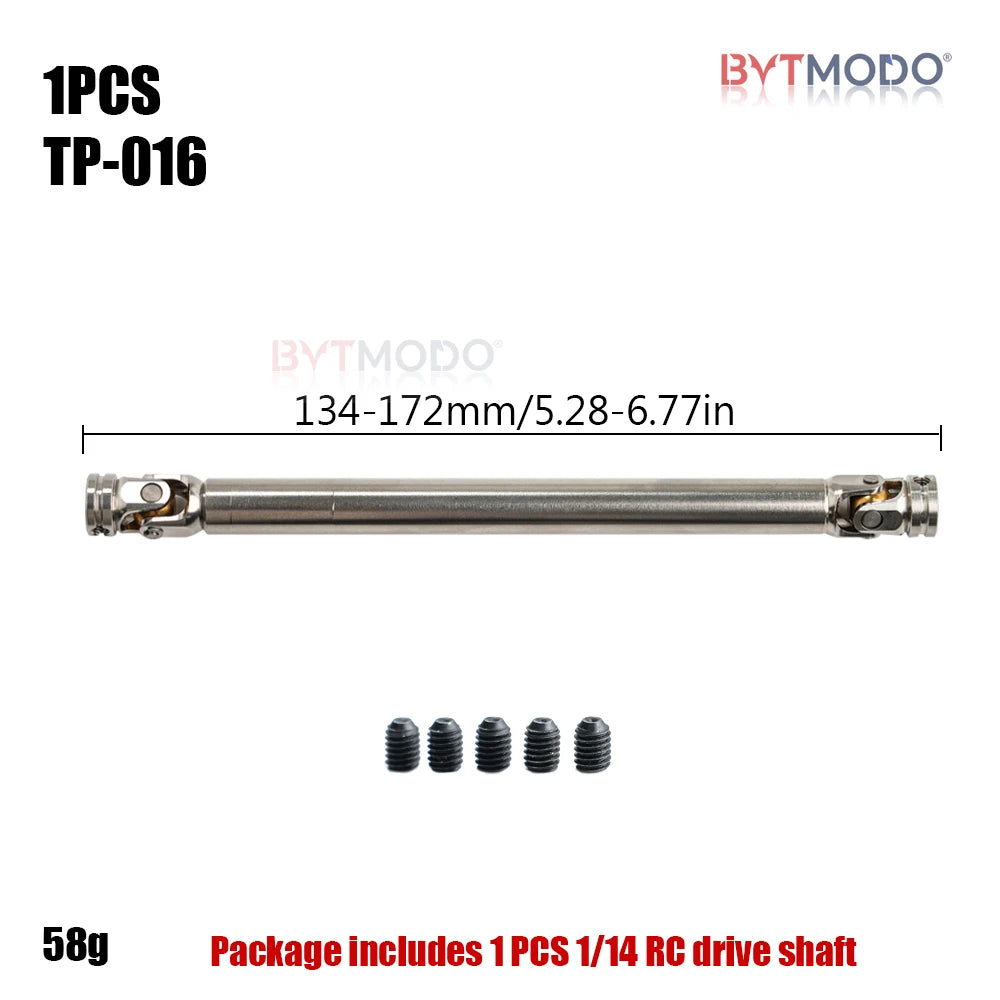

| TP-016 | 134-172mm | 58g |

Sizes are telescoping ranges; the factory drawing's single values are for reference only and the ranges above are authoritative.

**Note**
Please confirm your output shaft is 5mm and measure the driveline at rest and at full suspension droop before ordering.
Minor machining marks or polish differences on the stainless surface are normal.
Tighten the M4 set pins firmly onto the pinion and transmission, and check them after the first run.
Trucks, axles and other parts shown in the photos are for display only and are not included.
This is not an official Tamiya, Mercedes-Benz, Scania or IVECO product.
All brand and model names mentioned are for compatibility description only.
