Product Description
This listing sells the hydraulic parts individually - a brushless oil pump, lift cylinders, oil tanks and a 30A brushless ESC, each on its own SKU, so you can order exactly the part you need and nothing more.
Every part is also offered as a matched set: four sets pair the same brushless pump, a 72mm tank and a 30A ESC with a different lifting layout - an F-frame, a center-mounted, or a front-mounted 4-stage / 5-stage telescopic cylinder - for builders who want the circuit ready to fit in one box.
The 2212-930KV brushless motor is built into the pump body as one unit; the tank is polished stainless steel with hose, brackets and fittings in the box.
Pick a single part from the drop-down to replace one component, or pick a set for pump + cylinder + tank + ESC together.

Variants - Single Parts & Sets

Single parts (each sold separately):

• Brushless hydraulic pump - TP-041

• F-frame lift cylinder - TP-040

• Center-mounted telescopic cylinder - TP-039

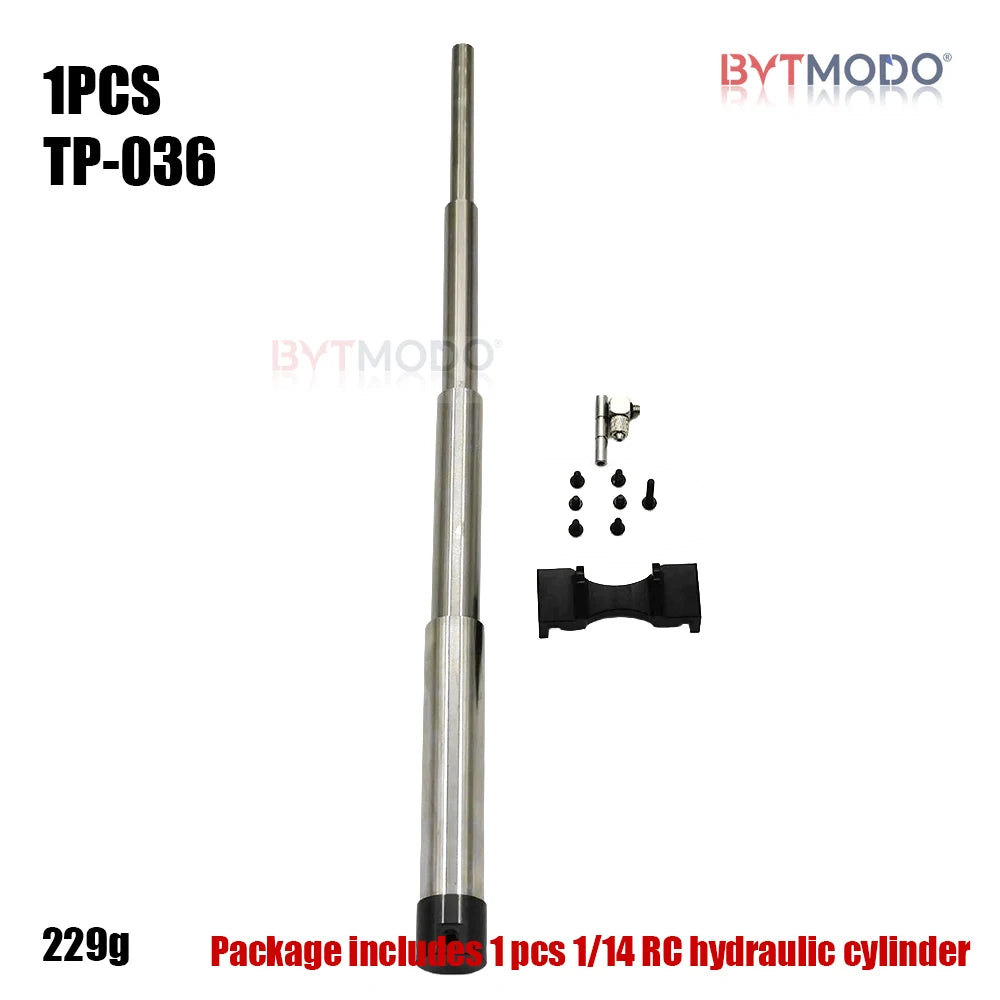

• Front-mounted 4-stage telescopic cylinder - TP-036

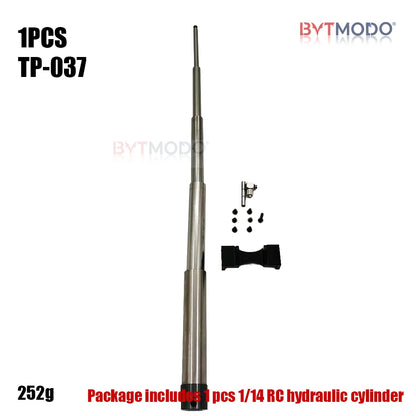

• Front-mounted 5-stage telescopic cylinder - TP-037

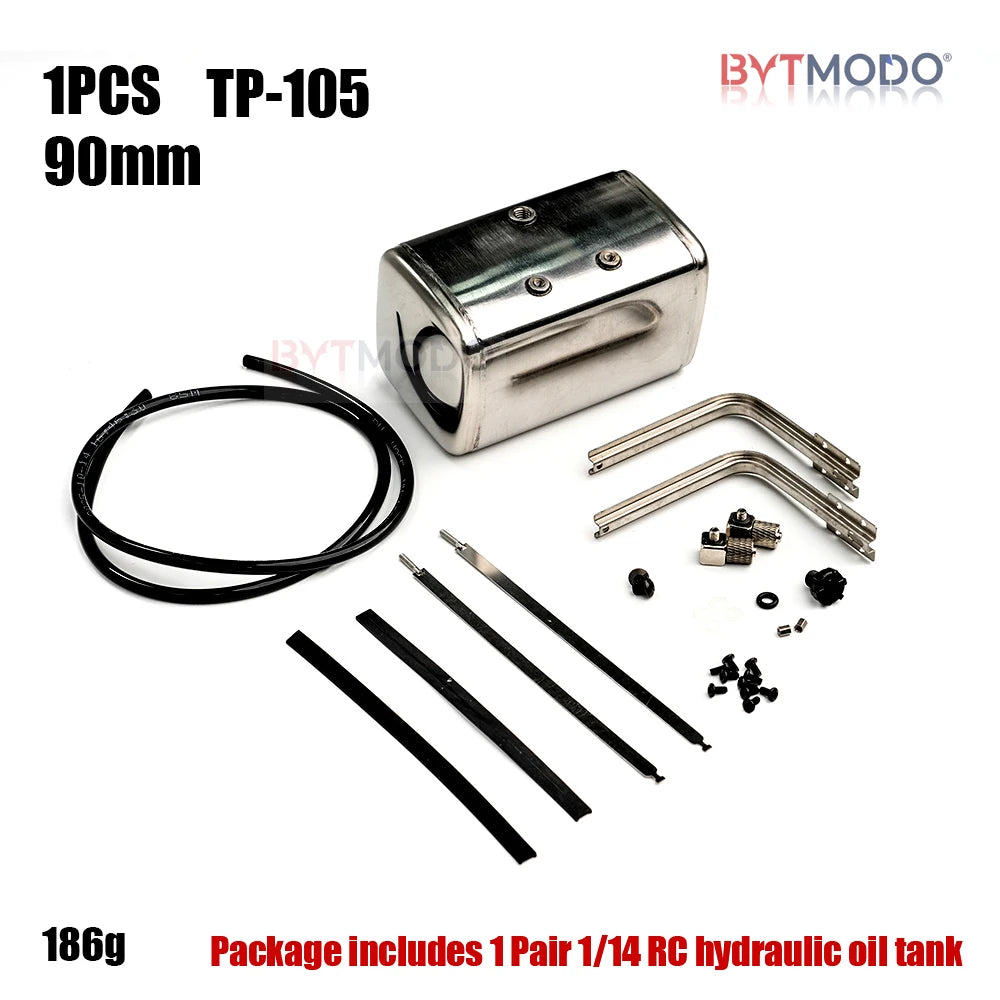

• Oil tank 65mm - TP-102 / 72mm - TP-103 / 85mm - TP-104 / 90mm - TP-105

• Brushless ESC 30A - TP-046

Sets (pump + cylinder + 72mm tank + 30A ESC, matched in one box):

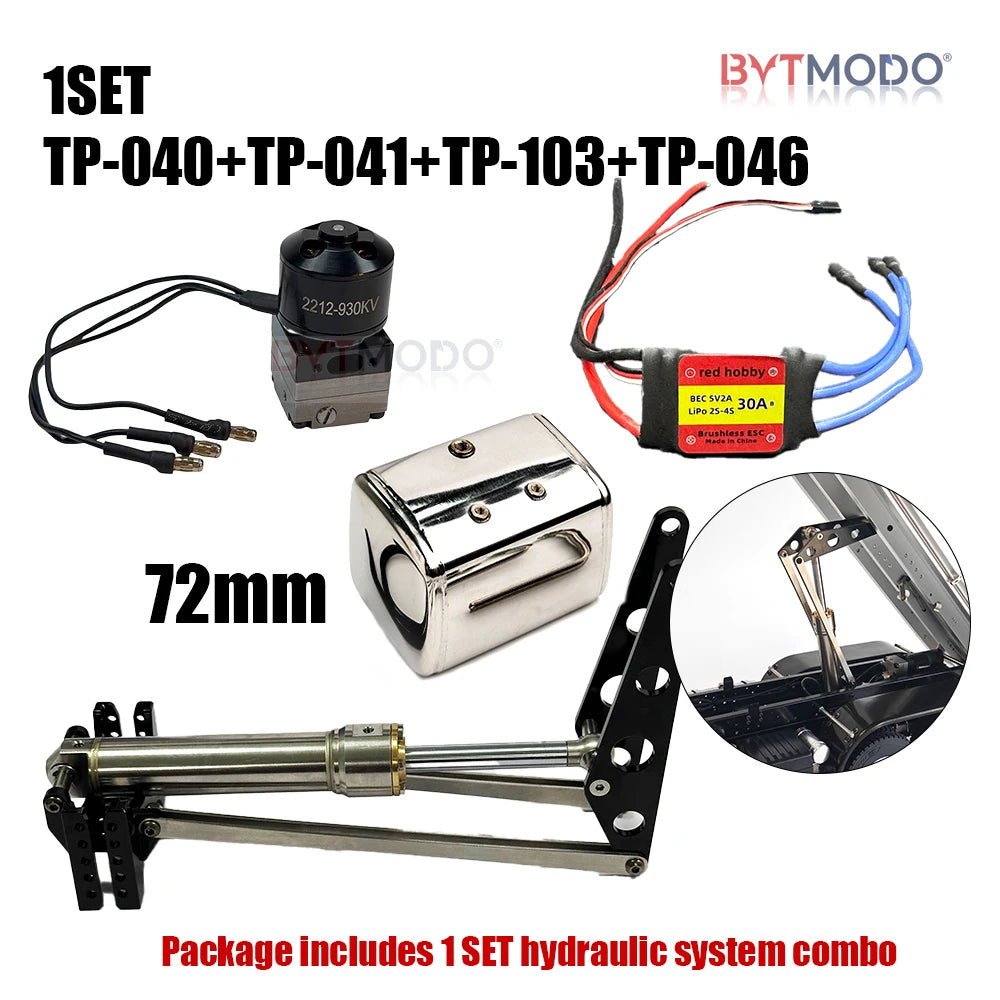

• Pump + F-Frame Cylinder + 72mm Tank + 30A ESC - TP-041 + TP-040 + TP-103 + TP-046

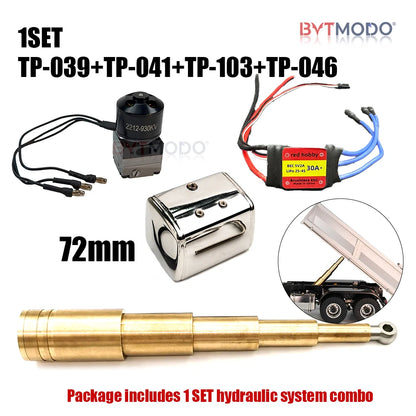

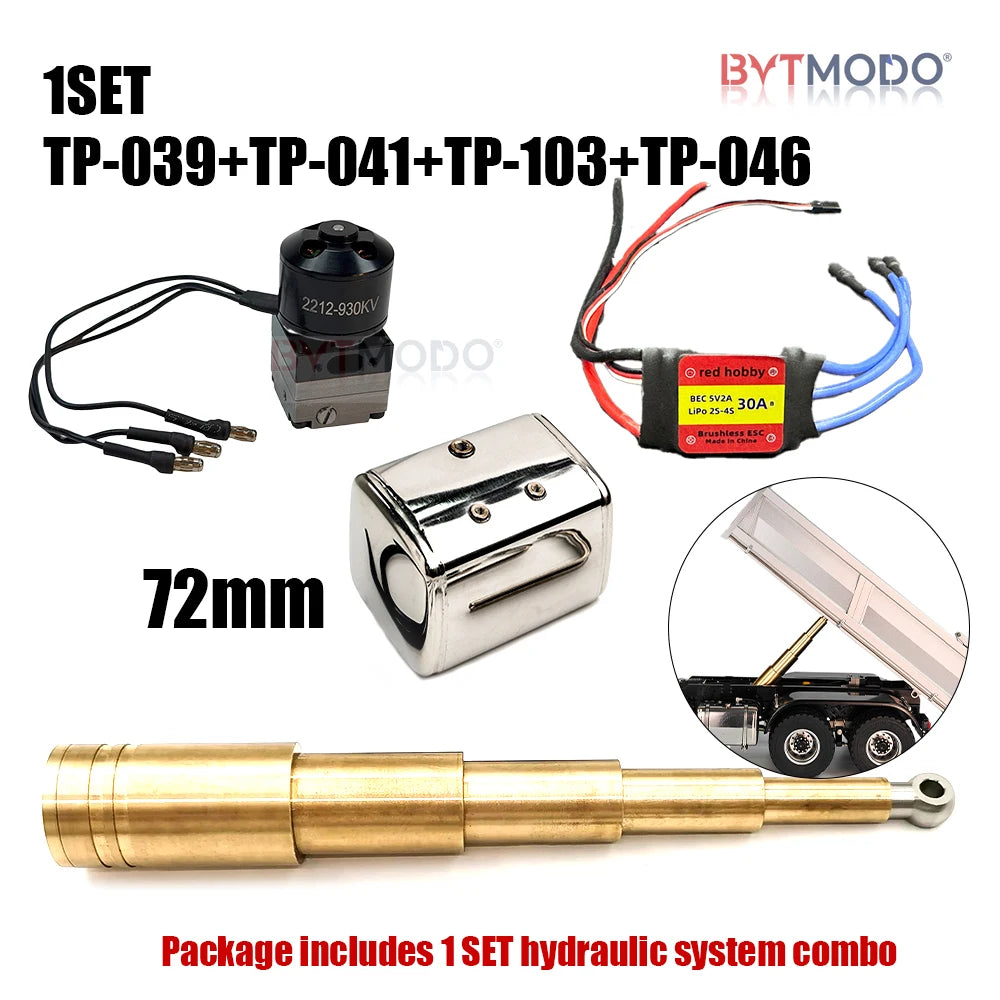

• Pump + Center Cylinder + 72mm Tank + 30A ESC - TP-041 + TP-039 + TP-103 + TP-046

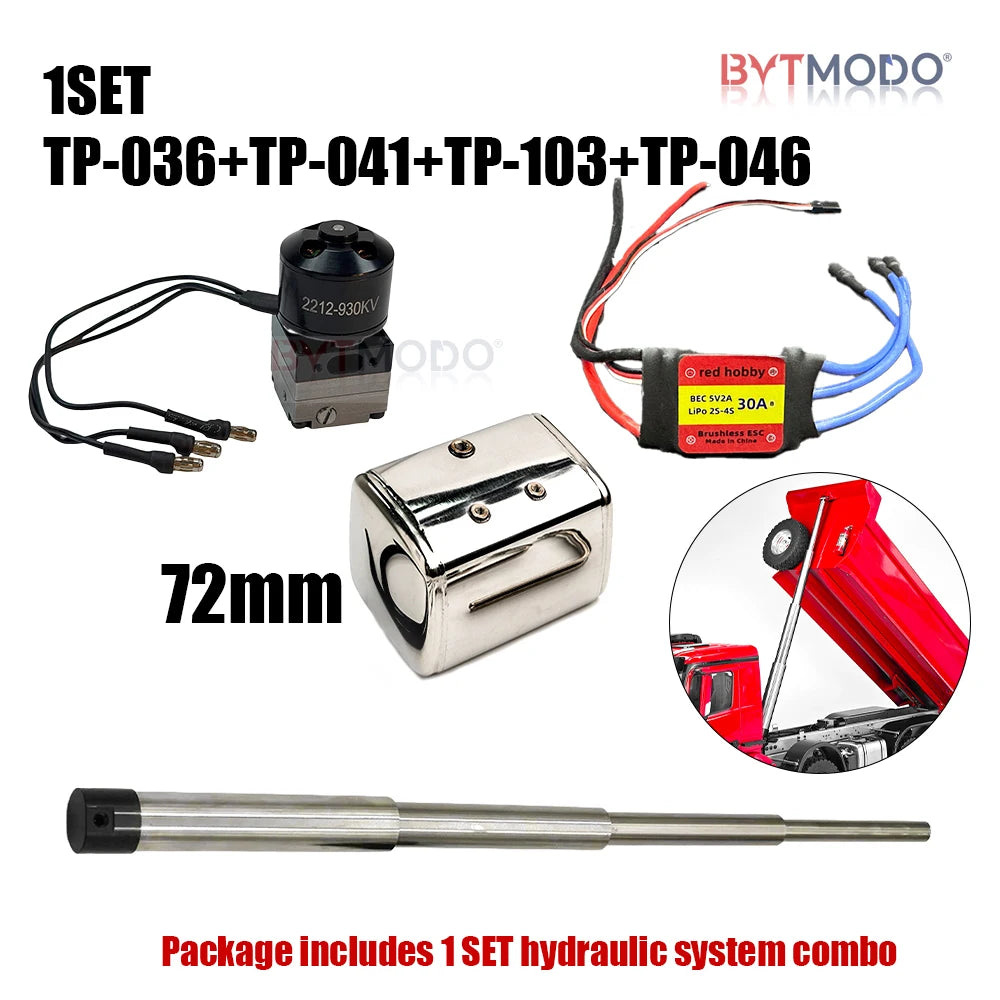

• Pump + 4-Stage Front Cylinder + 72mm Tank + 30A ESC - TP-041 + TP-036 + TP-103 + TP-046

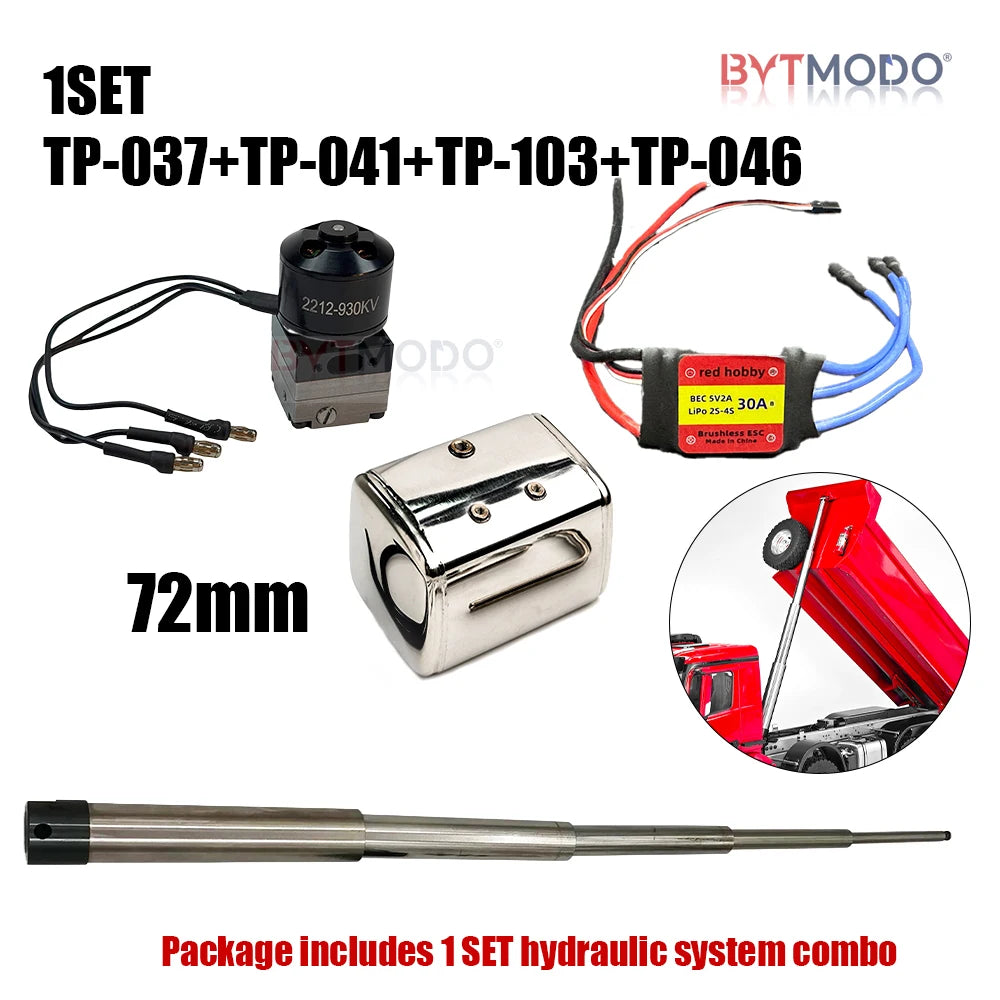

• Pump + 5-Stage Front Cylinder + 72mm Tank + 30A ESC - TP-041 + TP-037 + TP-103 + TP-046

Tank Size

Every set is supplied with the 72mm tank (TP-103, 162ml) as standard. If you need a different tank length - 65mm, 85mm or 90mm - please leave a note with your order or contact us before dispatch and we will send the size you need.

What's Included (we ship exactly what you order)

If you order a single-part SKU, you receive only that part:

• Pump (TP-041): 1 x brushless hydraulic pump (2212-930KV motor with integrated pump body, slotted bracket, oil fitting set)

• F-frame cylinder (TP-040): 1 x F-frame hydraulic cylinder assembly (F-frame + stainless linkage rods + laser-welded stainless cylinder) + 2 x mounting pins + accessory pack (mounting hardware and fittings)

• Center cylinder (TP-039): 1 x brass multi-stage telescopic center cylinder with ball-end mount, aluminum bracket and black hydraulic hose + mounting hardware set (oil nozzle, cross pin, circlips, screws)

• Front cylinder (TP-036 / TP-037): 1 x stainless steel telescopic front cylinder (4-stage or 5-stage, as selected) with mounting bracket + mounting hardware set (oil nozzle, screws)

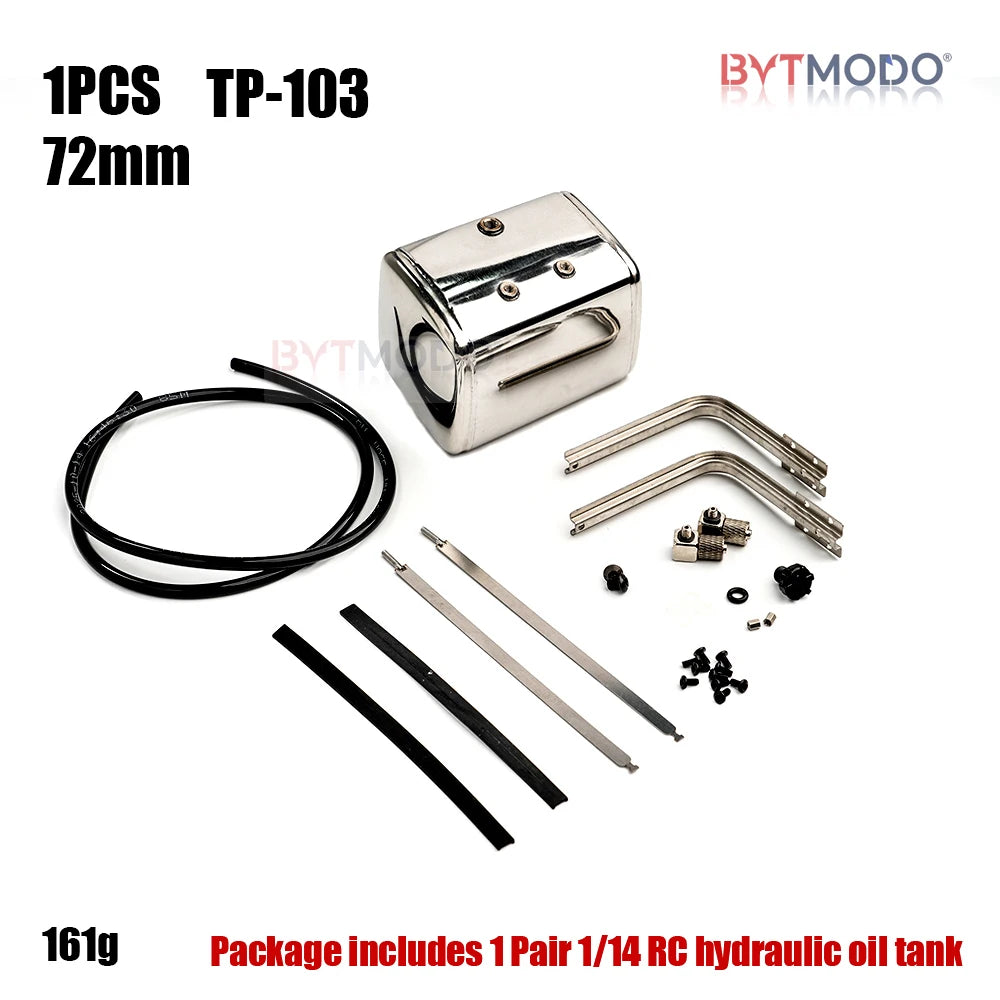

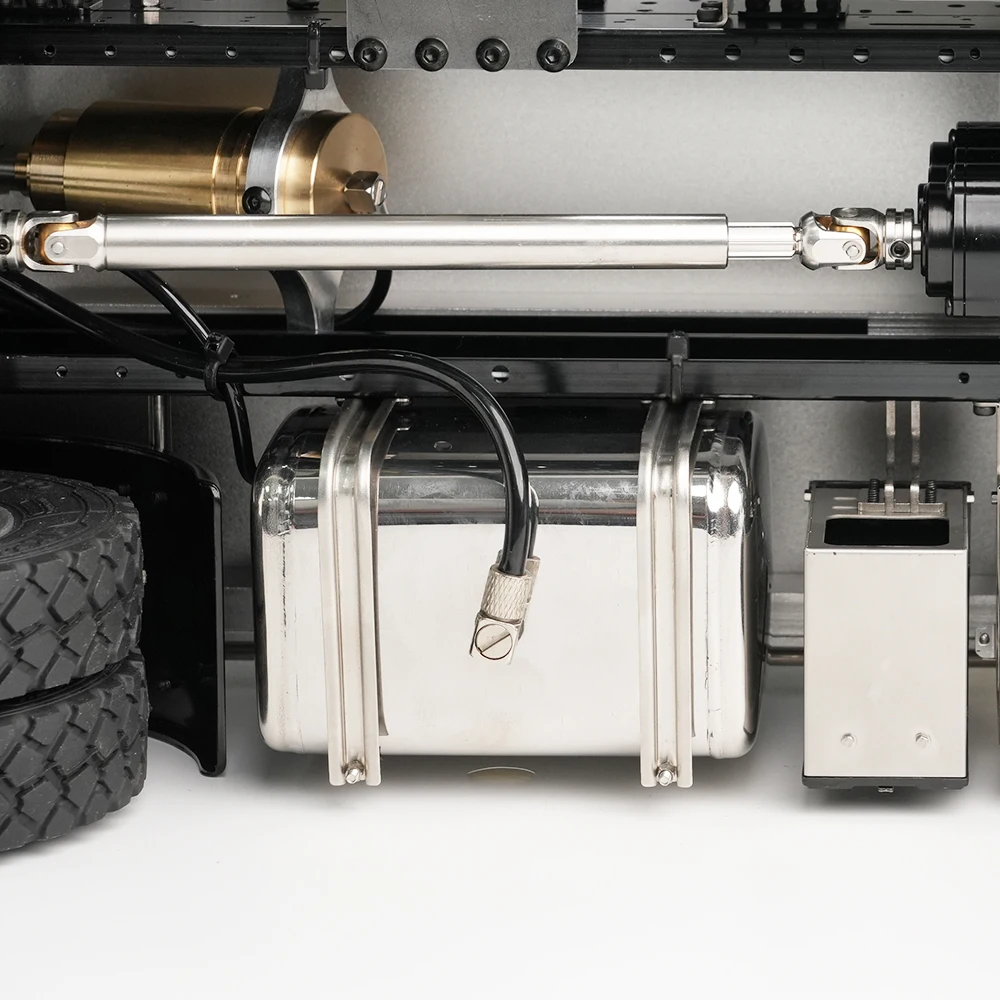

• Oil tank (TP-102 / TP-103 / TP-104 / TP-105): 1 x polished stainless steel hydraulic tank with black cap, hose, 2 x L-brackets, 2 x metal fittings and hardware

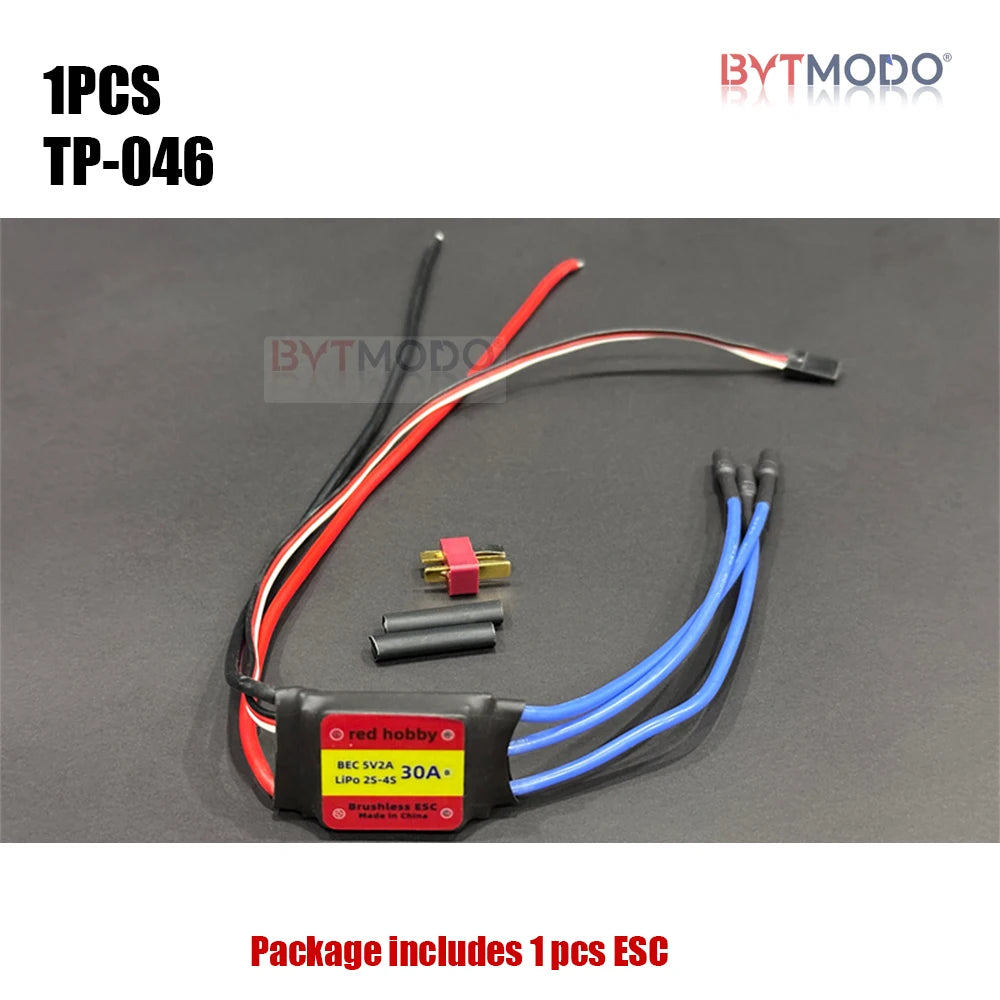

• 30A ESC (TP-046): 1 x brushless ESC with pre-fitted power lead and 3 x motor leads

If you order a set, you receive pump + your chosen cylinder + 72mm tank (TP-103) + 30A ESC (TP-046). The parts are identical to the single-part entries above - only the cylinder (and its own hardware) differs by set:

• Set 1 - F-Frame: 1 x F-frame hydraulic cylinder assembly (F-frame + stainless linkage rods + laser-welded stainless cylinder) + 2 x mounting pins + accessory pack

• Set 2 - Center: 1 x brass multi-stage telescopic center cylinder with ball-end mount, aluminum bracket and black hydraulic hose + mounting hardware set (nozzle, cross pin, circlips, screws)

• Set 3 / 4 - Front 4-stage (TP-036) / 5-stage (TP-037): 1 x stainless steel telescopic front cylinder with mounting bracket + mounting hardware set (nozzle, screws)

Hydraulic oil and battery are NOT included in any variant. A brushless ESC is required to run the pump - every set includes one. If you buy the pump as a single part, add a 30A ESC separately (also sold on its own). Trucks, beds, tires and other parts shown in the photos are for display only and are not included.



Compatibility

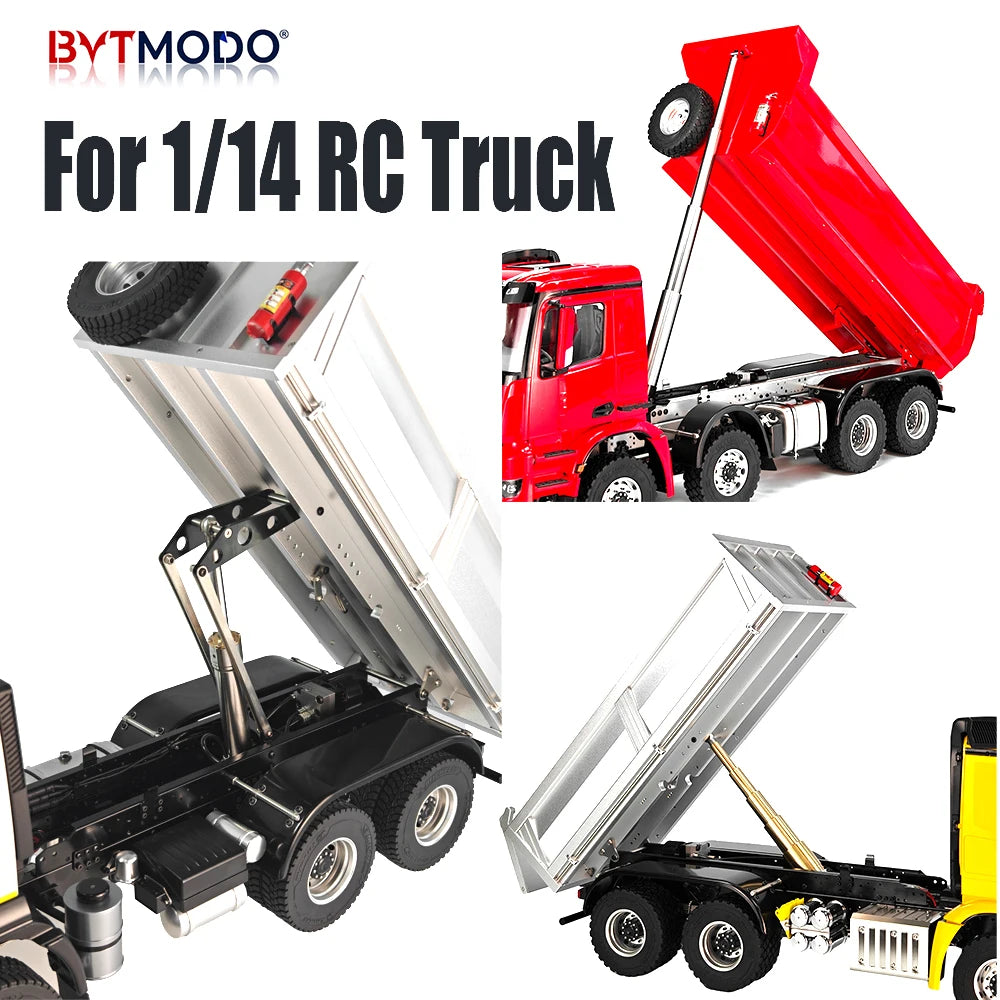

Designed for 1/14 scale hydraulic dump trucks, tippers and tractor trucks, for Tamiya 1/14 chassis and similar third-party builds. Fits models such as Mercedes-Benz Actros 3363, Scania 770S, Volvo FH16 750, MAN TGX and IVECO dump trucks.

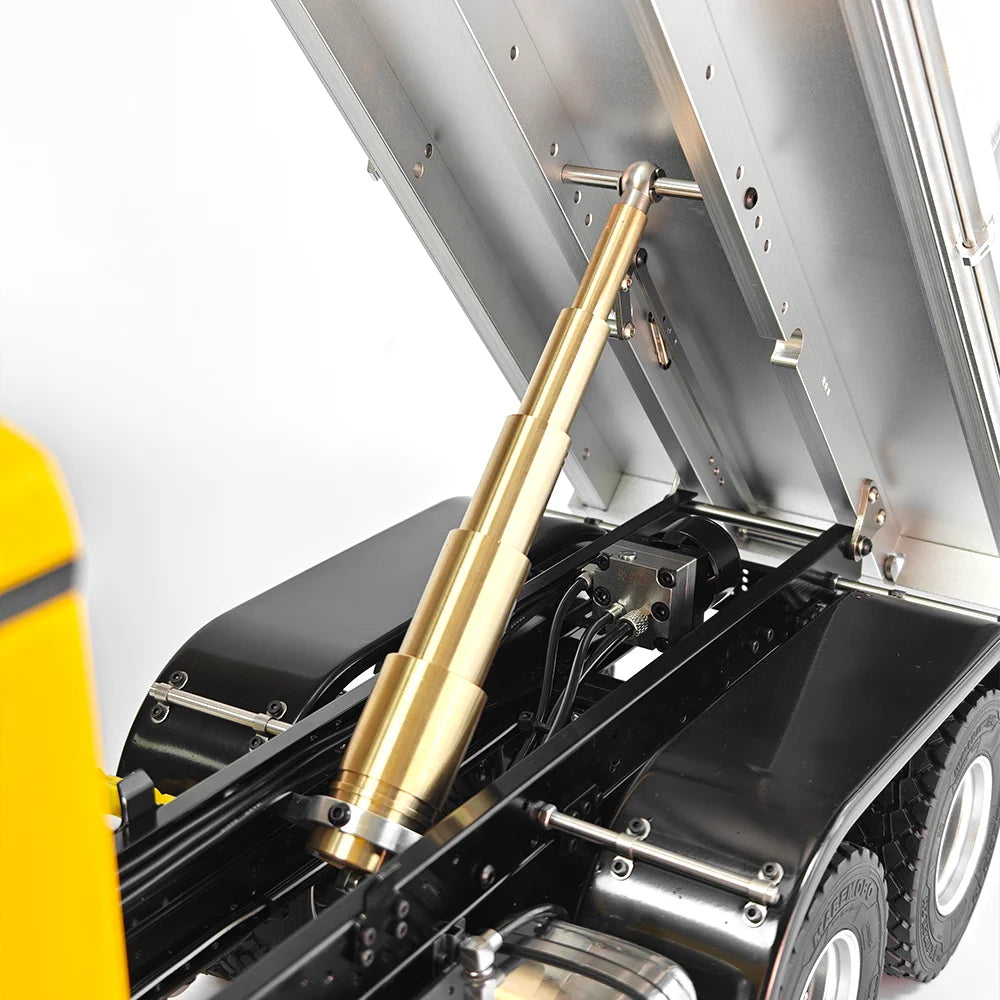

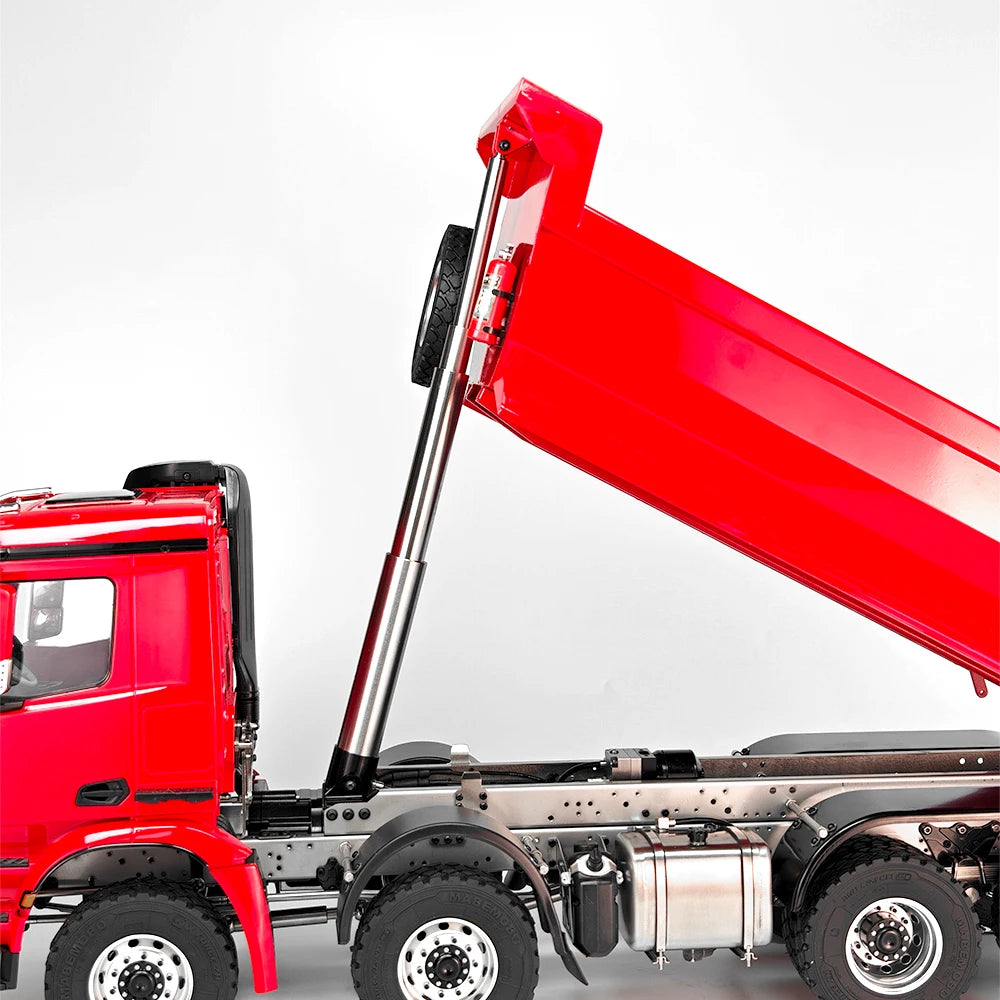

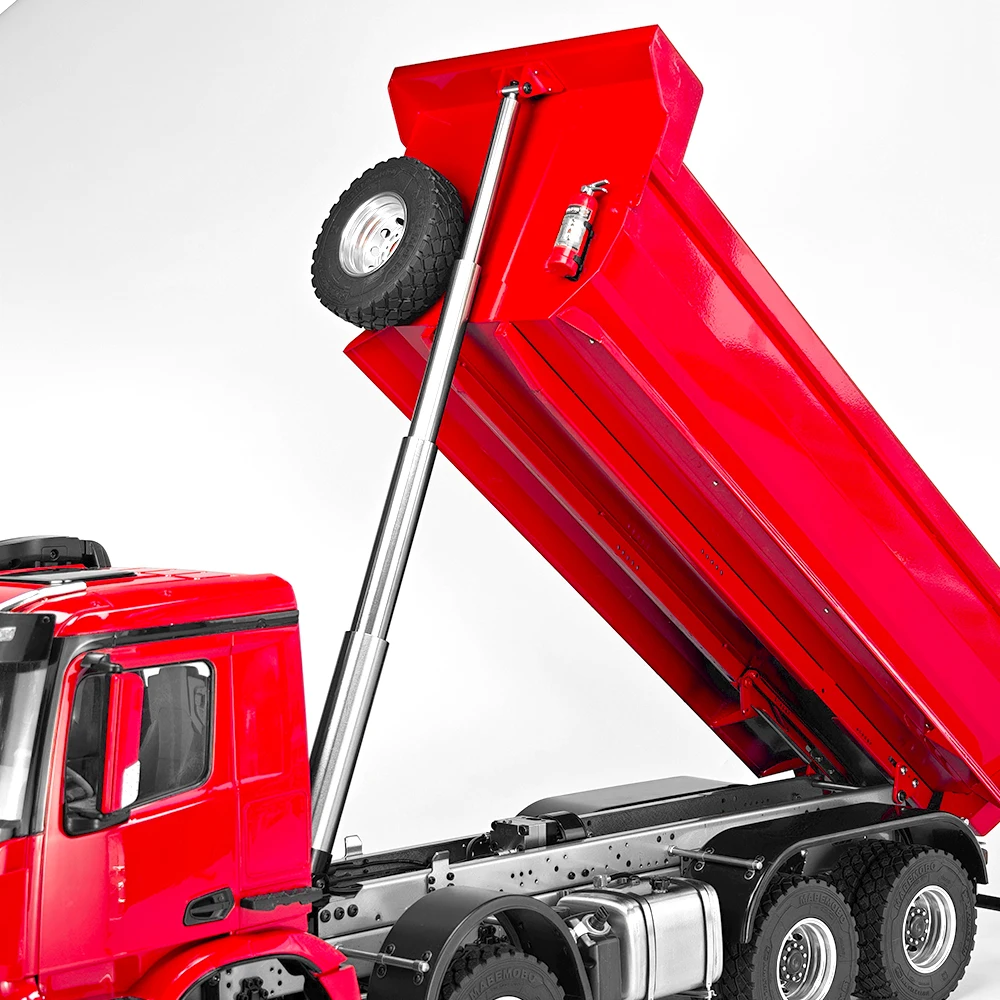

Choose the cylinder by layout: F-frame (TP-040) for a replacement lifting linkage, center mount (TP-039) for 6x6 tippers lifting from the middle of the bed, front mount 4-stage (TP-036, extends to 410mm) or 5-stage (TP-037, extends to 460mm) - front cylinders are recommended for 8x8 builds and also fit 6x6 trucks. The system runs on a 2S LiPo pack (7.4V).
Please check your chassis space, your mounting position and the hose length you need before ordering.

Specifications

Scale: 1/14

Pump (TP-041):
Type: integrated hydraulic pump with brushless motor
Motor: 2212-930KV brushless outrunner
Operating voltage: 2S LiPo (7.4V)
Pump body: aluminum alloy
Mounting: slotted L-bracket included
Brushless ESC: 30A or above required

Cylinders:

SKU	Type	Material	Stroke	Load capacity	Weight
TP-040	F-frame cylinder assembly	Stainless steel cylinder (laser-welded) + stainless linkage rods + CNC aluminum frame	extra-long stroke	30kg+ (66lb)	279g
TP-039	Center-mounted telescopic cylinder	Brass cylinder + aluminum alloy bracket	multi-stage	30kg+ (66lb)	192g (incl. hardware)
TP-036	Front-mounted 4-stage cylinder	Stainless steel	125mm retracted / 410mm extended	-	229g
TP-037	Front-mounted 5-stage cylinder	Stainless steel	125mm retracted / 460mm extended	-	252g

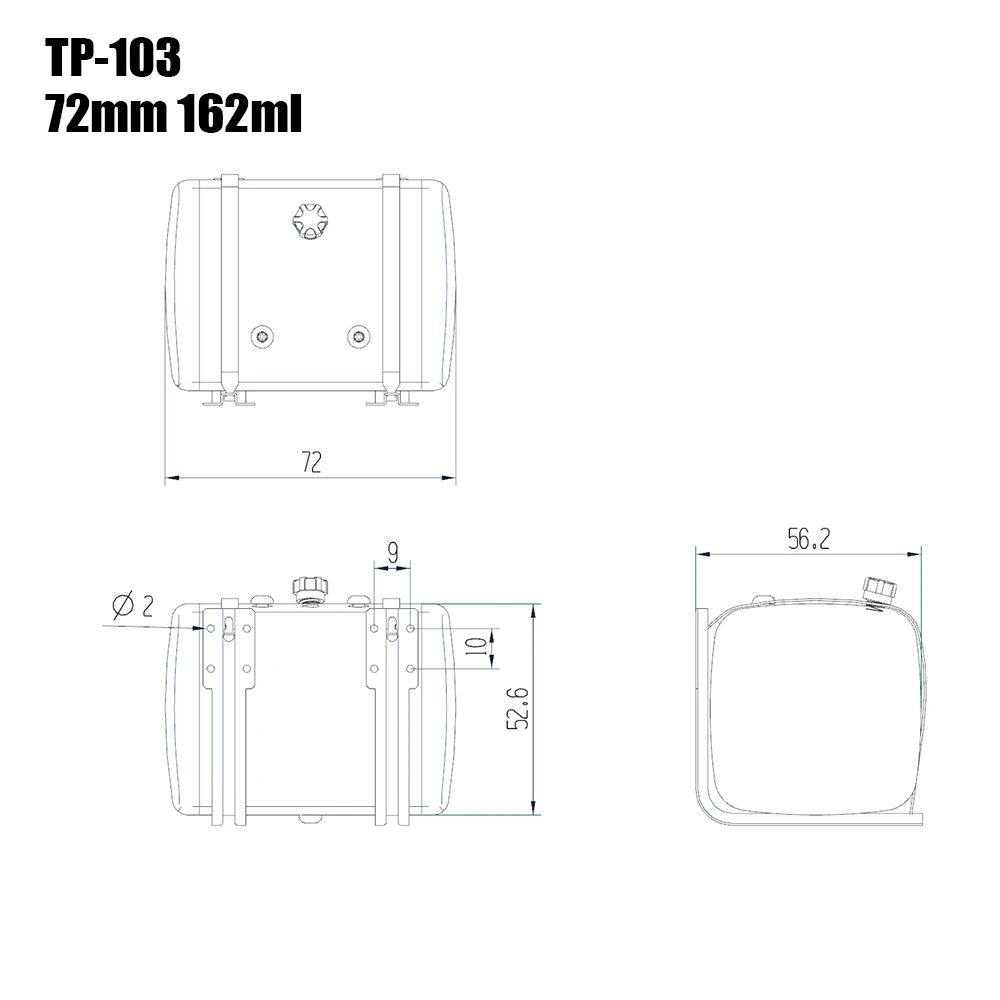

Tank - 72mm (TP-103) supplied as standard with every set:

SKU	Length	Width	Height	Capacity	Weight (set, incl. hardware)
TP-103	72mm	56.2mm	52.6mm	162ml	161g

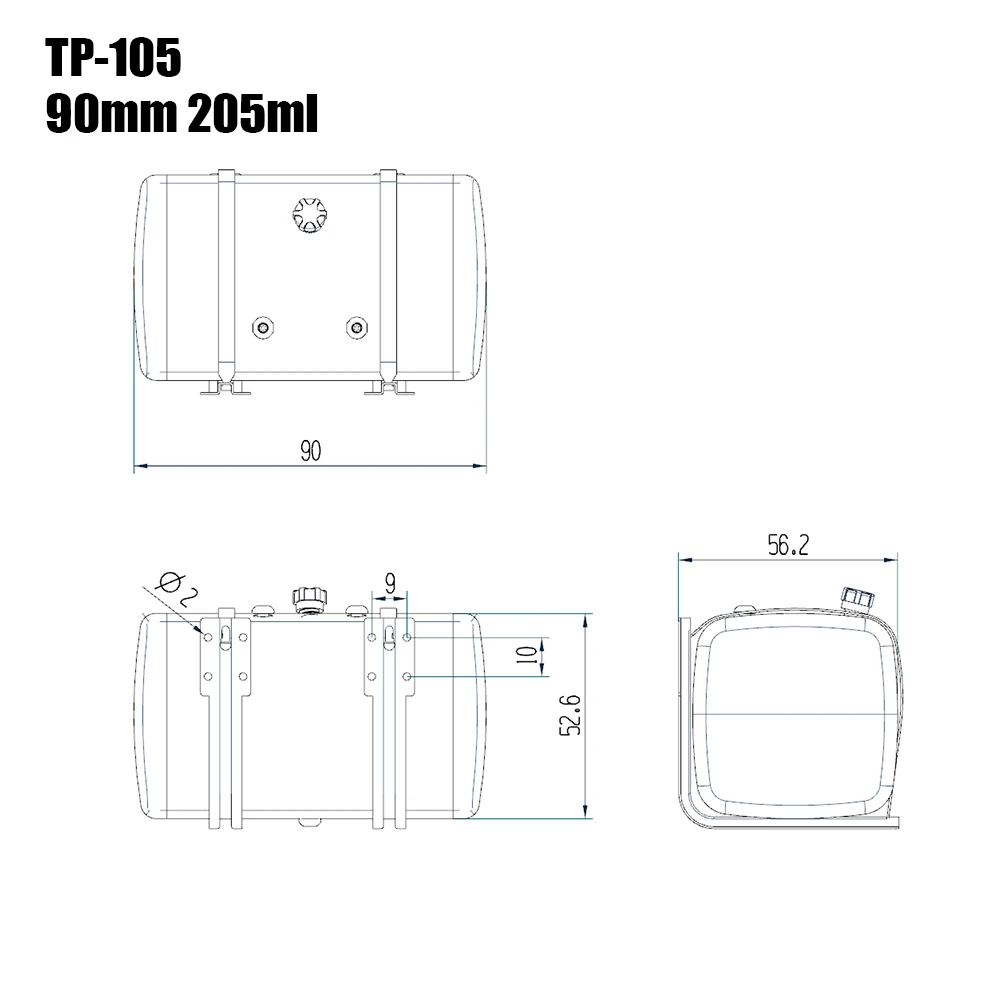

Other tank lengths available on request: TP-102 65mm (147ml), TP-104 85mm (193ml), TP-105 90mm (205ml).
Tank material: polished stainless steel, with 2 pre-installed metal hydraulic ports and black cap.

ESC (TP-046):
Type: brushless ESC
Continuous current: 30A
Battery: 2S-3S
LiPo Connector: T-plug (Deans-style T-connector) on the battery lead as standard - buyer may cut and fit another plug to suit their own battery
Leads: pre-fitted power lead and 3 x motor leads with 3.5mm bullet connectors

Quantity: 1 set per package (or 1 component per package for single SKUs).

Setup Notes

Air must be bled from a new hydraulic circuit before it works properly - fill the tank with more oil than the cylinder's capacity, make sure every fitting is leak-free, then raise and lower the bed repeatedly until the cylinder moves smoothly (on our sample tests this takes about 20-25 cycles).

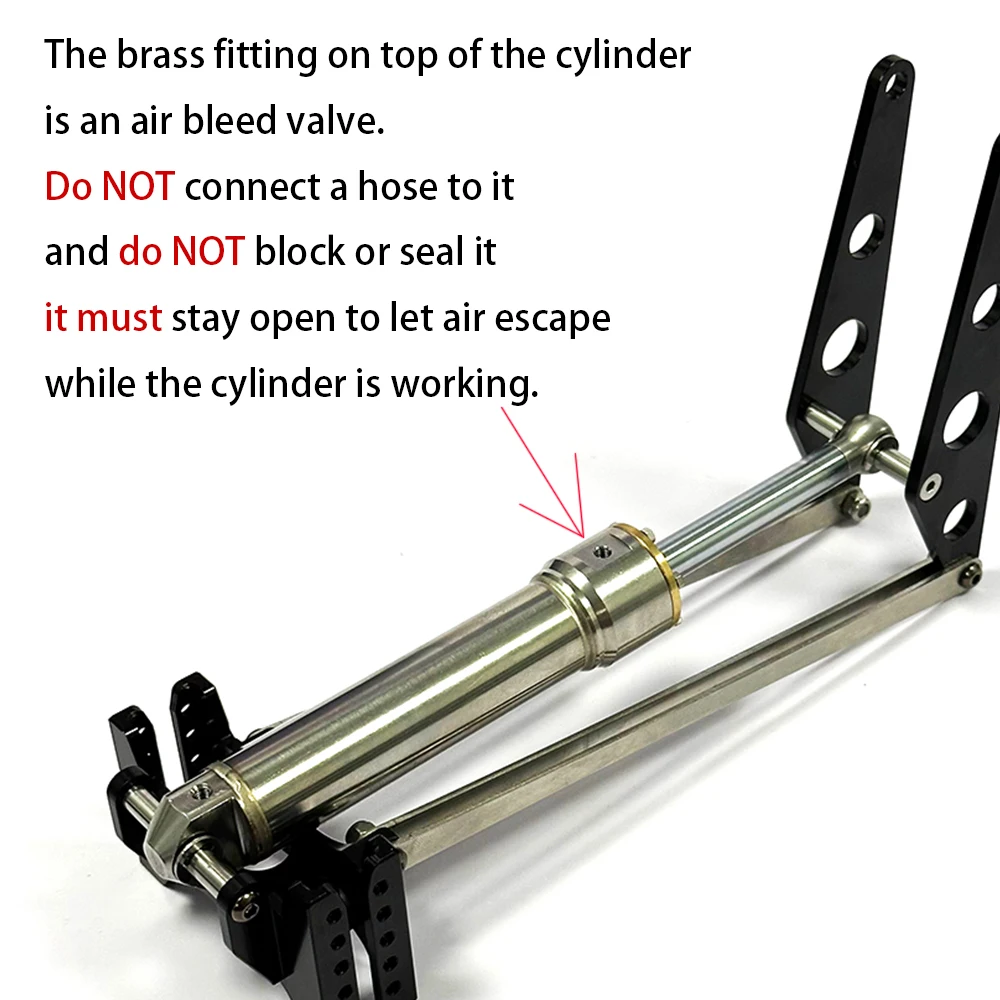

On the F-frame cylinder (TP-040) the brass fitting on top is an air bleed valve - do not connect a hose to it and do not block or seal it, it must stay open to let air escape.
Do not run the pump dry - fill the tank and prime the system before the first run. Check that all hose fittings are tight before each run.

Note

The pump must be driven by a brushless ESC - it will not run from a receiver directly. Use a 2S LiPo only; a 30A ESC or above is required (included in every set, also sold separately). Hydraulic oil is not included. Please check the mounting space on your chassis before ordering. Trucks, beds and other parts shown in the photos are for display only and are not included. This is not an official Tamiya, Mercedes-Benz, Scania, Volvo, MAN or IVECO product. All brand and model names mentioned are for compatibility description only.

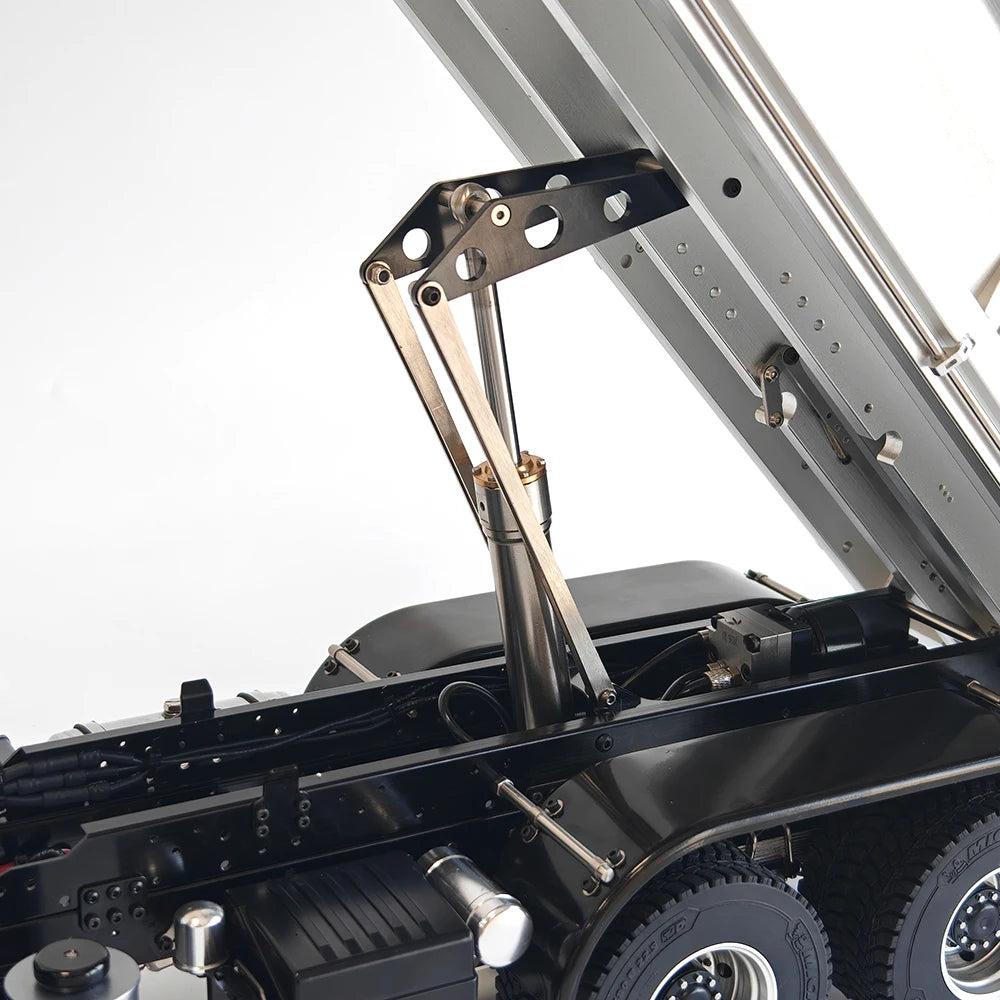

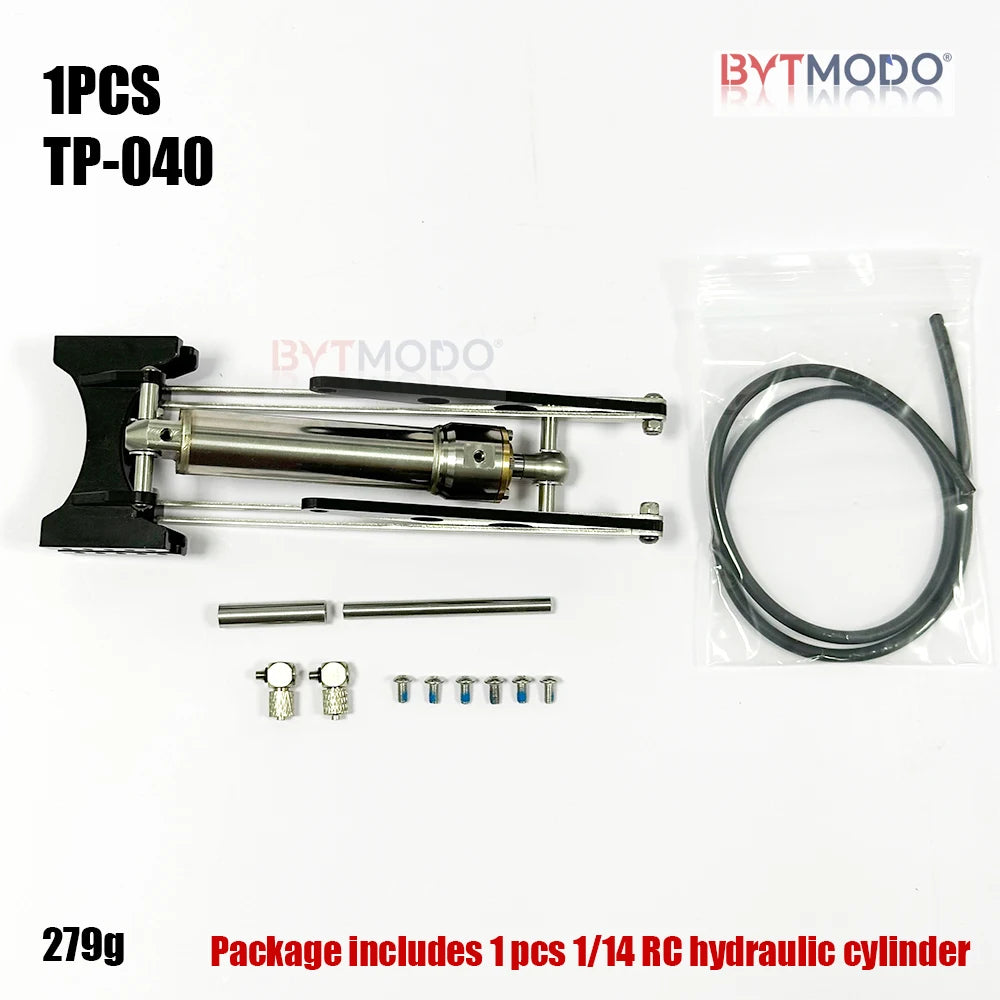

TP-040 F-frame cylinder assembly

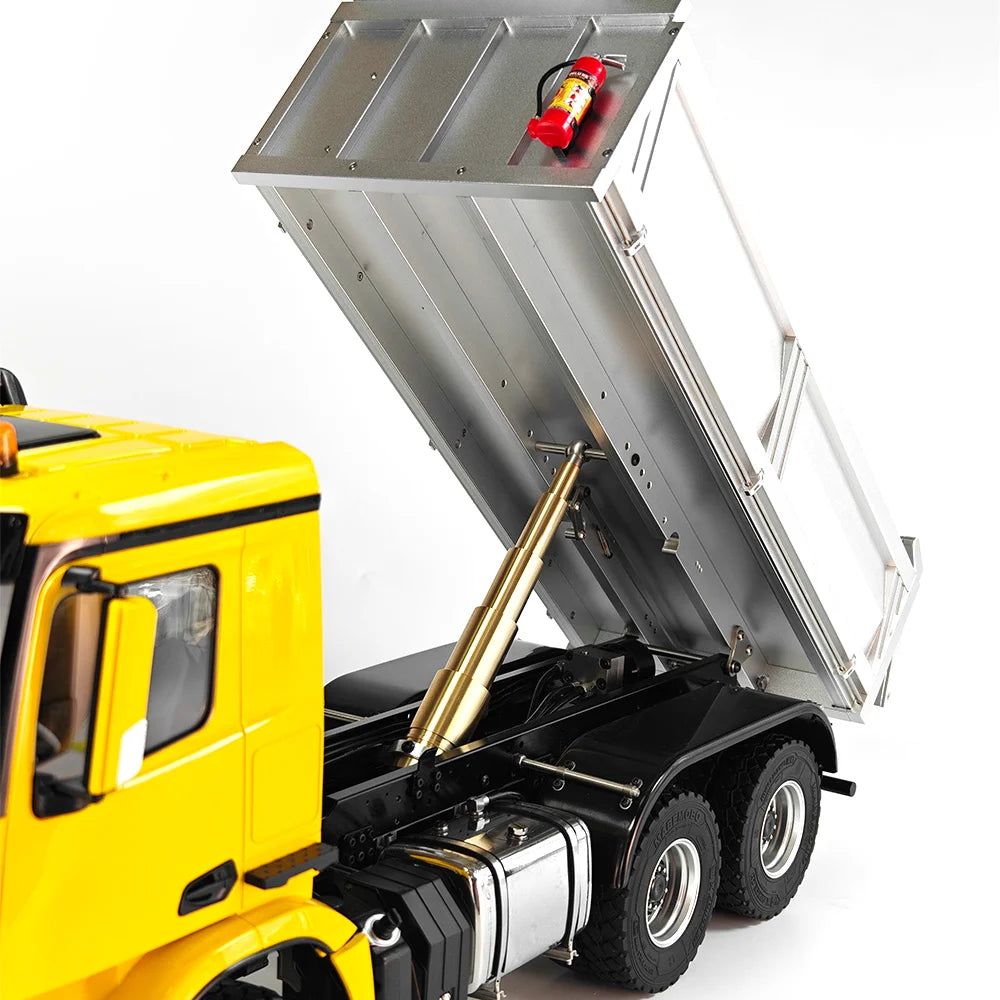

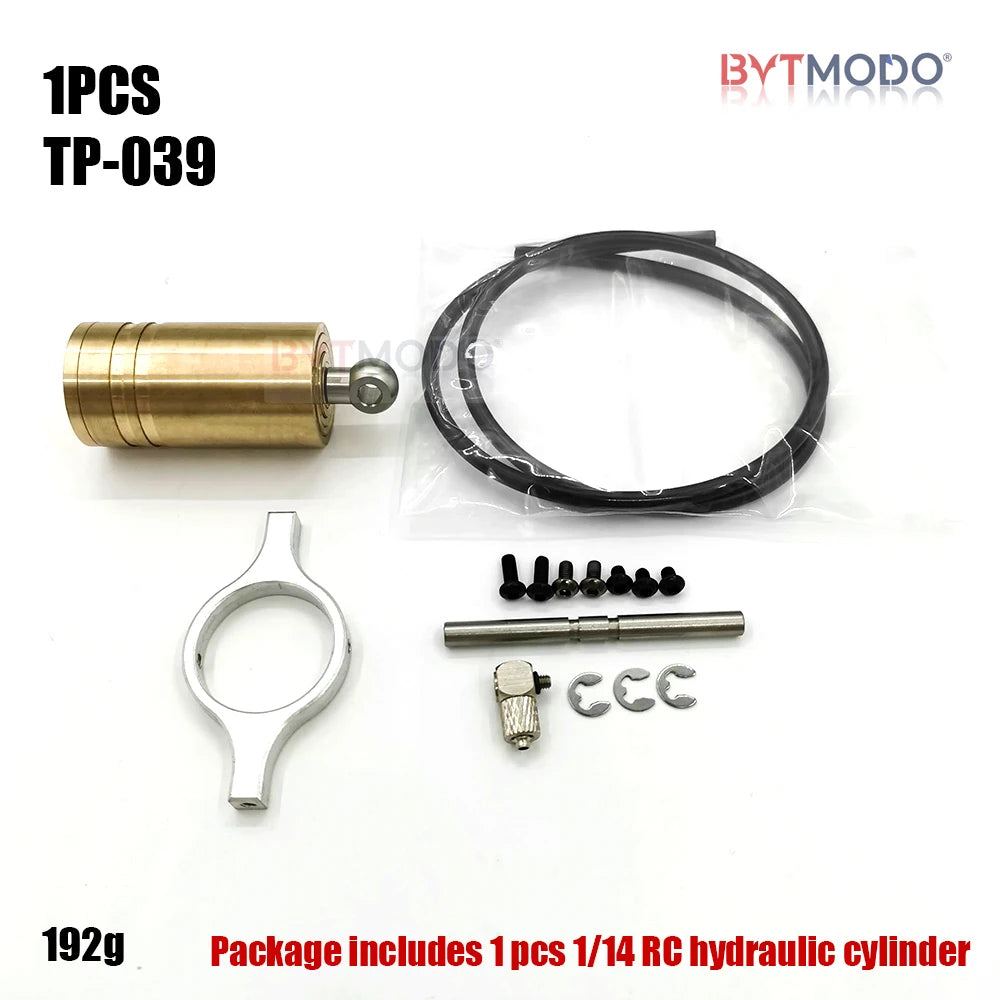

TP-039 Center-mounted telescopic cylinder

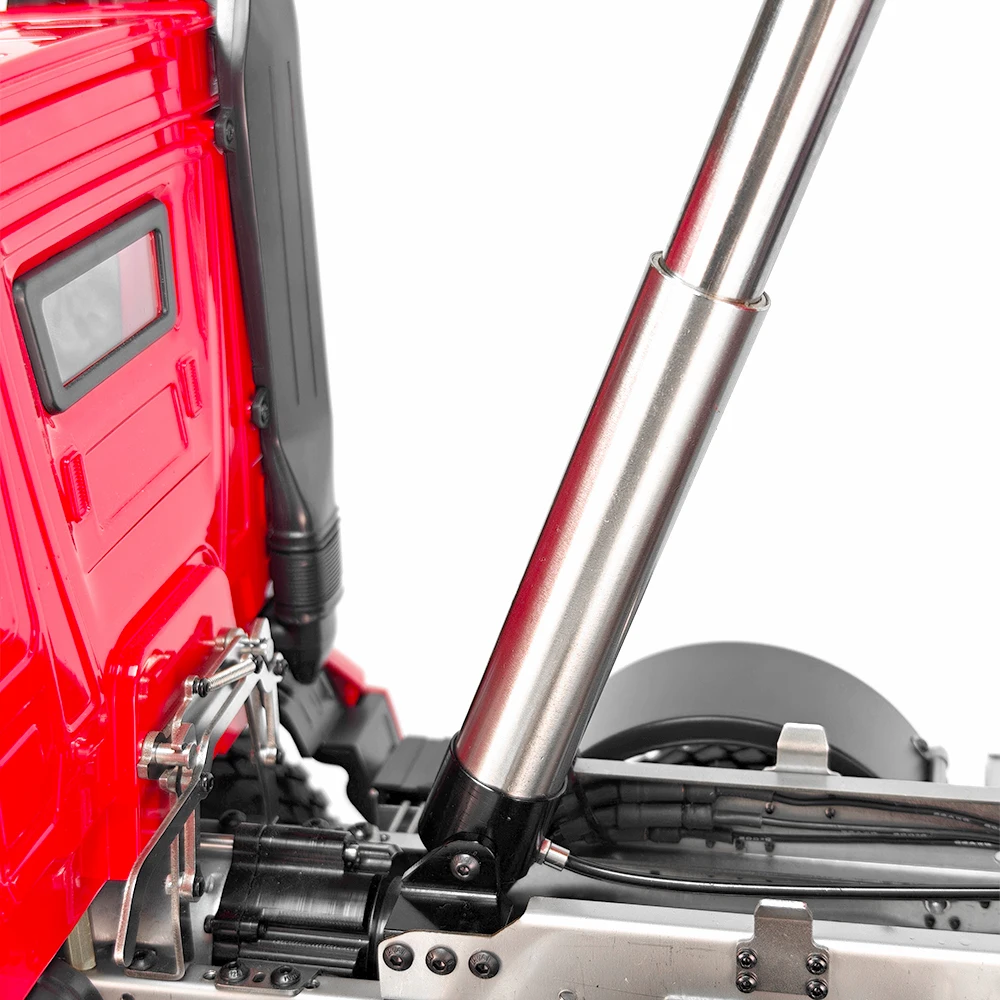

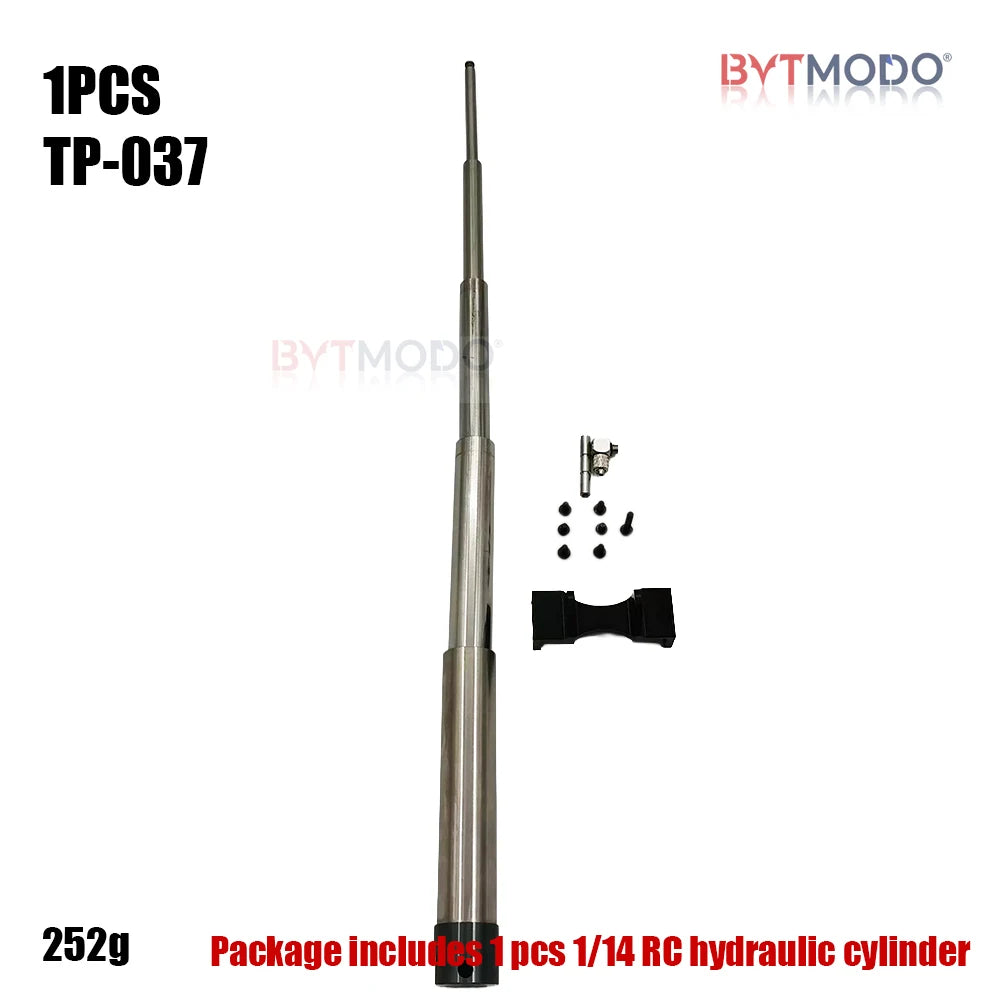

TP-036/TP-037 Front-mounted 4-stage cylinder/ 5-stage cylinder

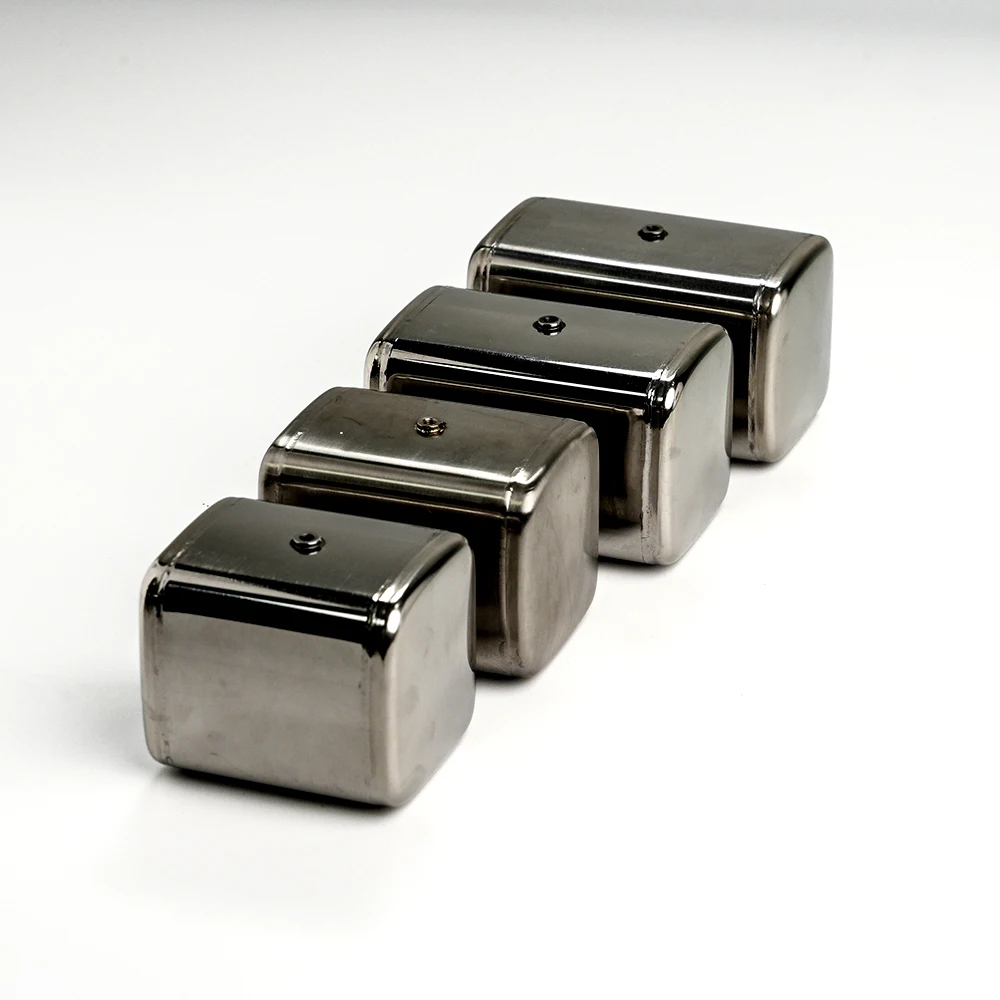

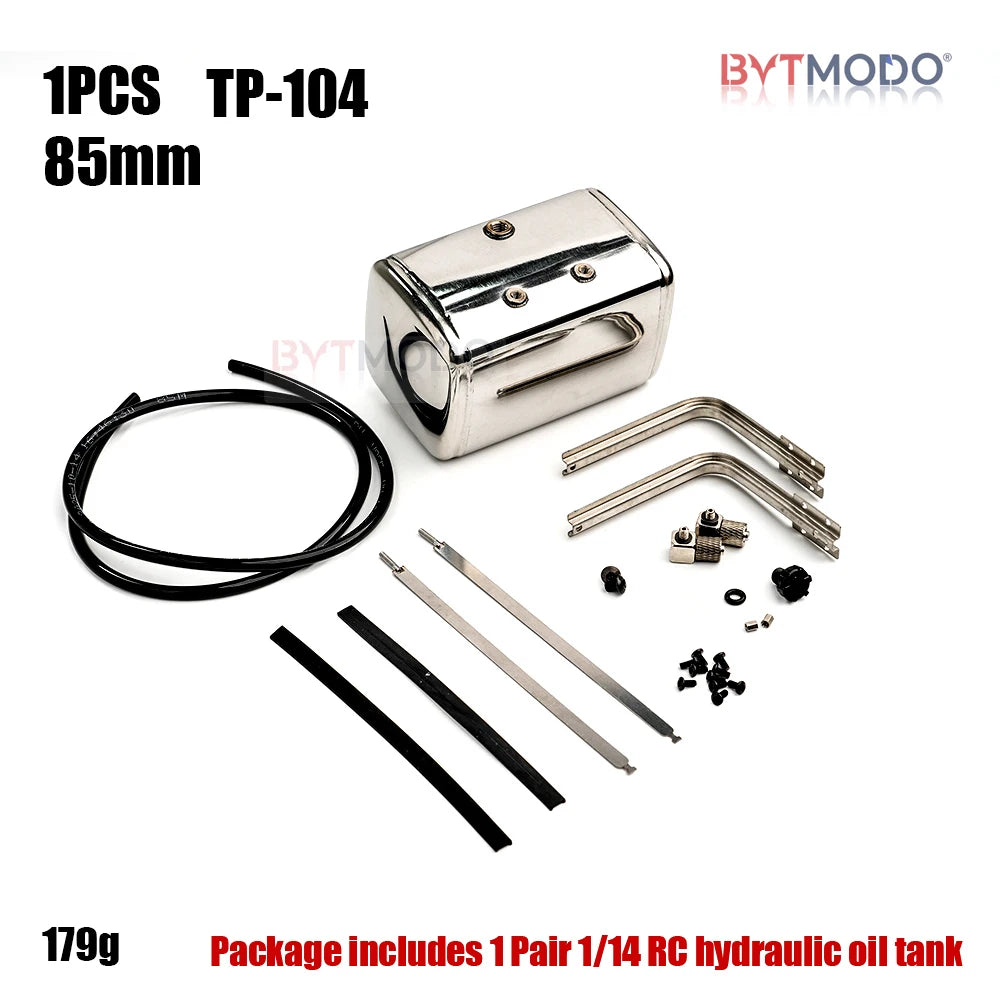

TP-102/TP-103/TP-104/TP-105 Oil tank

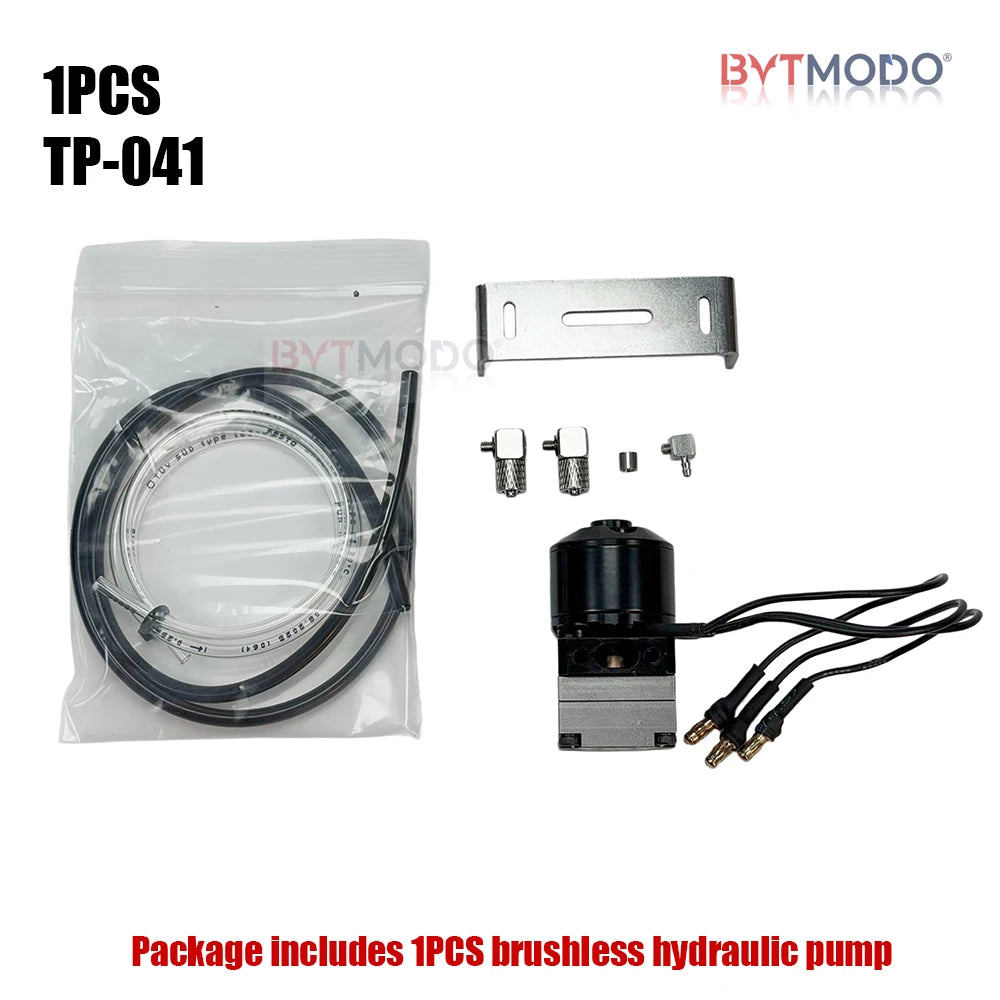

TP-041/TP-046 Pump/ESC
