Rc Hydraulic Cylinder Ram F Frame Hydraulic System for 1/14 Tamiya RC Truck Dump Tractor Actros 3363 Scania 770S Volvo 750 IVECO

**Product Description**

Replace your stock ram with this F-frame hydraulic cylinder assembly and give your 1/14 dump bed a longer stroke and a higher tipping angle.
The laser-welded stainless cylinder pairs with CNC-machined aluminum linkage, lifting a fully loaded bed of over 30kg (66lb) with ease.
It fits 1/14 hydraulic dump trucks including Actros 3363, Scania 770S, Volvo 750, MAN TGX and IVECO - hydraulic pump not included.

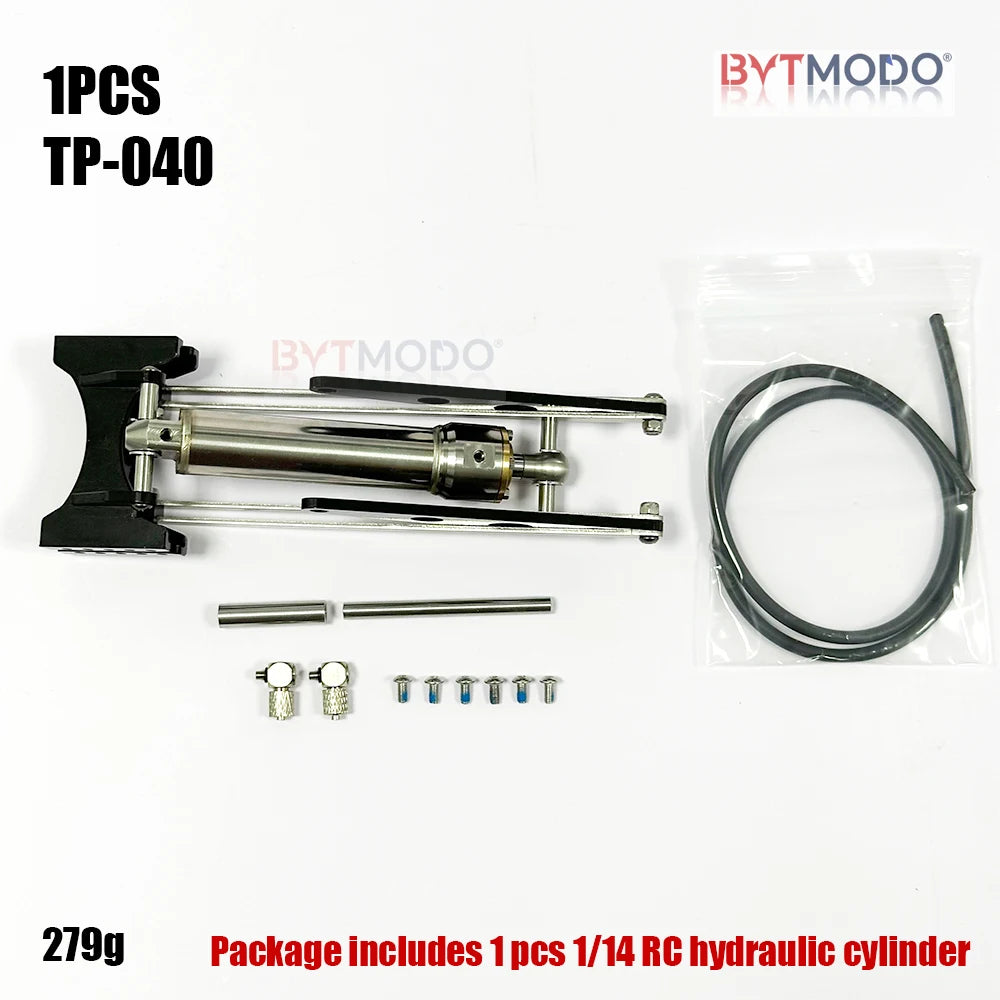

**What's Included**

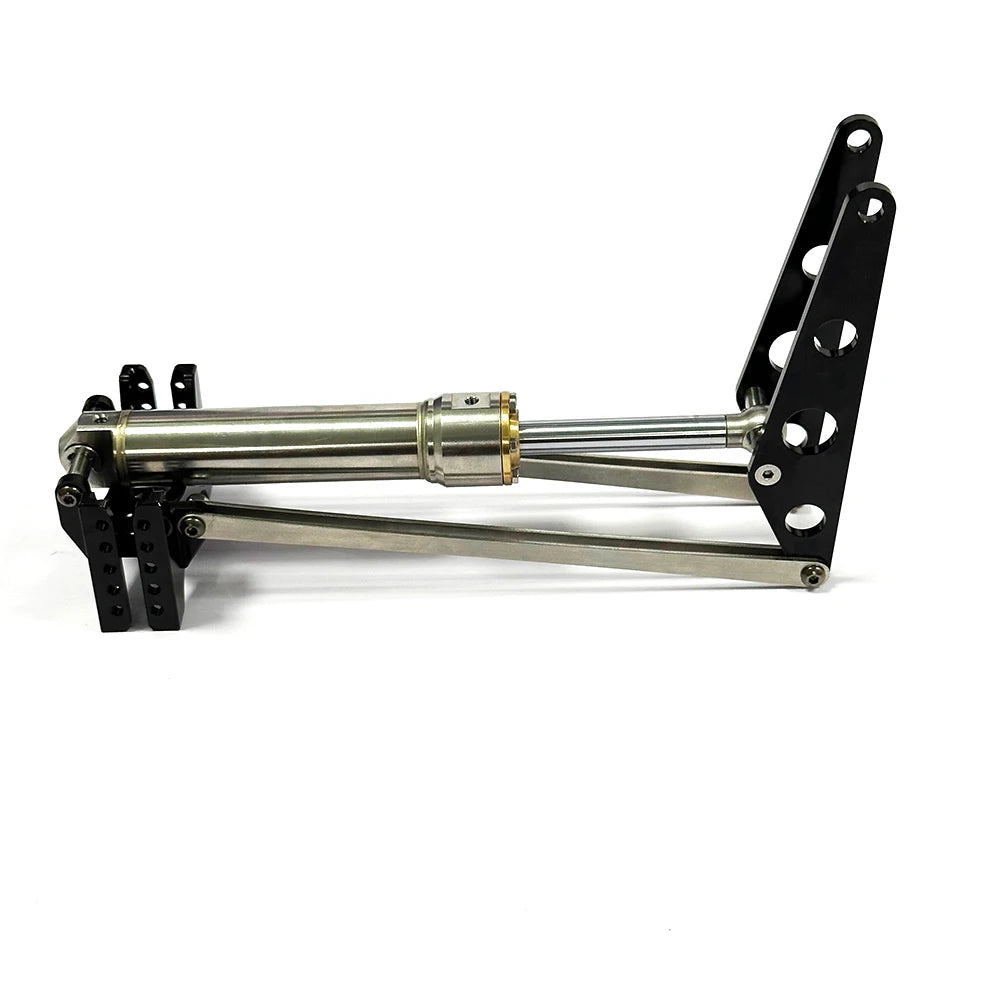

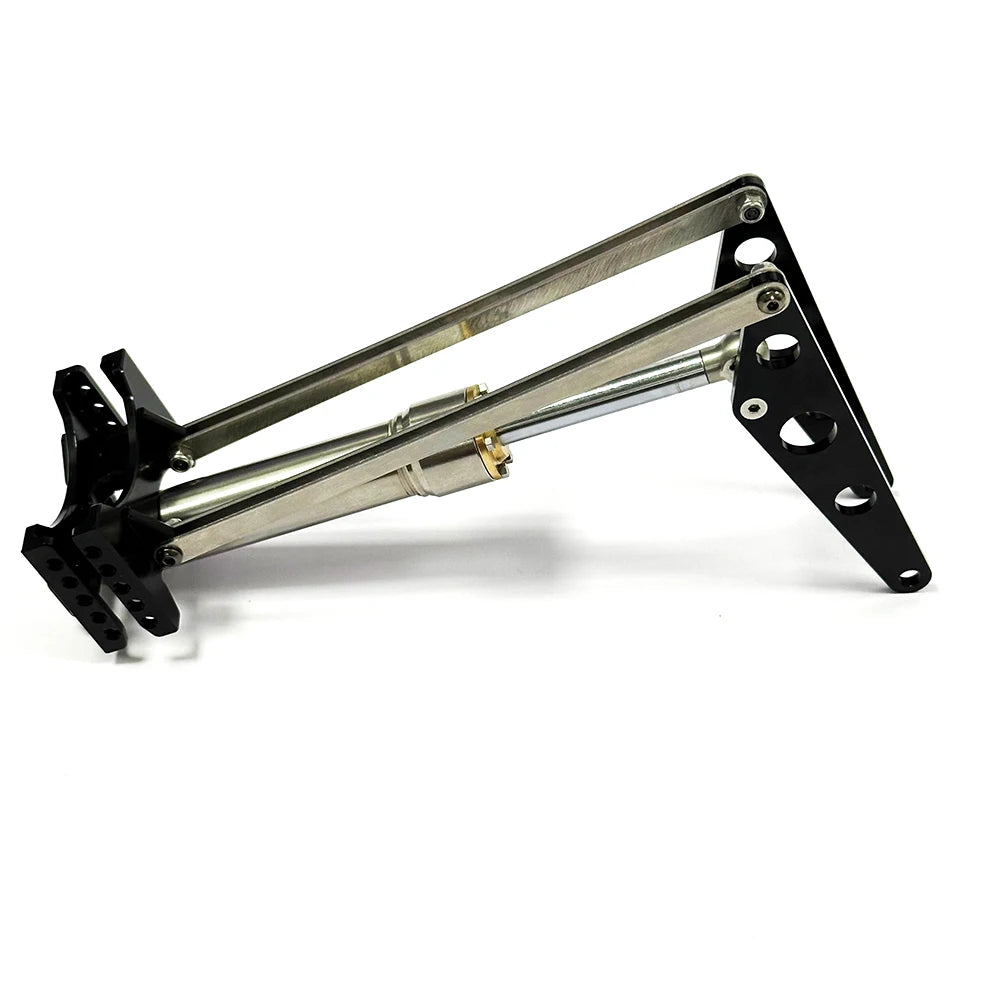

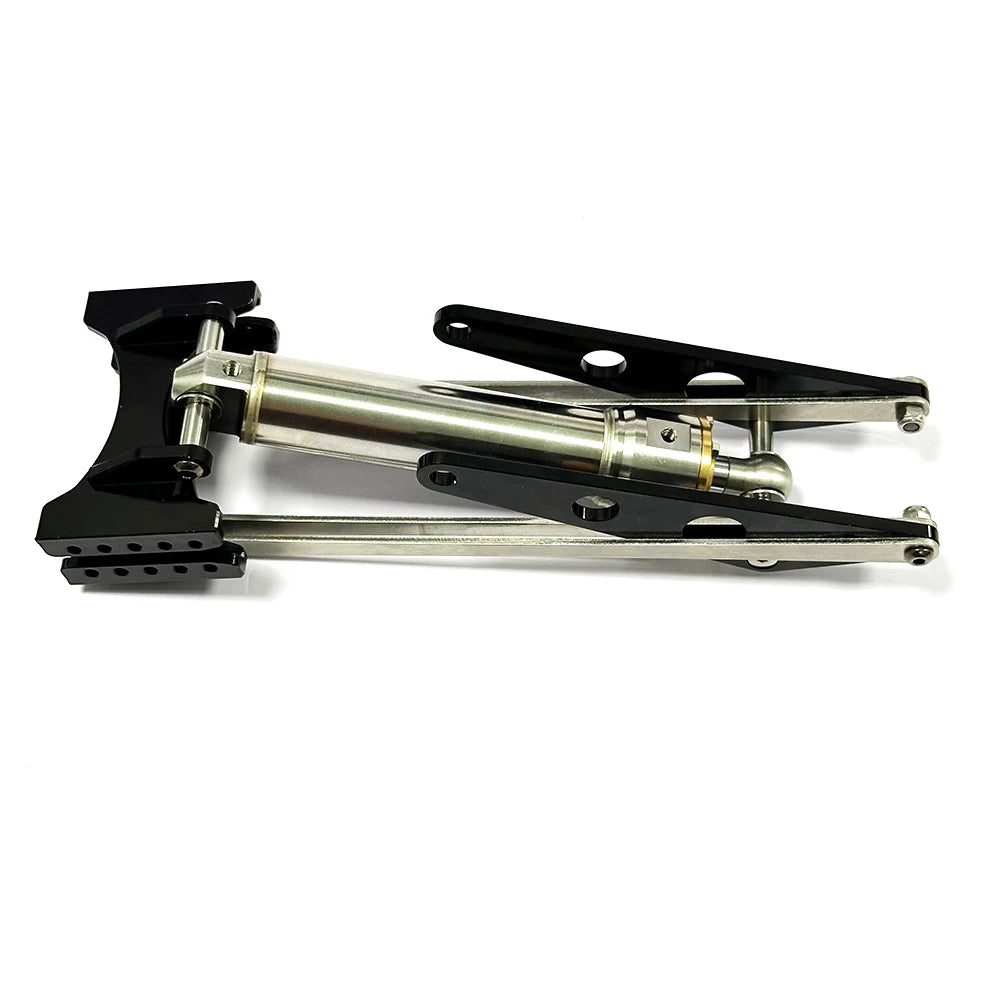

1 x F-frame hydraulic cylinder assembly (F-frame + linkage rods + cylinder)
2 x mounting pins
1 x accessory pack with mounting hardware and fittings

Hydraulic pump and oil are NOT included. Trucks and other parts shown in photos are for display only and are not included.

**Key Features**

● Laser-welded stainless steel cylinder - clean, strong seams built to hold pressure without leaking
● F-frame linkage with extra-long stroke - lifts the bed to a higher tipping angle than straight rams
● Real carrying capacity - raises a fully loaded bed of over 30kg (66lb) with ease
● Stainless cylinder and linkage rods with a CNC-machined aluminum frame - rigid 279g assembly with a scale-real look
● Direct upgrade for 1/14 hydraulic dump trucks - matches the F-frame mounting layout of common 1/14 tippers
● Complete mounting kit - pins, fittings and screws in the box, ready to install

**Compatibility**

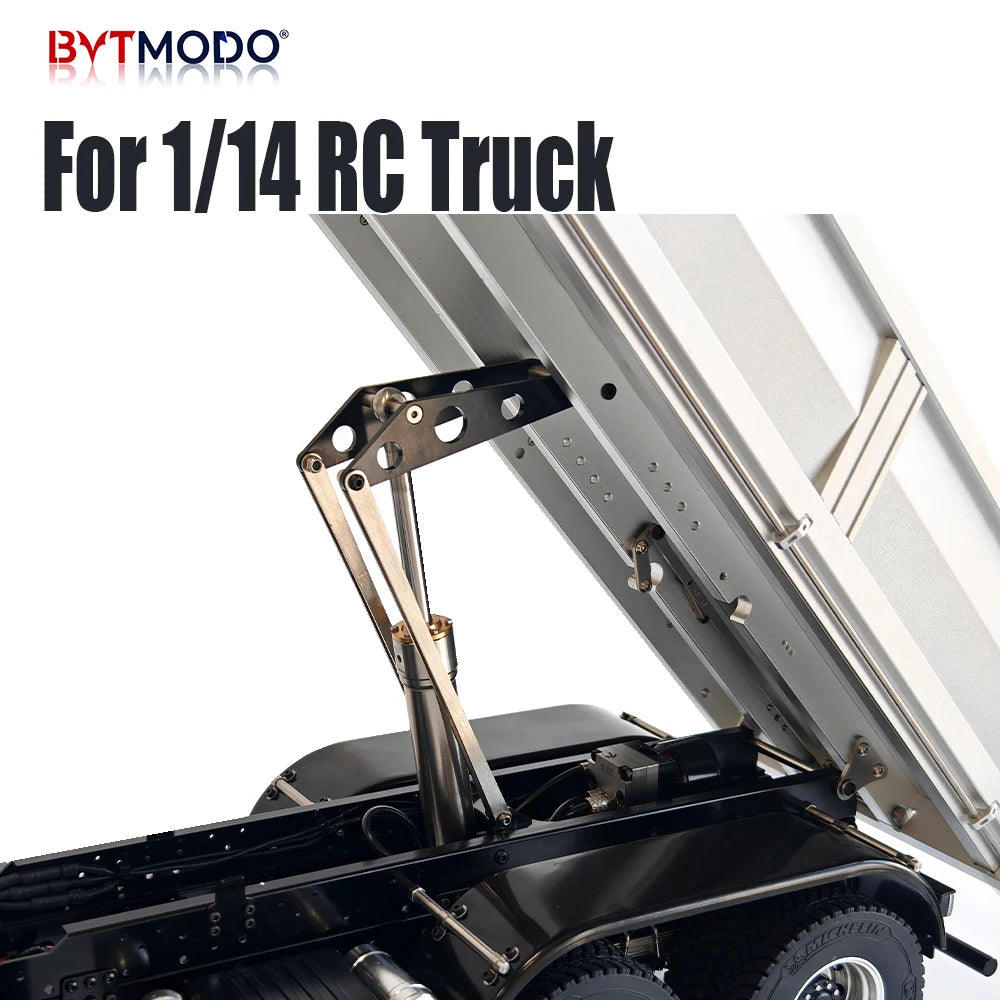

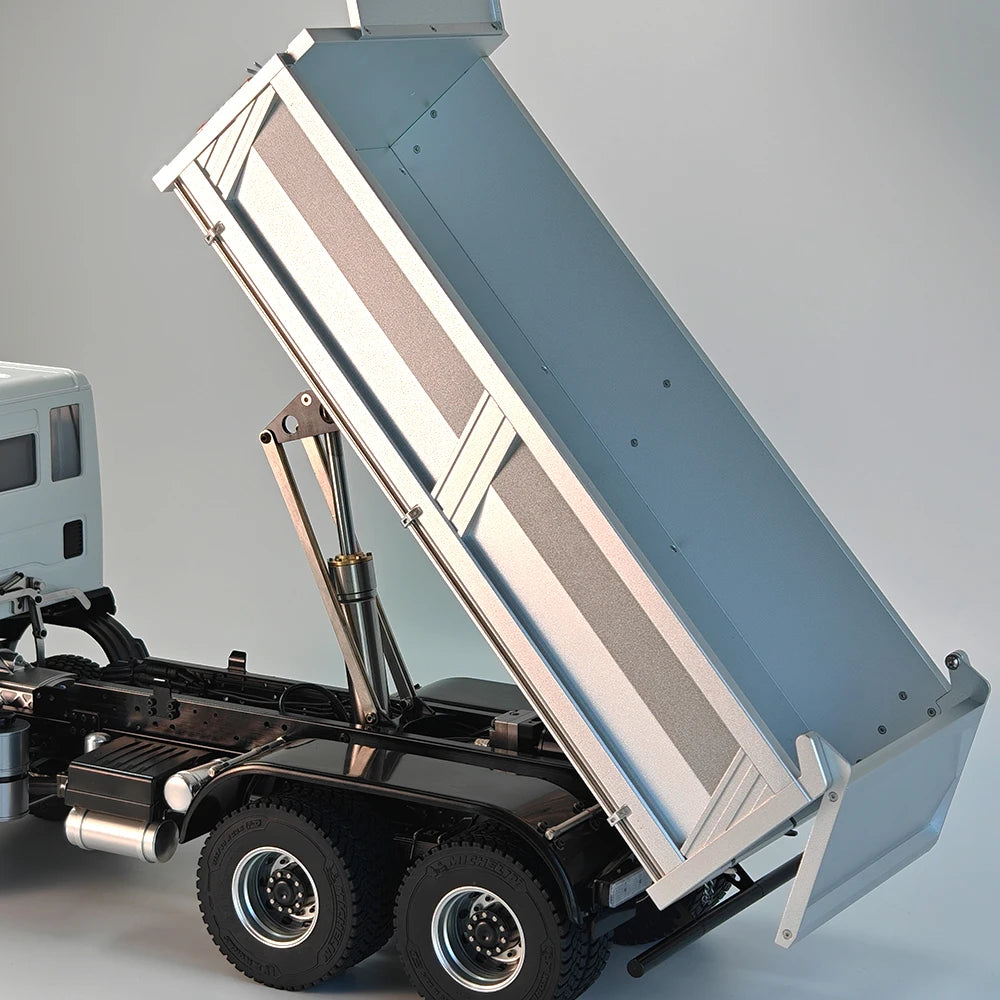

Fits 1/14 scale hydraulic dump trucks and tipper conversions, for Tamiya 1/14 chassis and models such as Mercedes-Benz Actros 3363, Scania 770S, Volvo FH16 750, MAN TGX and IVECO dump trucks.
Please check the mounting space on your chassis and your hydraulic pump setup before ordering.

**Specifications**

Model: TP-040
Material: stainless steel cylinder (laser-welded) and linkage rods, CNC-machined aluminum alloy F-frame
Weight: 279g
Hydraulic pump: not included
Quantity: 1 set per package

**Note**

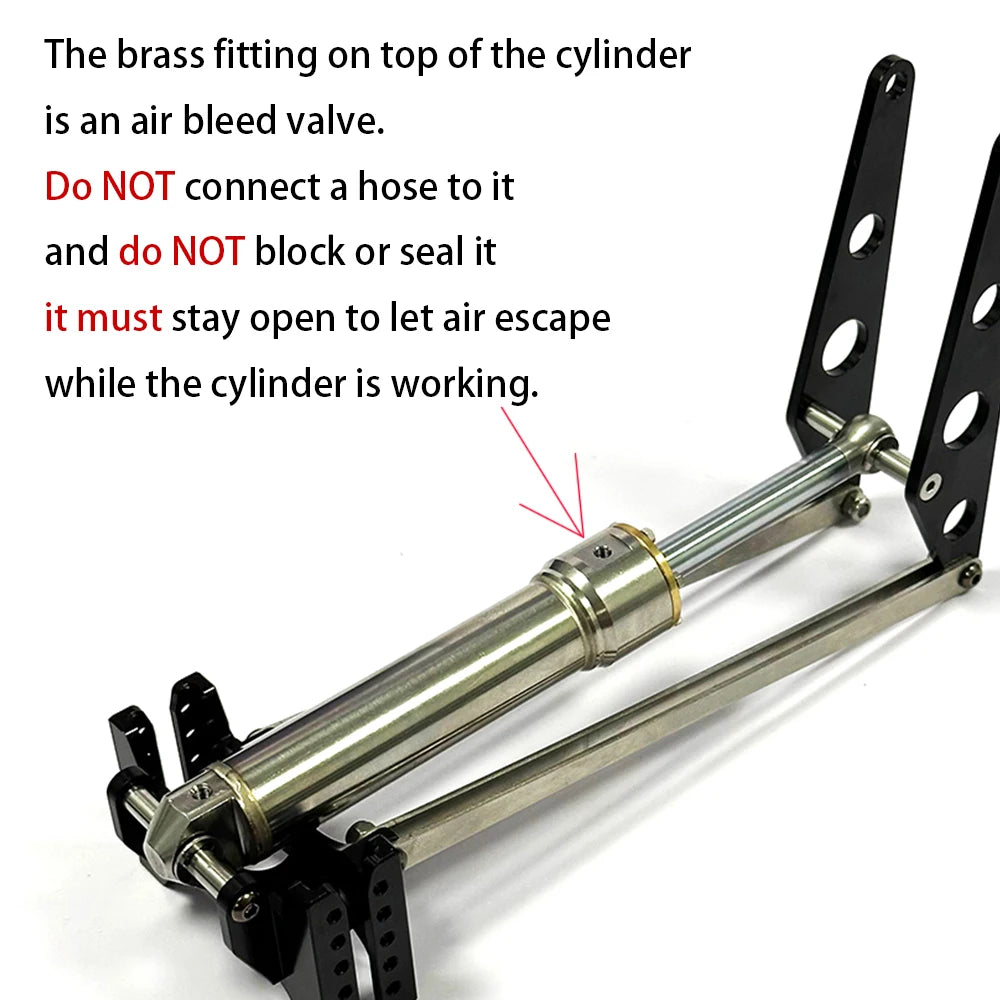

Important: the brass fitting on top of the cylinder is an air bleed valve. Do NOT connect a hose to it and do NOT block or seal it - it must stay open to let air escape while the cylinder is working.
Hydraulic pump, oil and the rest of the hydraulic circuit are not included.
Please check the mounting space on your chassis before ordering.
Trucks and other parts shown in the photos are for display only and are not included.
This is not an official Tamiya, Mercedes-Benz, Scania, Volvo, MAN or IVECO product.
All brand and model names mentioned are for compatibility description only.
