**Product Description**

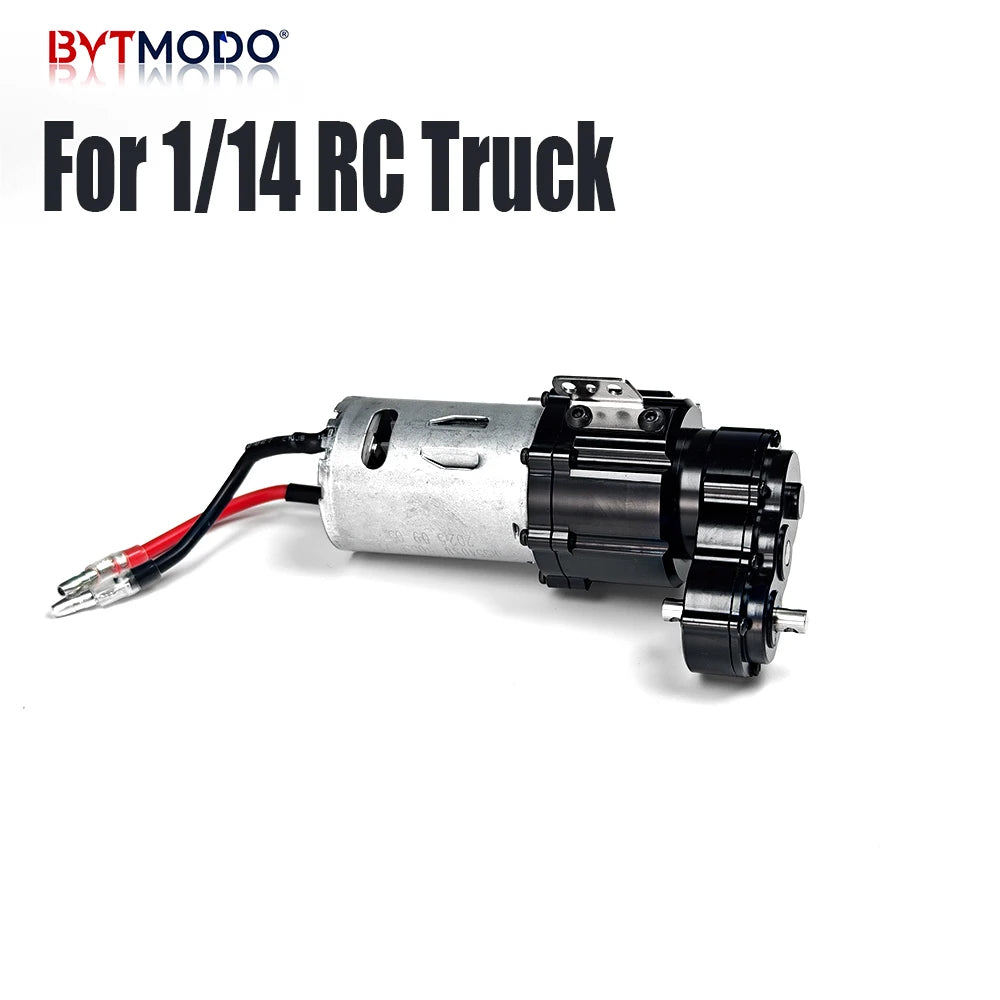

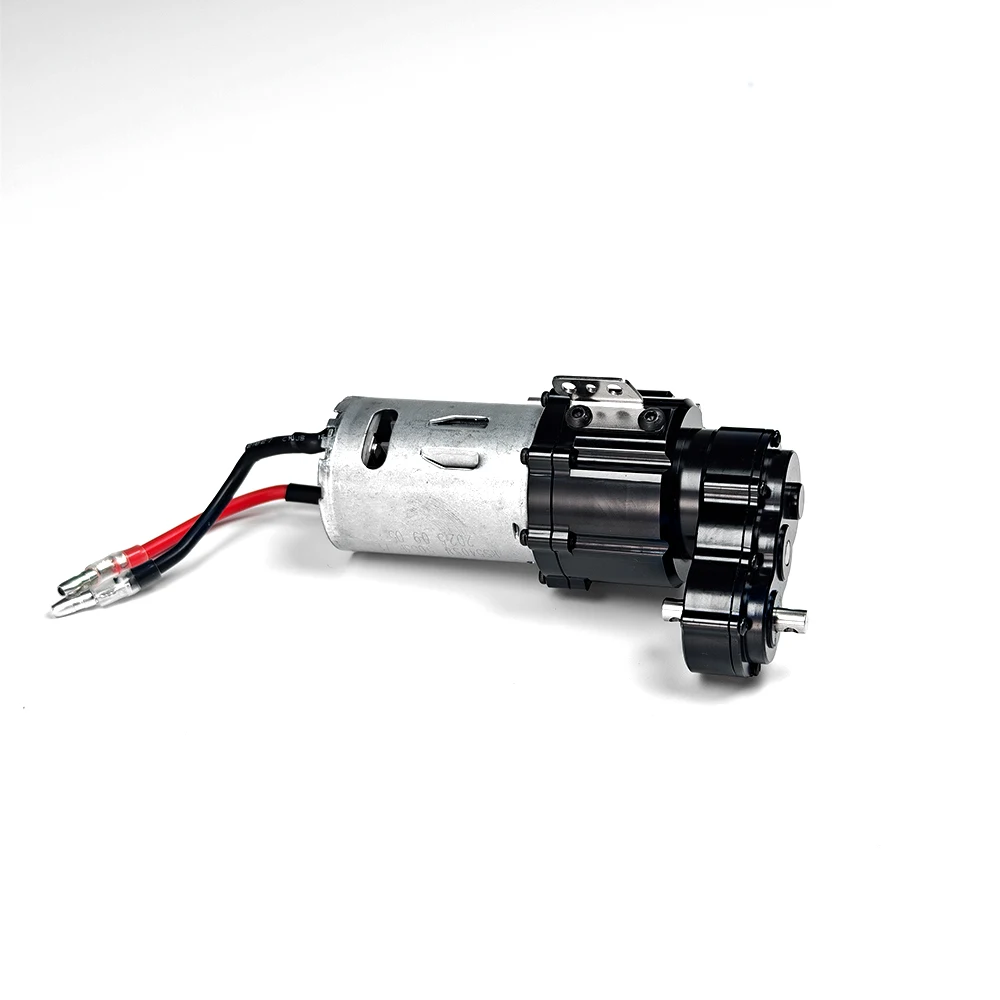

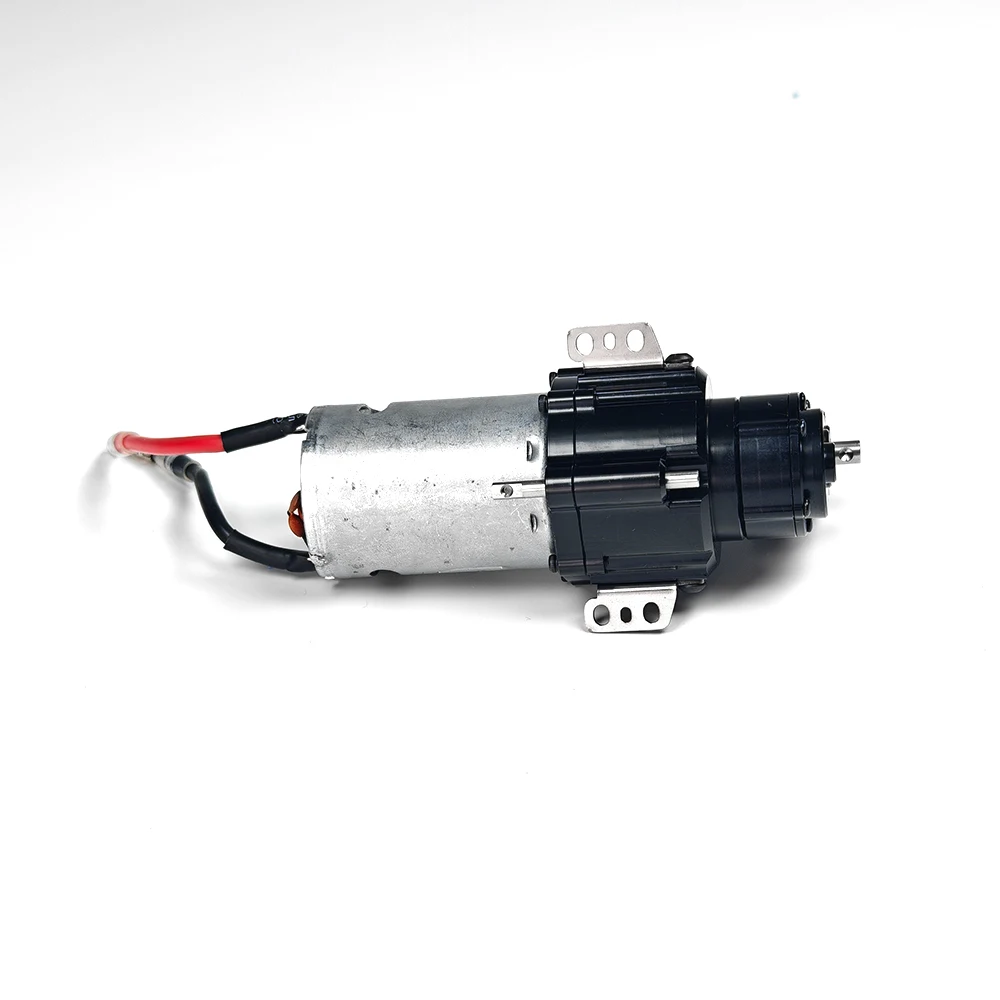

Drop a complete two-speed driveline into your 1/14 truck.
This set combines a 540 brushed motor, a two-speed gearbox and an integrated transfer case - a 1/15 low range for pulling heavy loads and a 1/28 high range for the open road.
Gear shifting is servo-operated, so you simply add your own servo and use one channel to change gears on the fly.
Runs on 7.4V batteries only.

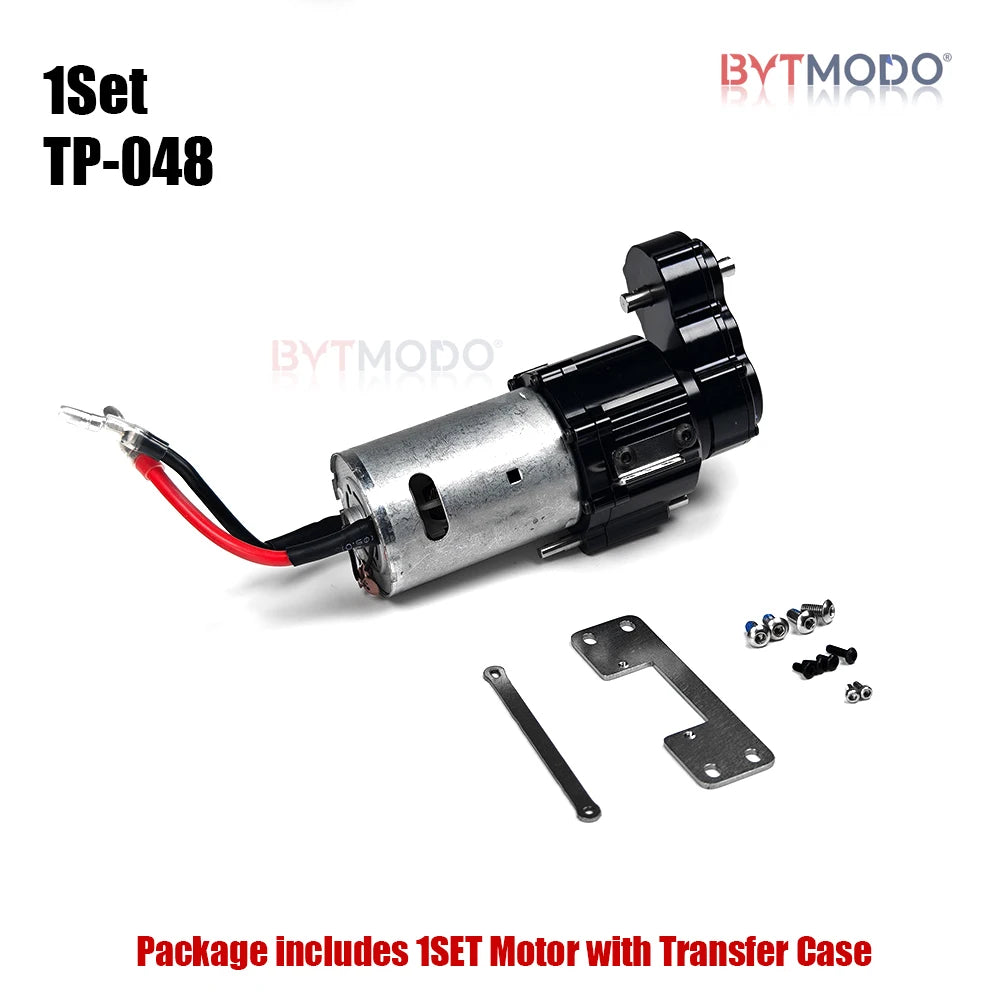

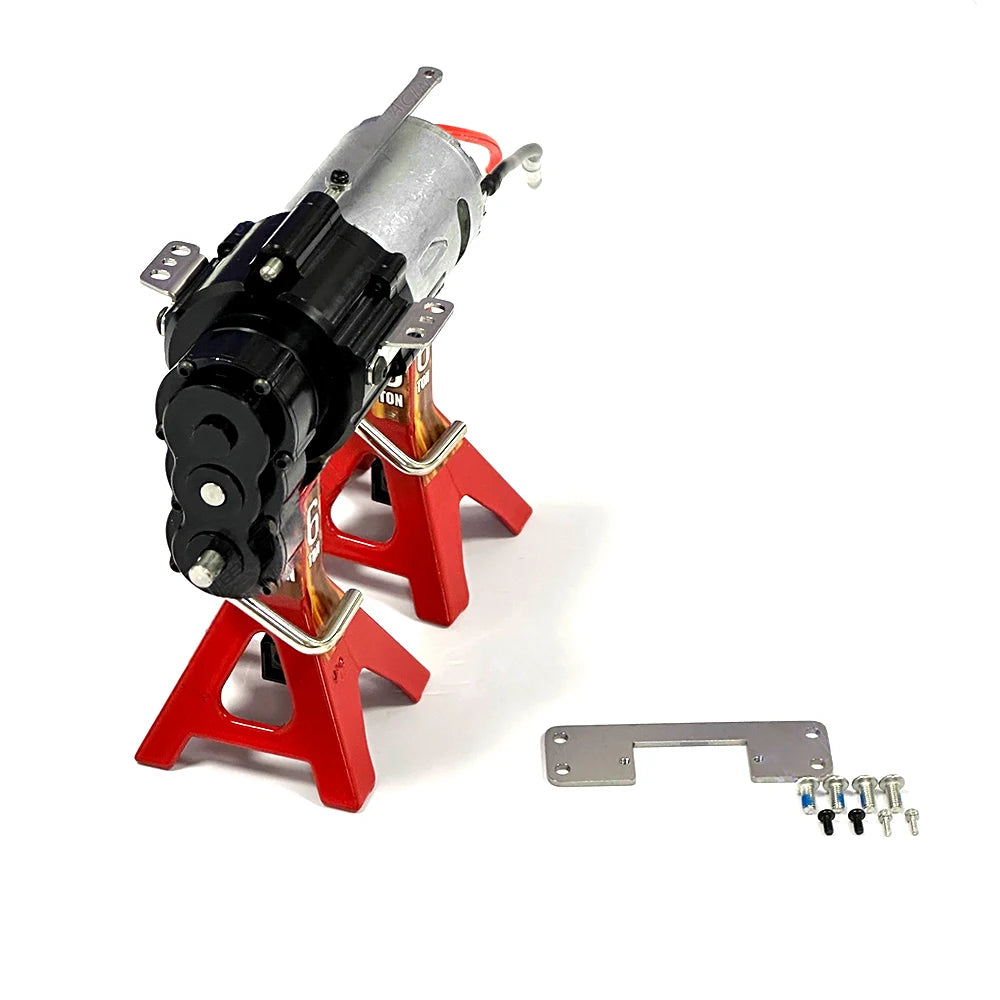

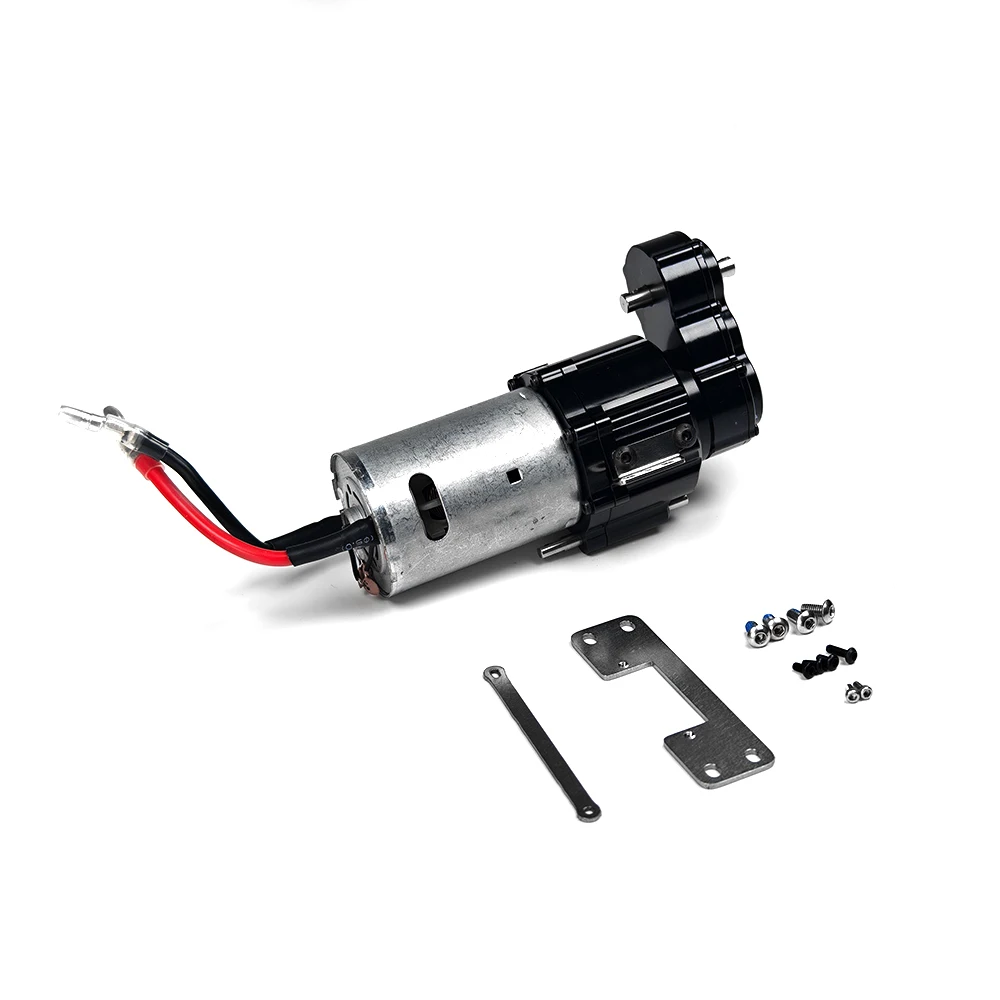

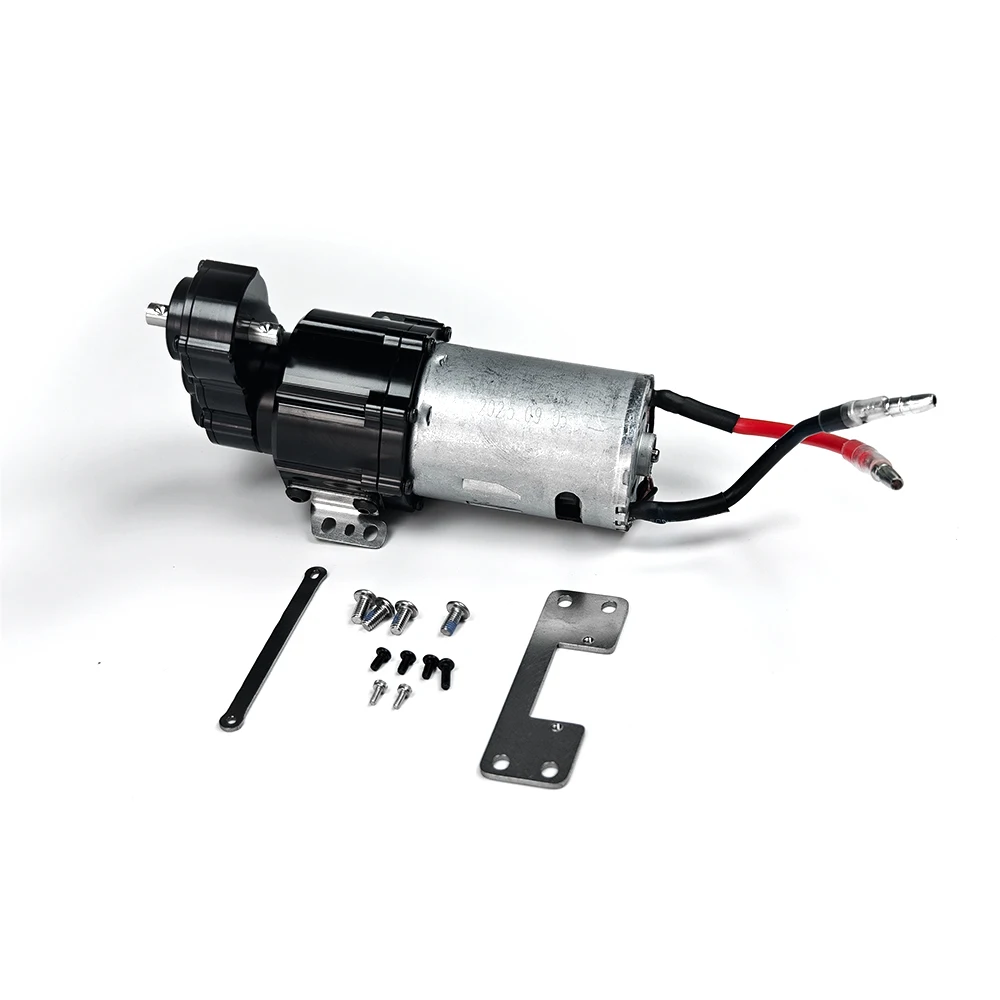

**What's Included**

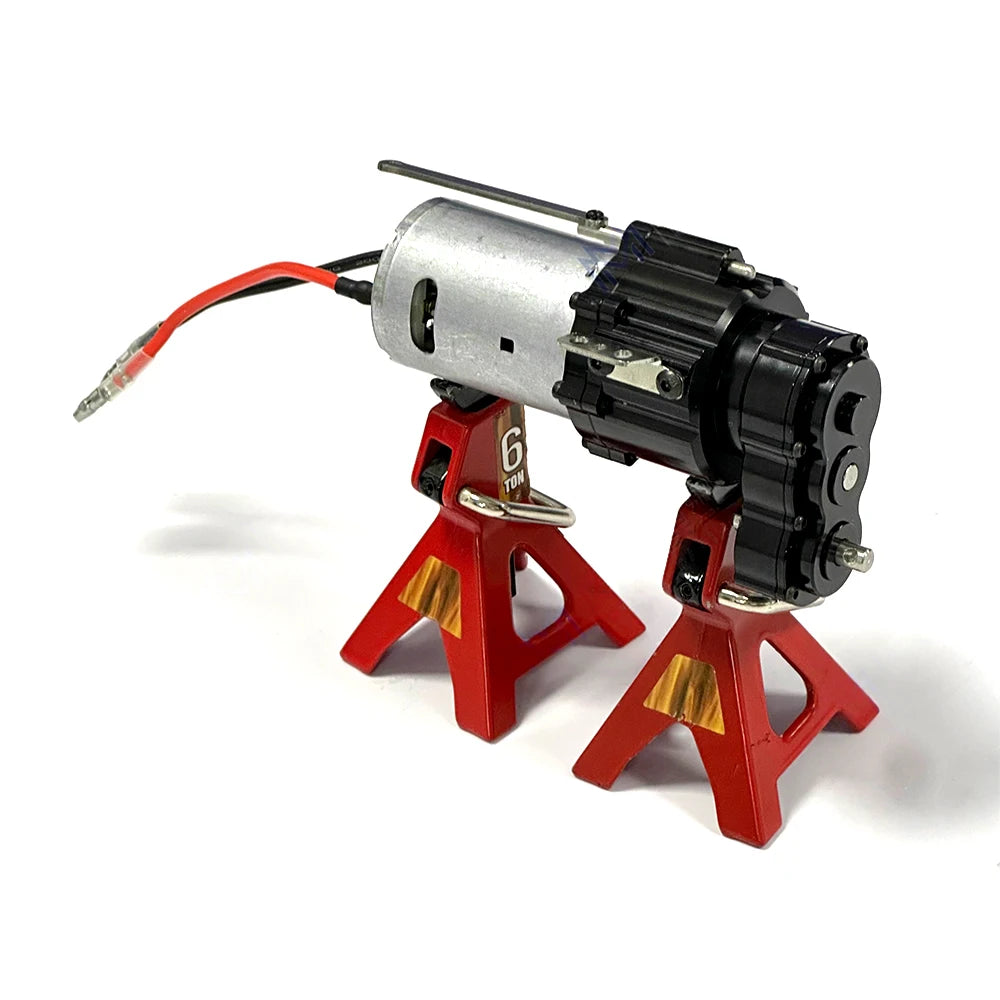

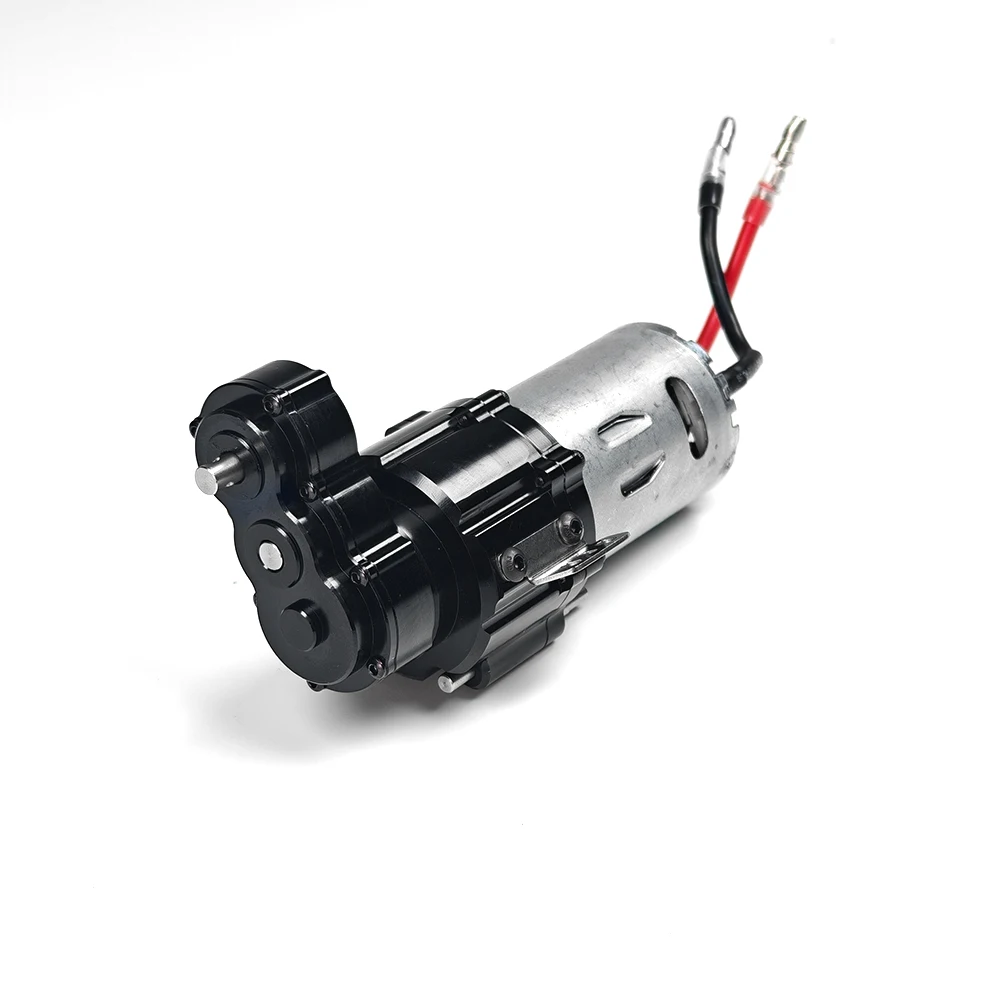

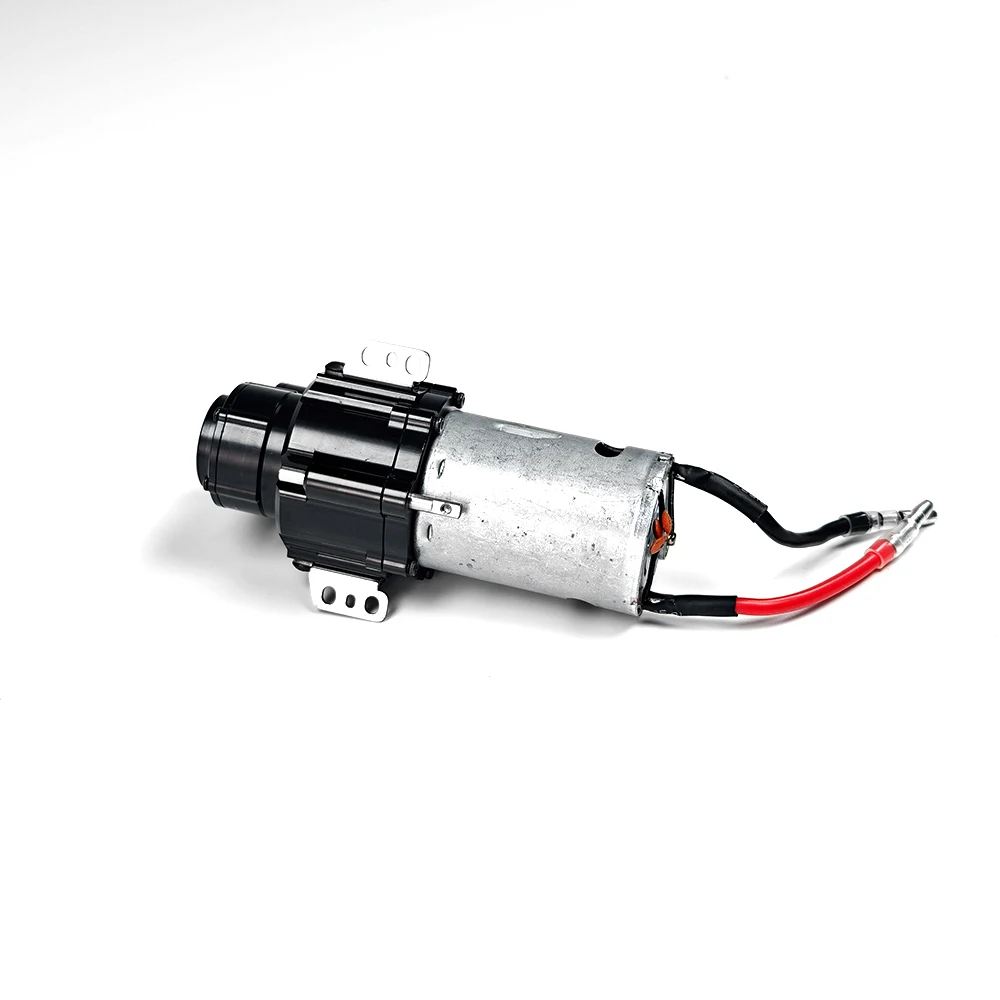

1 x 540 brushed motor with pre-wired leads and connectors
1 x two-speed gearbox with integrated transfer case
1 x mounting hardware set (metal bracket, strap, screws)
Note: shifting servo, ESC, battery and receiver are NOT included.
A servo is required to change gears.

**Key Features**
● Two-speed transmission - 1st gear 1/15 for torque and crawling, 2nd gear 1/28 for speed on the road

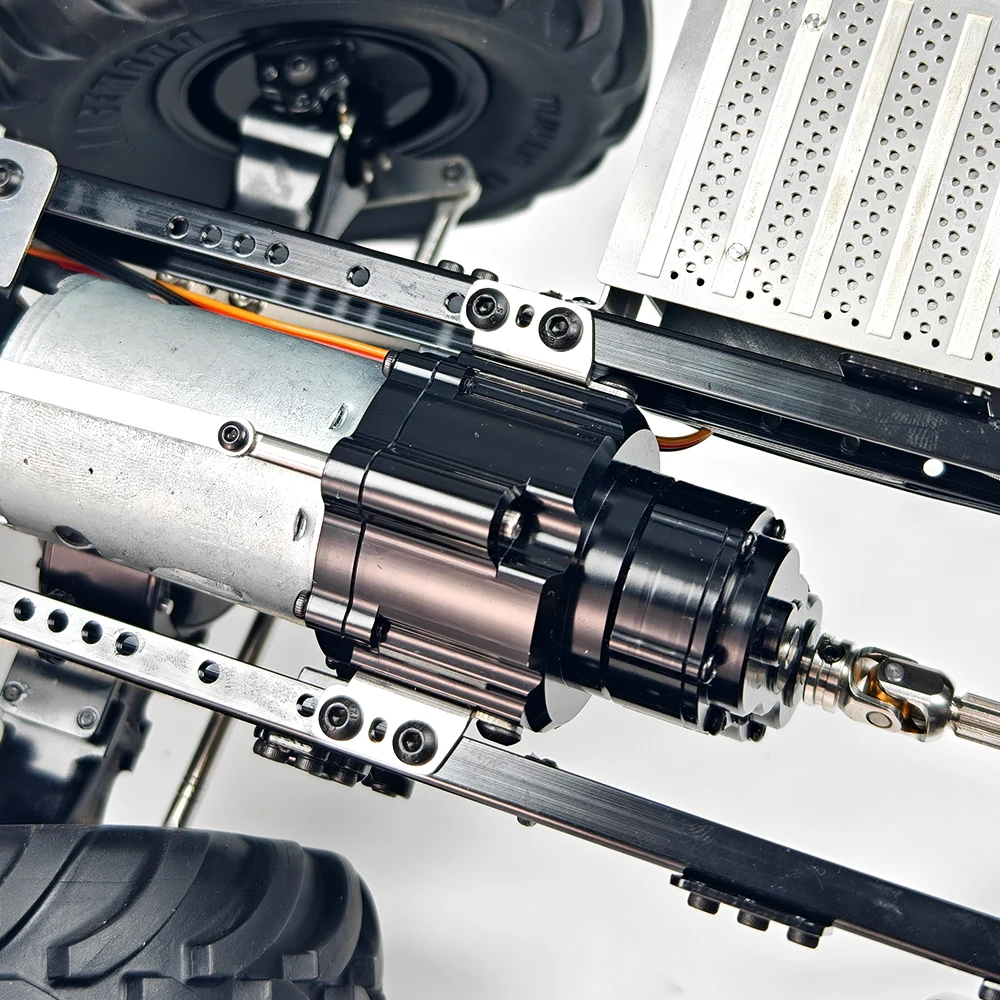

● Integrated transfer case - drives the driveline straight from the gearbox output, ready for your truck chassis
● 540 brushed motor included - matched to the gearbox out of the box

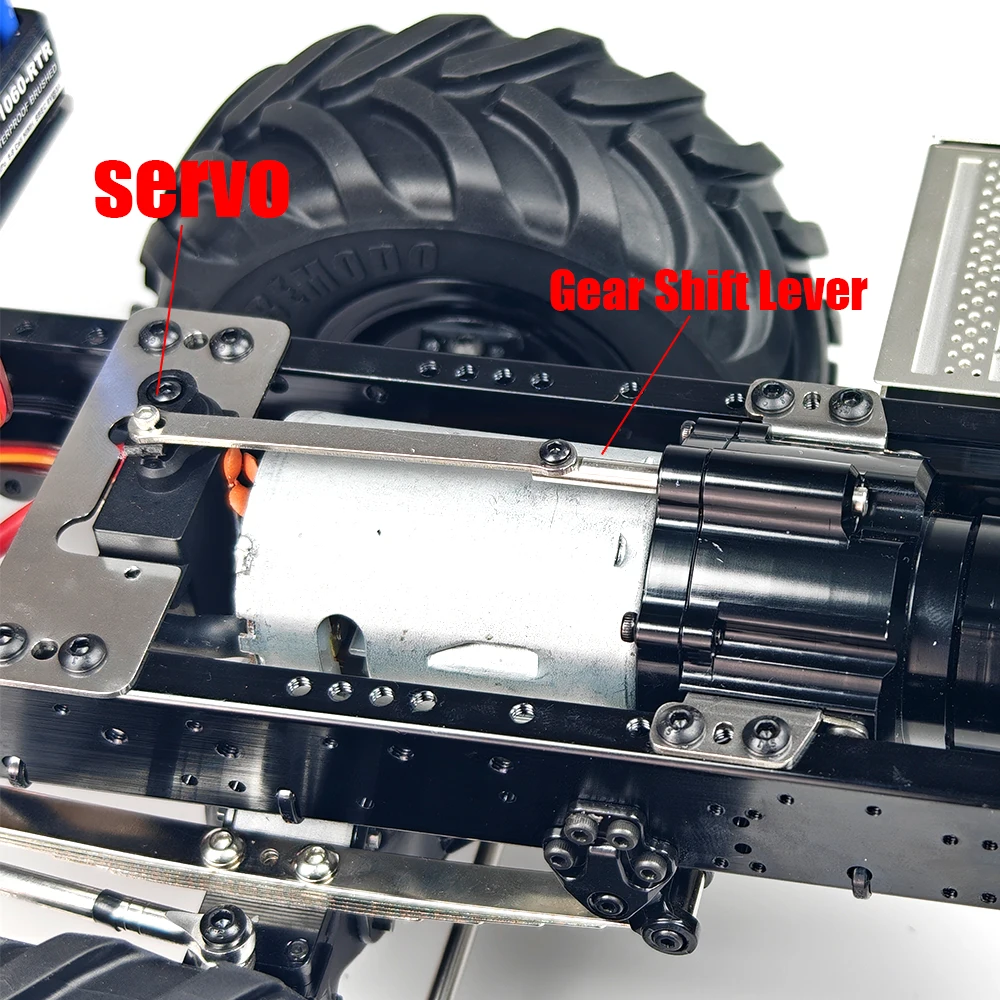

● Servo-shift operation - use a spare servo channel to change gears while driving (servo not included)
● All-metal gears - built to take the load of a heavy 1/14 truck

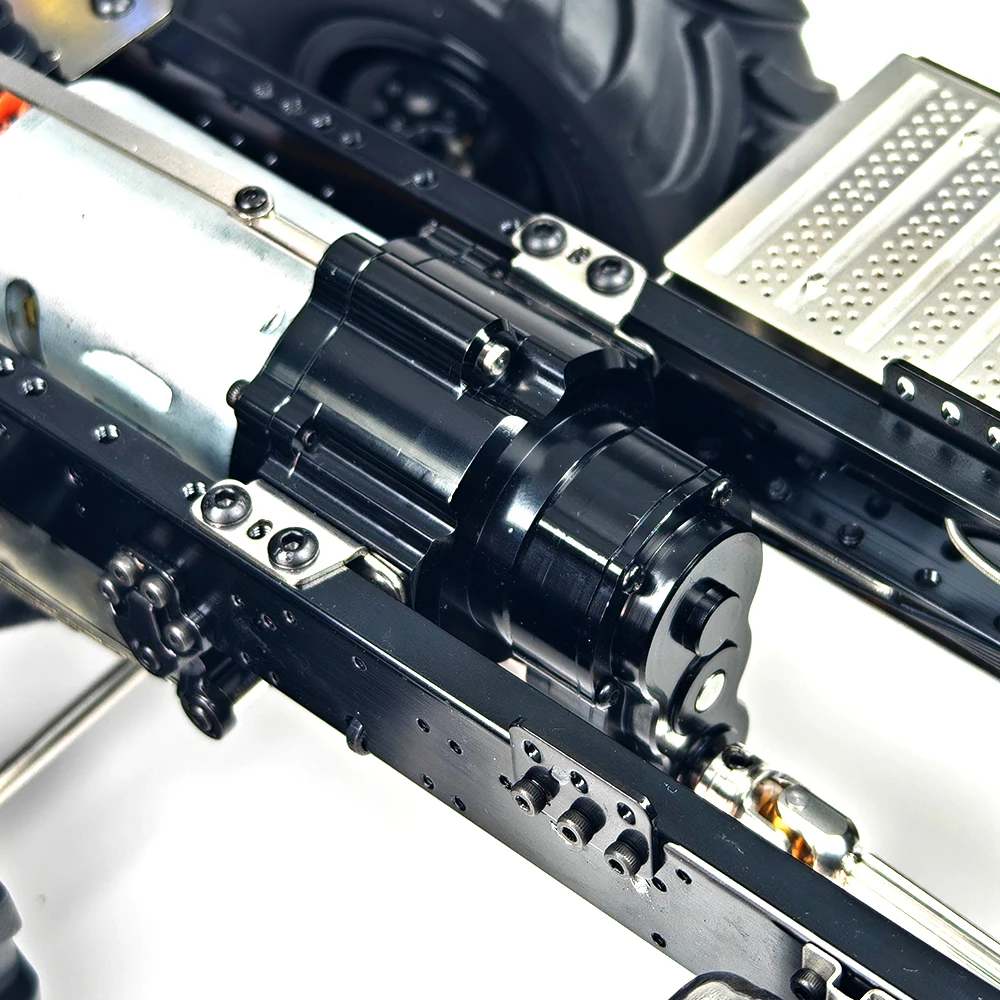

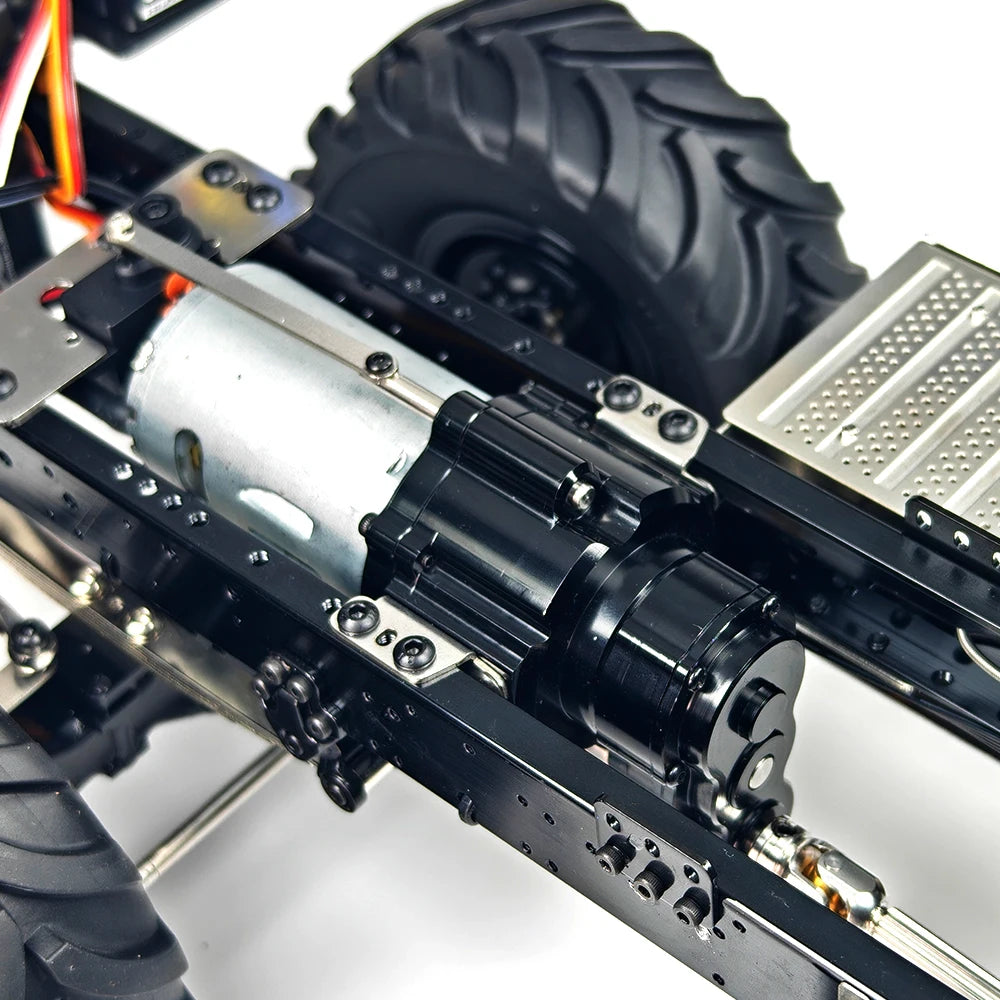

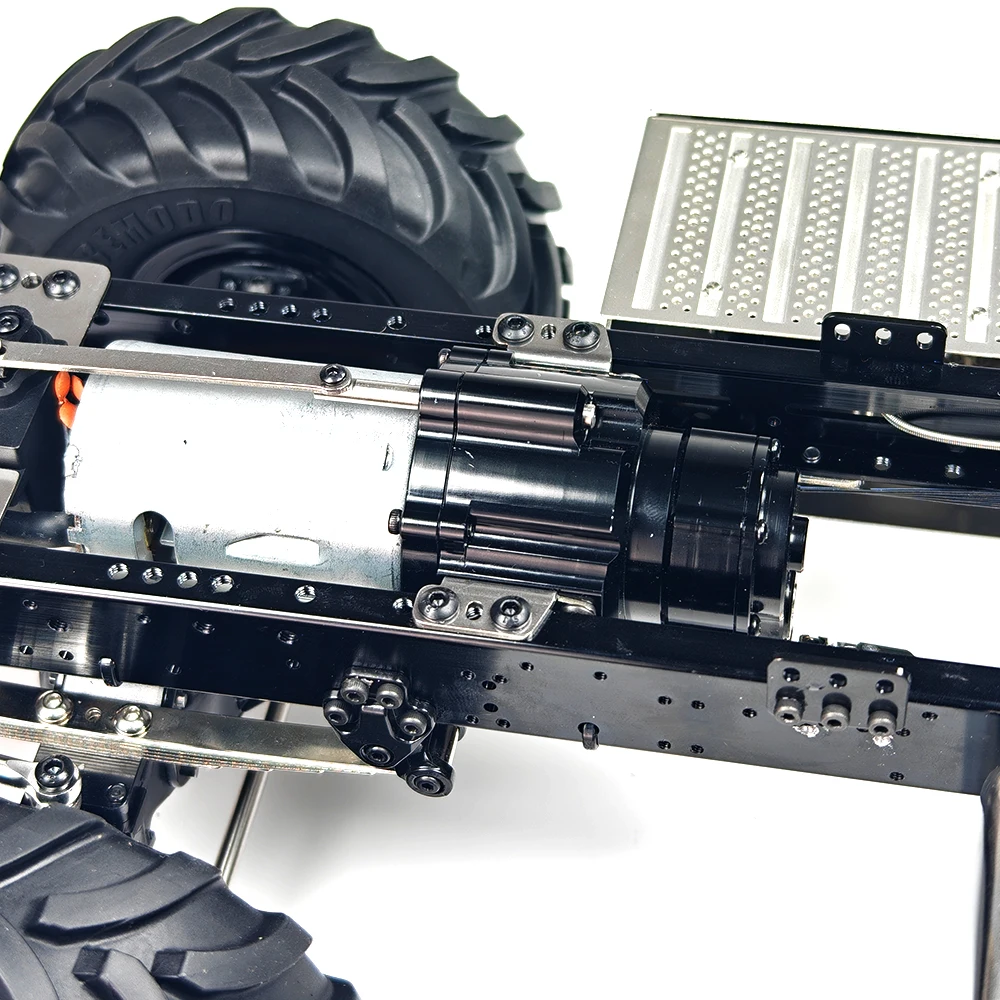

● Metal mounting hardware included - bolts straight onto 1/14 truck frames
● 7.4V operation - simple, proven power for scale trucks

**Compatibility**
Designed for 1/14 scale RC trucks: Tamiya tractor trucks, dump trucks, tippers, cargo trucks and similar chassis.

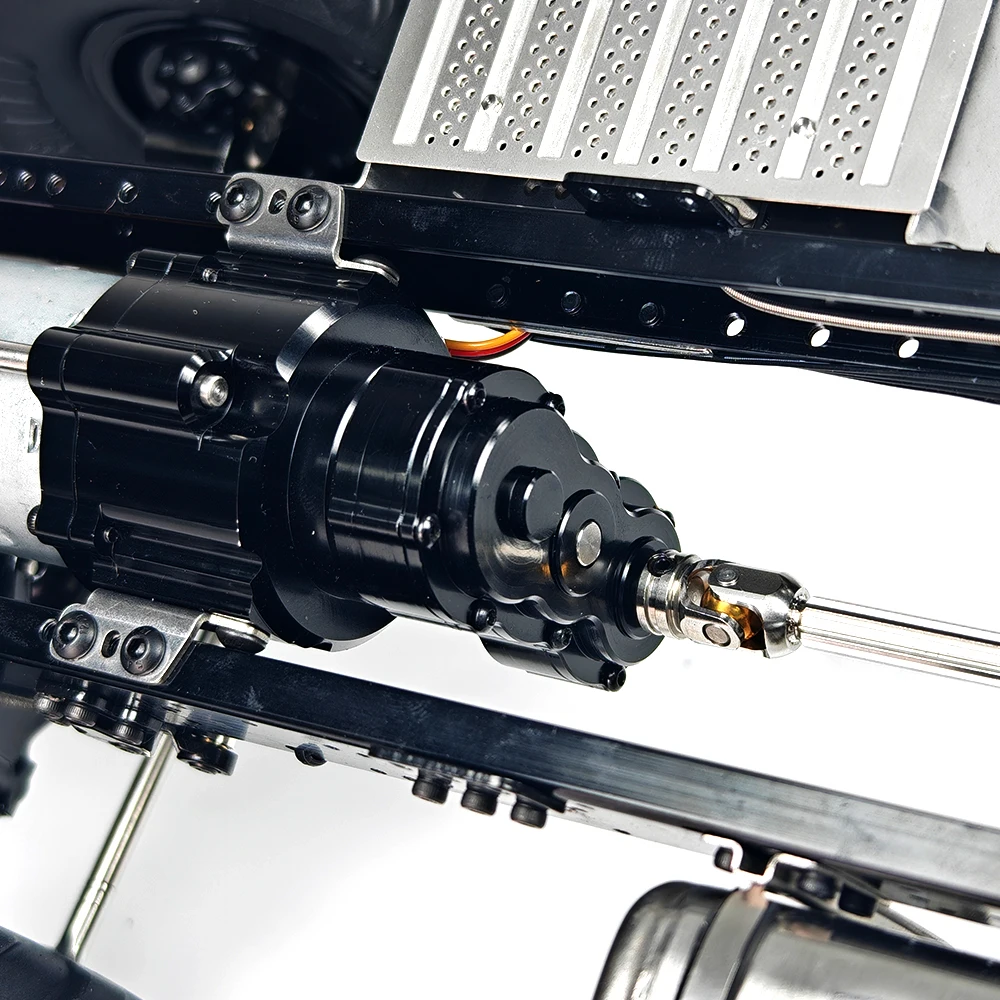

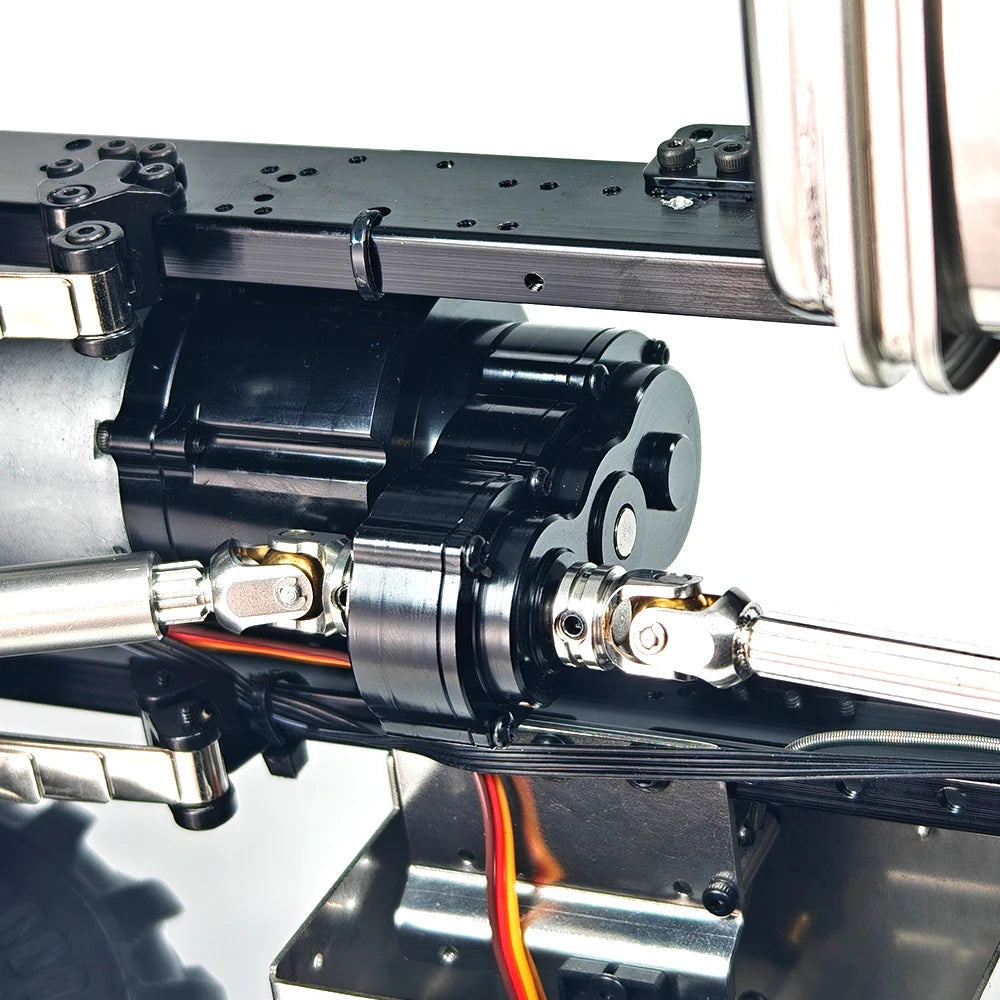

Output shaft: 5mm, so it pairs with standard 1/14 drive shafts with a 5mm bore, including the telescoping drive shafts sold in our store (choose by length).
Shifting servo: any servo under 10g works - this one is NOT included.
Requires a shifting servo, ESC and 7.4V battery to run - none of these are included.

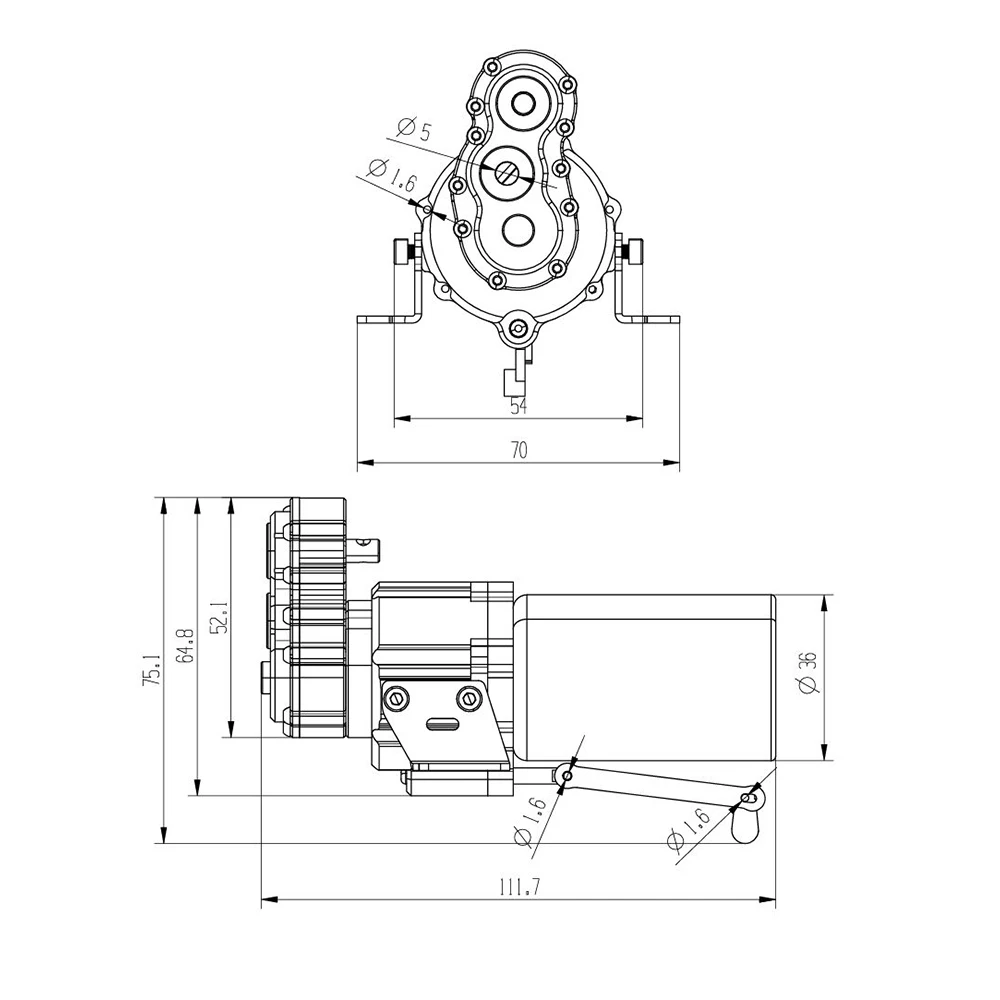

**Specifications**
Scale: 1/14
Motor: 540 brushed, pre-wired with connectors
Transmission: two-speed gearbox with integrated transfer case
Gears: all-metal
Gear ratio: 1st gear 1/15, 2nd gear 1/28
Output shaft: 5mm
Operating voltage: 7.4V only
Shifting: servo-operated (any servo under 10g, not included)
Quantity: 1 set per package

**Note**
Use a 7.4V battery only - higher voltage will damage the motor.
A shifting servo is required for gear changes and is NOT included.
ESC, battery, receiver and transmitter are NOT included.
After installation, set the shift linkage so both gears engage fully; a small amount of linkage adjustment may be needed on custom builds.

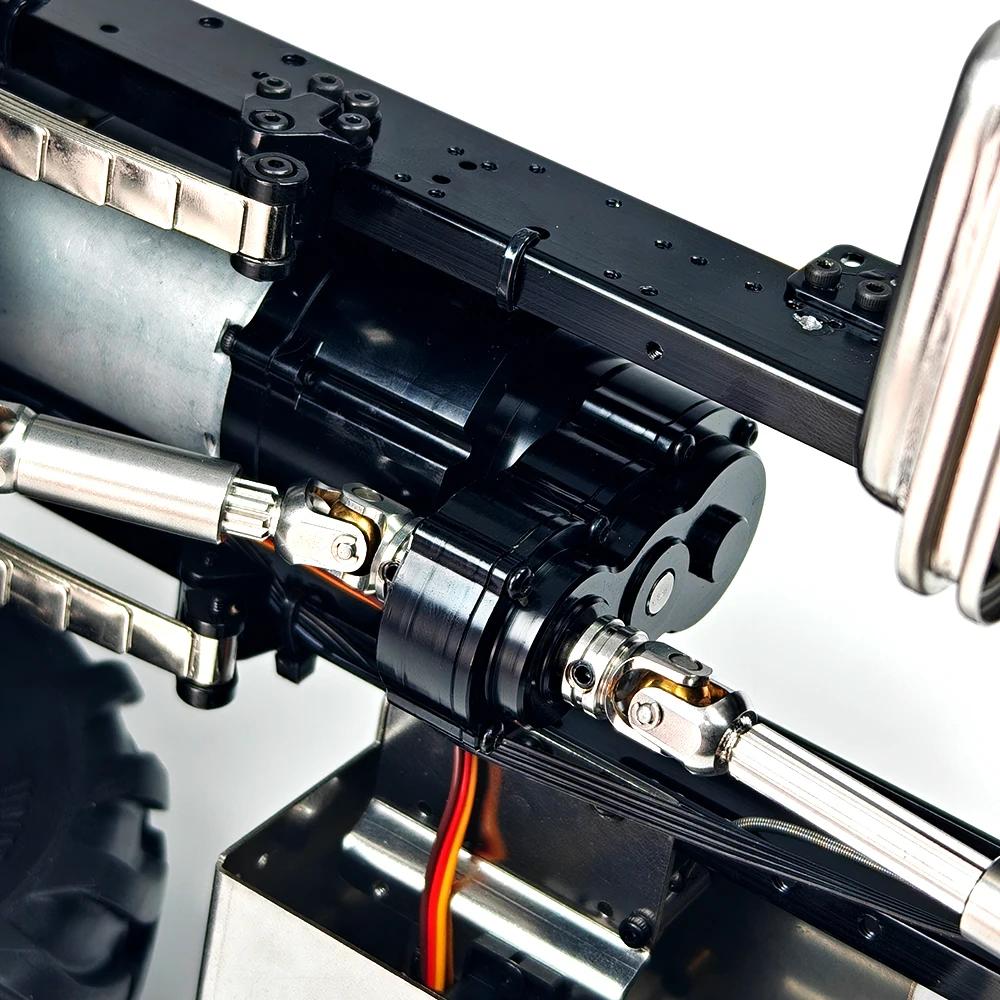

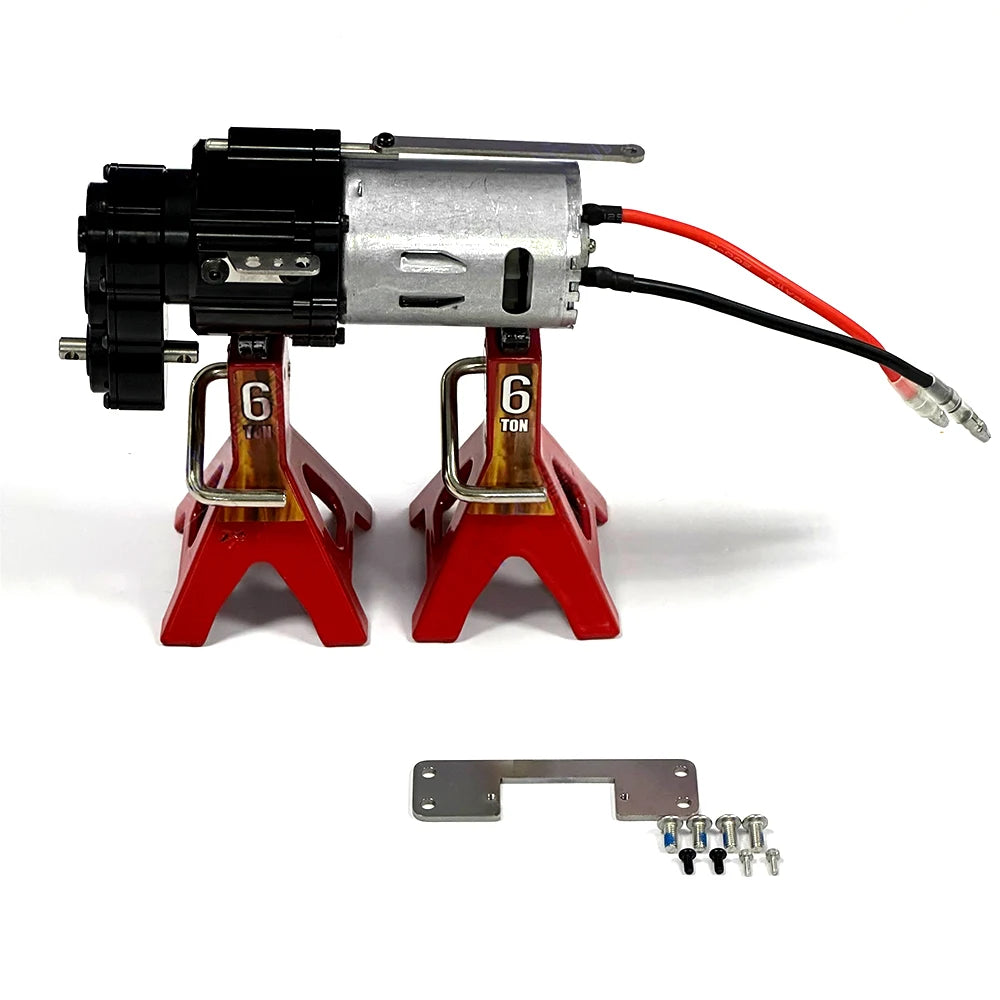

Truck and other parts shown in photos are for display only and are not included.
This is not an official Tamiya product.
