1/14 RC Hydraulic Tank Metal Oil Tank for Tamiya 1/14 Rc Tractor Truck Tipper Dumper SCANIA 770S IVECO VOLVO BENZ 3363 MAN TGX

Product Description

Put a real hydraulic reserve on your 1/14 dump truck.
This polished stainless steel tank stores the hydraulic oil that feeds the lift cylinder, so your tipper bed rises on a genuine oil circuit - a working component of your hydraulic dump setup, not a dummy scale prop.
The mirror-polished stainless body brings the classic shine of a real truck tank to the chassis rail, and it comes with hydraulic hose, brackets and fittings for a complete install.

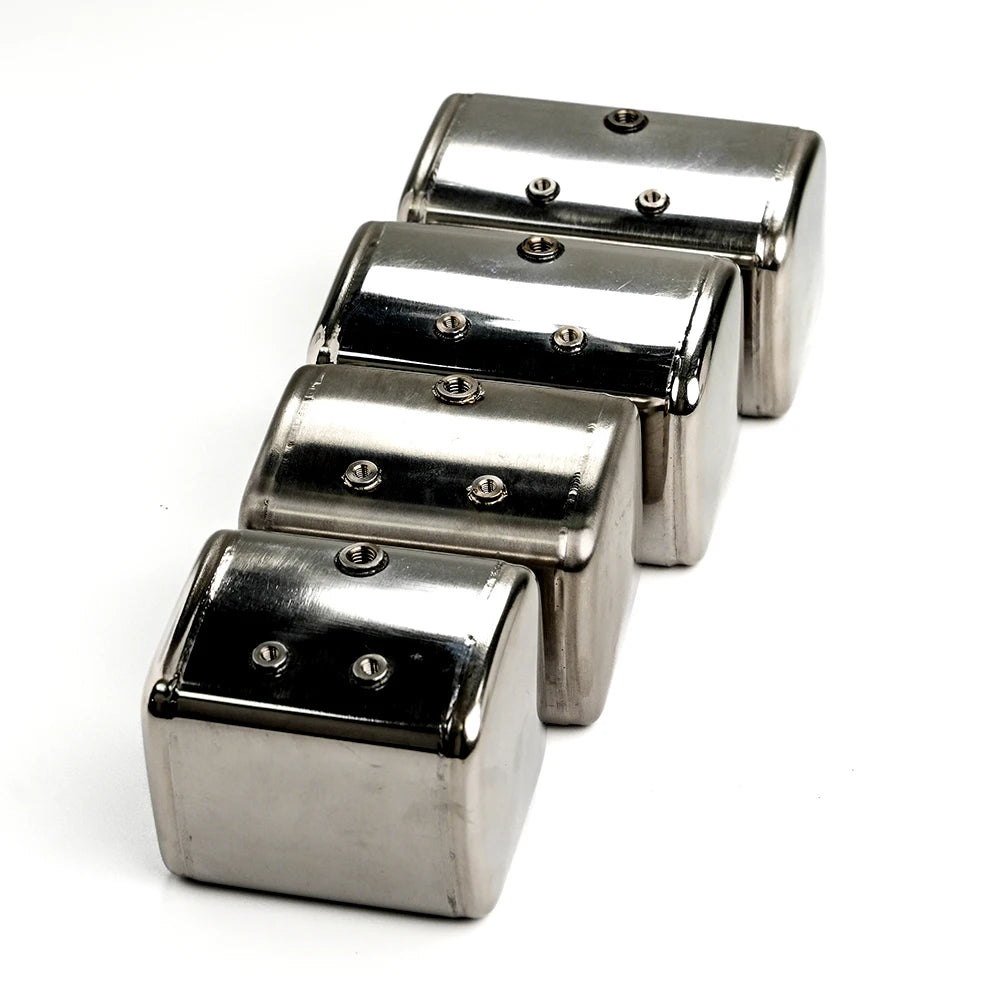

Four lengths are available - 65mm, 72mm, 85mm and 90mm - sharing the same width and height, so you can pick the capacity (147ml to 205ml) and the look that fit your frame best.

What's Included (per selected SKU)

1 x polished stainless steel hydraulic tank with 2 pre-installed metal hydraulic ports
1 x black tank cap
1 x black hydraulic hose
2 x L-shaped stainless steel mounting brackets
2 x metal hose fittings Mounting screws, seals and small hardware (quantities as received)

Hydraulic pump, lift cylinder and hydraulic oil are NOT included.
Trucks, chassis and other parts shown in photos are for display only and are not included.

Key Features

● Functional hydraulic reserve - stores oil for the lift cylinder that raises the tipper bed, a working part of the hydraulic system, not just decoration
● Polished stainless steel body - mirror-bright finish with the look of a real truck tank, rust-resistant for long service
● Four lengths, one mounting style - 65 / 72 / 85 / 90mm share the same width and height, choose by frame space and capacity
● Real capacity per size - 147ml (65mm) / 162ml (72mm) / 193ml (85mm) / 205ml (90mm)
● Pre-tapped hydraulic ports - 2 metal fittings on top, ready to connect your oil line
● Complete install kit - hydraulic hose, metal fittings, L-shaped brackets and strap bands included
● Real metal heft - 150g to 186g per set including hardware, solid weight like a real truck tank
● Secure strap mounting - brackets and bands clamp the tank firmly to the chassis rail

Compatibility

Designed for 1/14 scale hydraulic dump trucks and tractor trucks, for Tamiya 1/14 chassis and similar third-party builds.
Choose by tank length: TP-102 = 65mm, TP-103 = 72mm, TP-104 = 85mm, TP-105 = 90mm.
Overall size per tank: length as selected, approx. 56.2-56.7mm wide and 52.6-53.4mm high - please measure your chassis rail space before ordering.
Works with 1/14 hydraulic pump and cylinder systems; pump, cylinder and oil are not included.
Mounting is done with the included L-shaped brackets and strap bands; please check the mounting points on your chassis.

Specifications

Scale: 1/14
Material: polished stainless steel
Function: hydraulic oil reservoir for lift cylinder systems
All weights below are per set including the mounting hardware.

Ports: 2 x metal hydraulic fittings (pre-installed)
Cap: 1 x black tank cap (included in the hardware pack)
Included hose: 1 x black hydraulic hose

Note

These tanks are functional oil reservoirs for model hydraulic systems; do not overfill and keep away from small children.
Hydraulic pump, lift cylinder, oil and the rest of the hydraulic circuit are not included.
Slight handmade weld marks or polish traces on the stainless surface are normal for hand-finished tanks.
Please check dimensions against your chassis before ordering.
Trucks and other parts shown in the photos are for display only and are not included.
This is not an official Tamiya, Mercedes-Benz, Scania or IVECO product.
All brand and model names mentioned are for compatibility description only.
