1/14 Rc Drive Shaf Stainless Steel Driveshaft Metal Cvd Truck Accessories for 1/14 Tamiya RC Truck Dump Tractor Crawler Climbing

**产品描述**

Upgrade your driveline with this stainless steel telescoping drive shaft.

Both ends carry true CVD joints, while the center section slides on a splined shaft with tight clearances, so the shaft keeps transferring power smoothly even when the axles articulate - and it holds up far longer than stock shafts.

Precision-turned from stainless steel with a 5mm output hole on each end, it is a solid upgrade for 1/14 tractor trucks, dump trucks and any RC model that matches its length range.

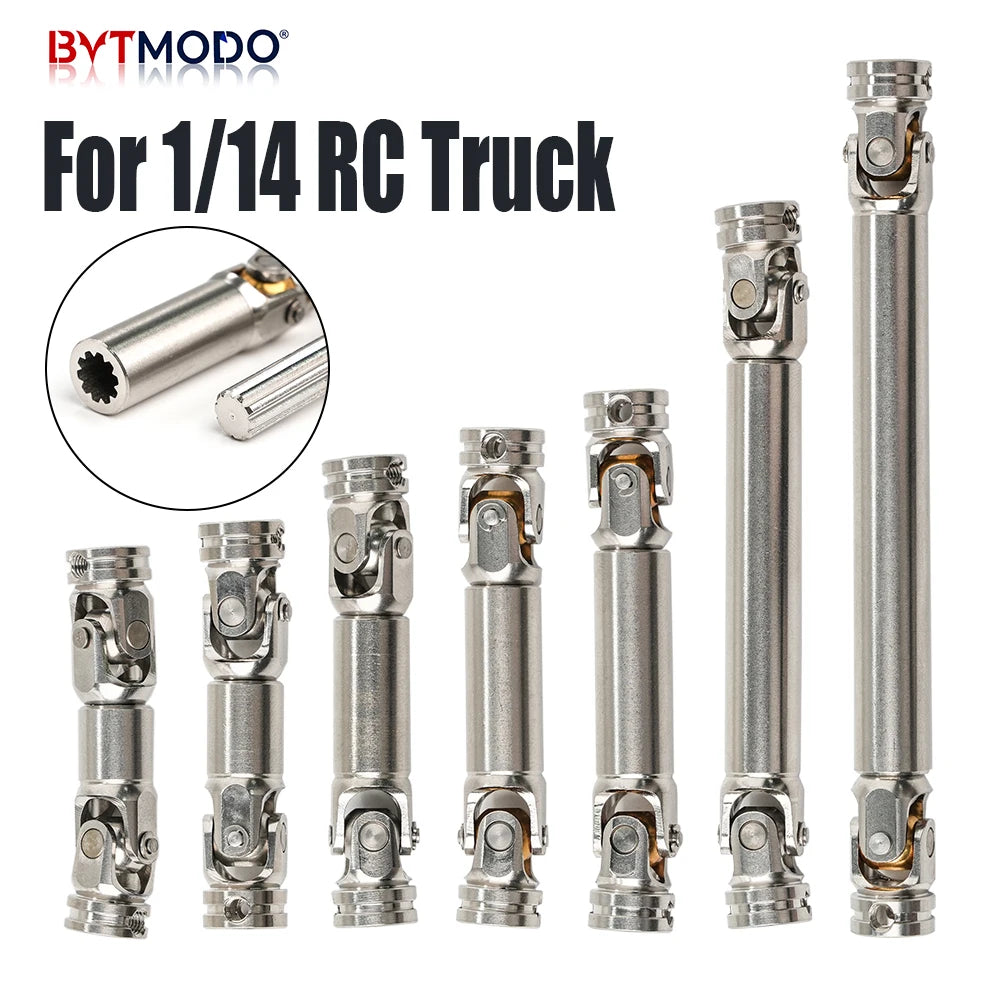

Eight sizes cover 44mm all the way up to 172mm, from compact axle layouts to long wheelbase chassis - pick the size that fits your build.

**What's Included**

1 x stainless steel telescoping drive shaft, size as selected

5 x black grub screws (per shaft, for joint fixing)

Trucks, axles and other parts shown in photos are for display only and are not included.

**Key Features**

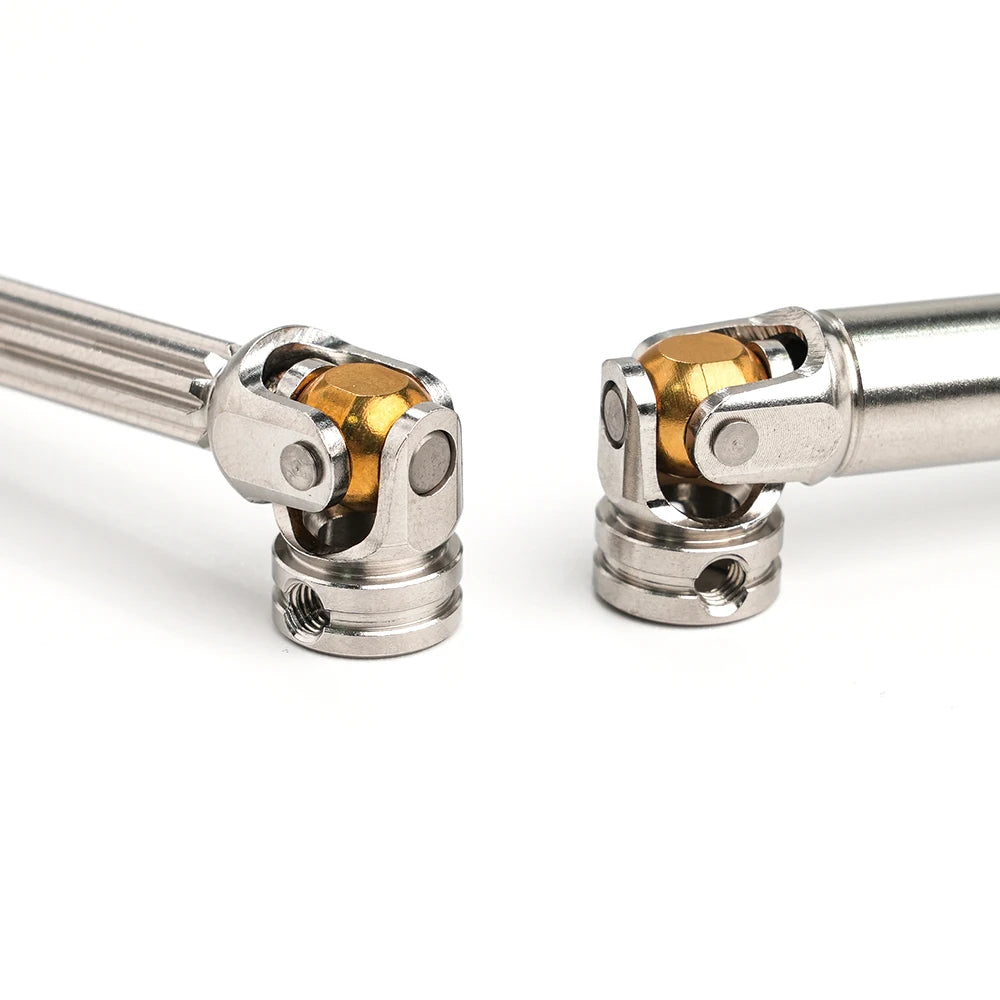

● True CVD joints at both ends - constant velocity power transfer with less vibration than simple dogbone-style shafts

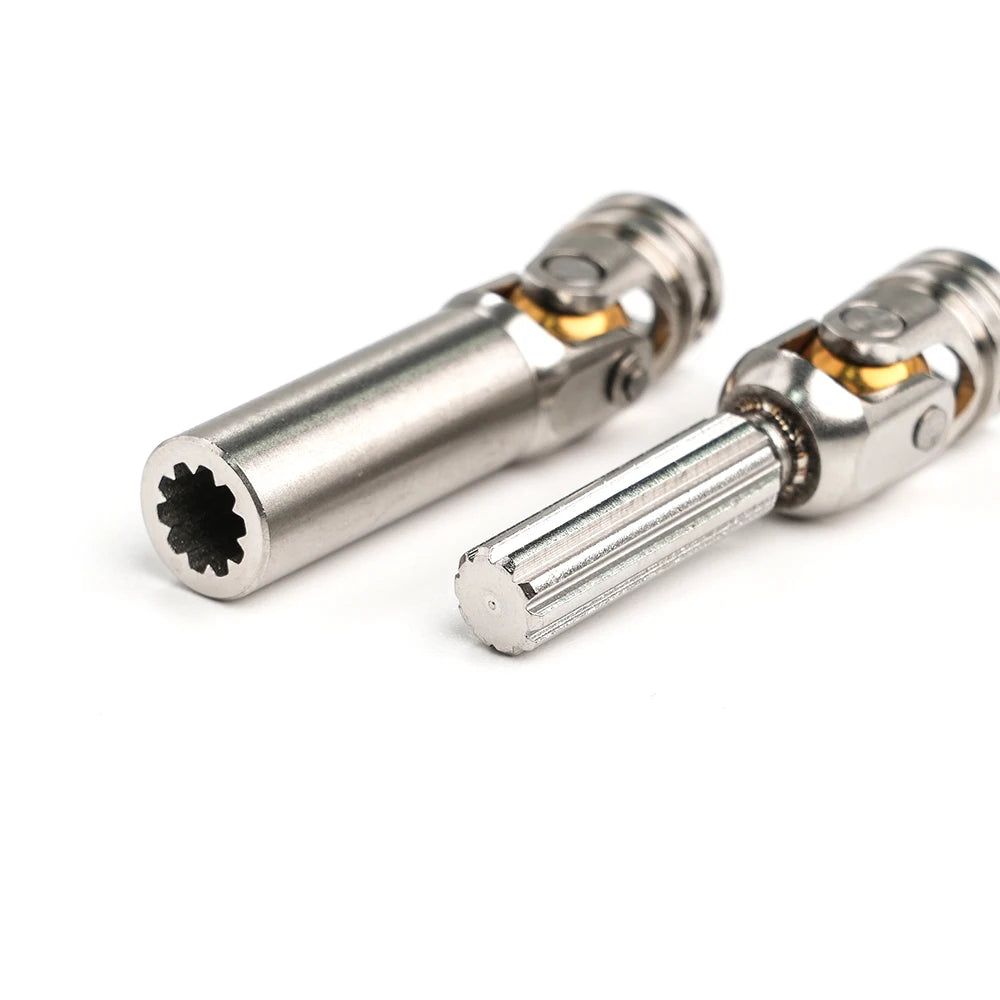

● Splined sliding section - the spline engages over a wide surface with small clearance, so there is no wobble and no sloppy play under torque

● Stainless steel construction - rust-resistant and tough, far more durable than soft plastic or mild steel shafts

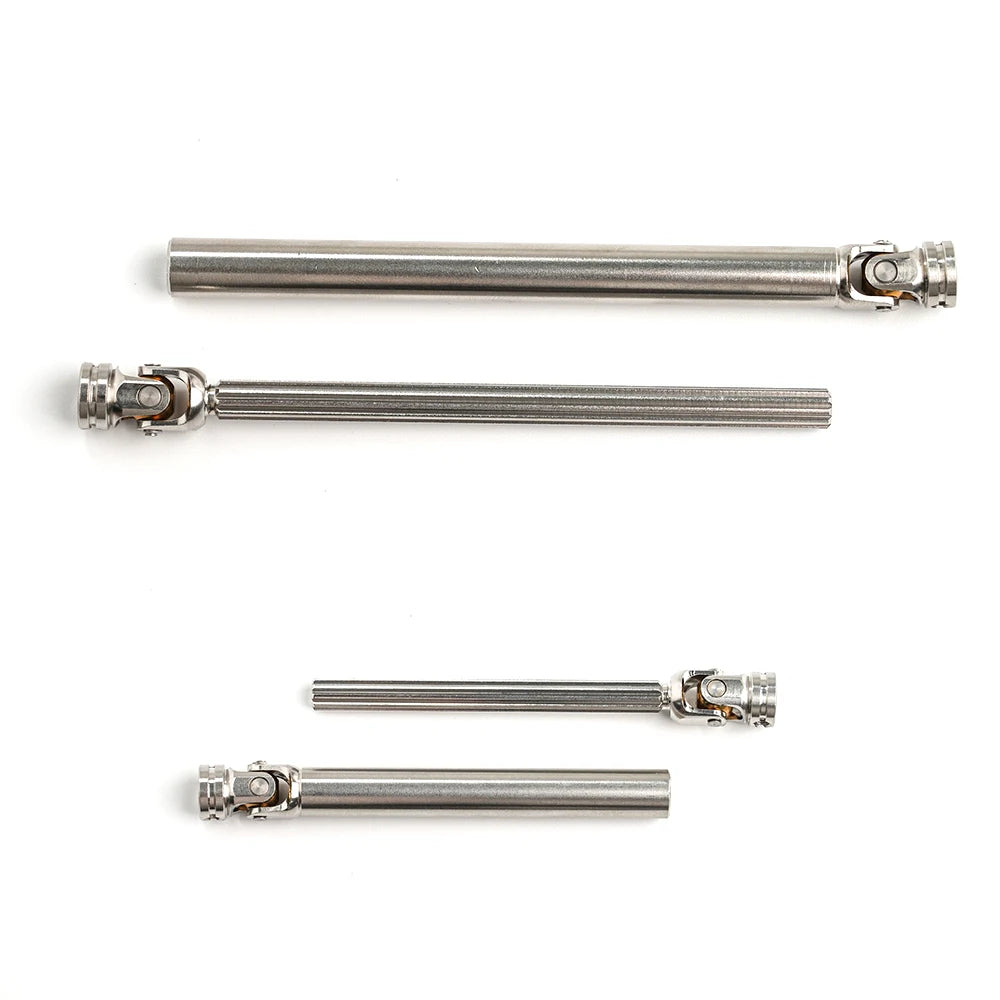

● Telescoping design - the shaft extends and compresses with suspension travel, keeping the driveline connected on articulation

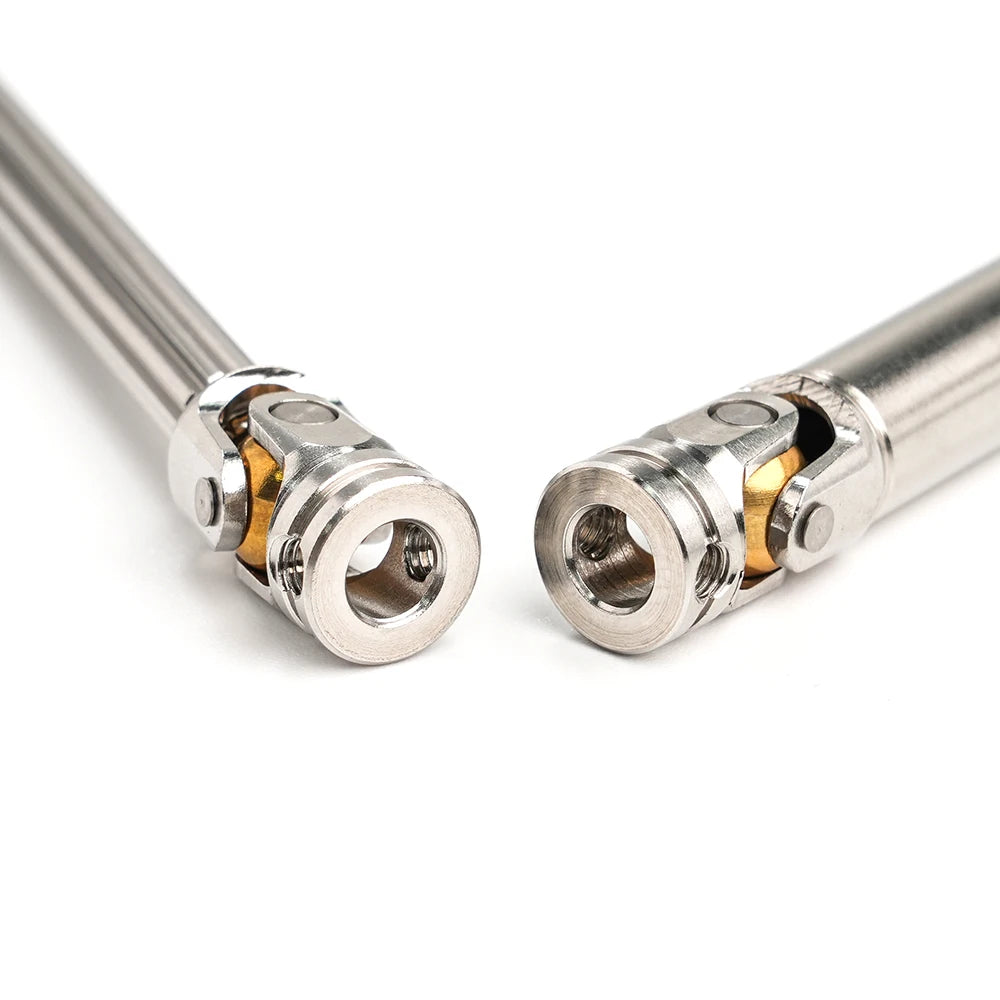

● 5mm output hole on each end - check it against your diff cup and gearbox output for a precise fit

● Eight sizes from 44-49mm up to 134-172mm - one shaft series covers short axle layouts through long wheelbase builds

● Lightweight per size - from 17g (TP-009) to 58g (TP-016) per shaft, real metal strength without bogging down the driveline

● 5 grub screws included with each shaft - everything needed to lock the joints, ready to install

**Compatibility**

Suitable for 1/14 scale tractor trucks and dump trucks, for Tamiya 1/14 chassis and similar third-party builds.

Also fits other RC cars and trucks whose driveline matches the shaft length range and hole size - always measure, do not judge by scale alone.

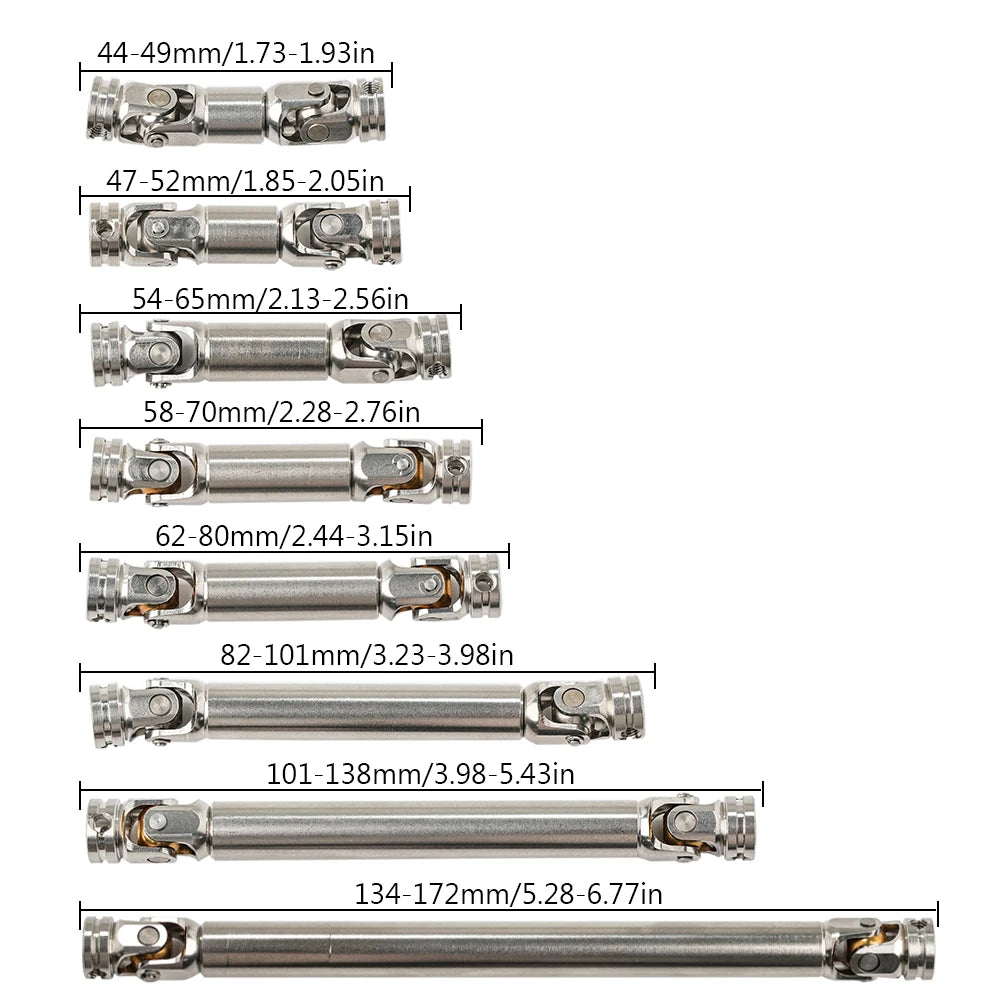

Choose by collapsed-to-extended length: TP-009 = 44-49mm, TP-010 = 47-52mm, TP-011 = 54-65mm, TP-012 = 58-70mm, TP-013 = 62-80mm, TP-014 = 82-101mm, TP-015 = 101-138mm, TP-016 = 134-172mm.

Measure the distance between your diff cup and gearbox output at both rest and full suspension droop, then pick the size whose range covers both values.

Output hole diameter is 5mm on both ends; please check the pin and cup size of your model before ordering.

**Specifications**

Material: stainless steel

Type: telescoping center drive shaft with CVD joints at both ends

Sliding section: splined (spline-type slider), small clearance

Output hole diameter: 5mm (both ends)

Joint pin hole: Ø2.6mm (per factory drawing)

| SKU | Length Range (min-max) | Weight (per shaft, incl. 5 grub screws) |

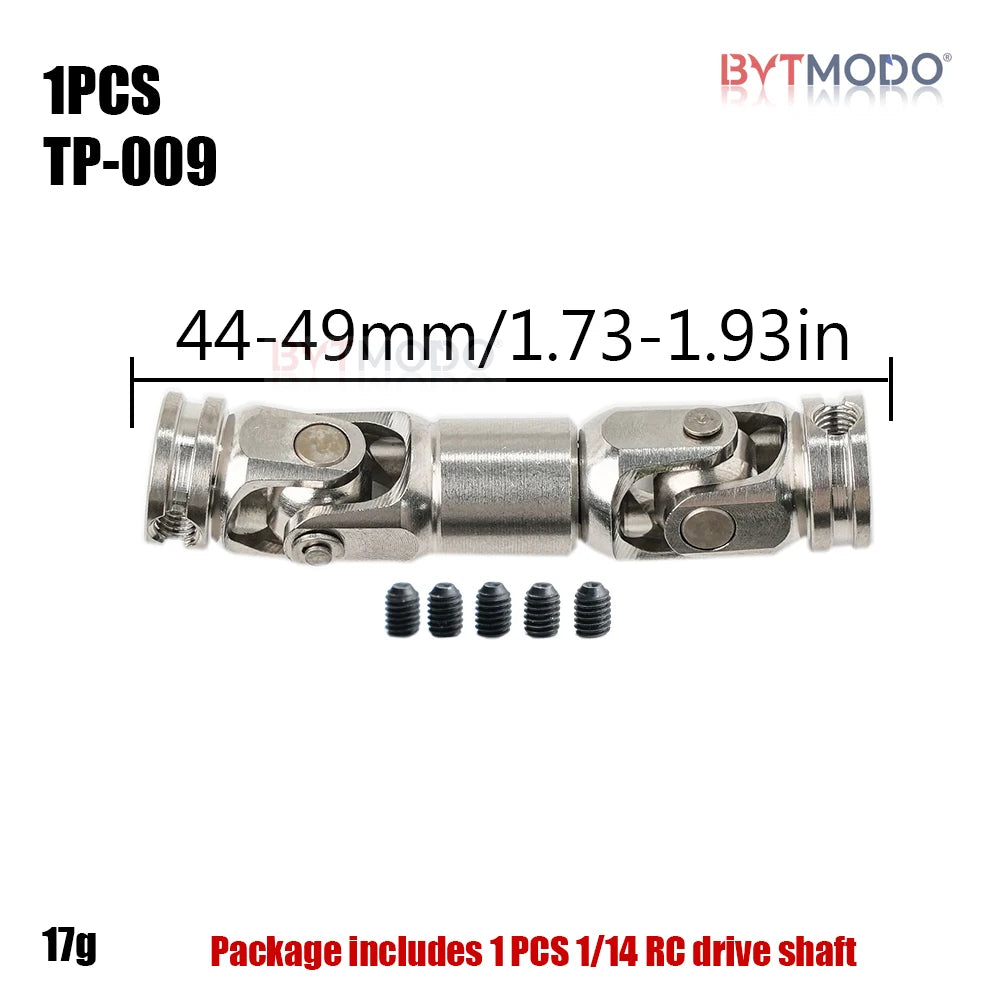

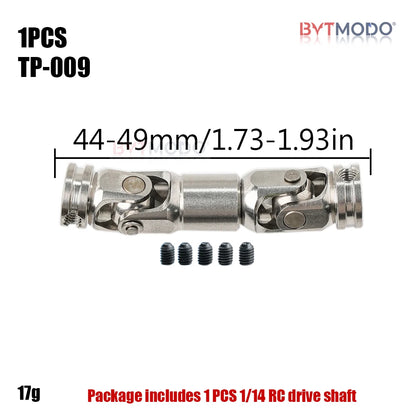

| TP-009 | 44-49mm | 17g |

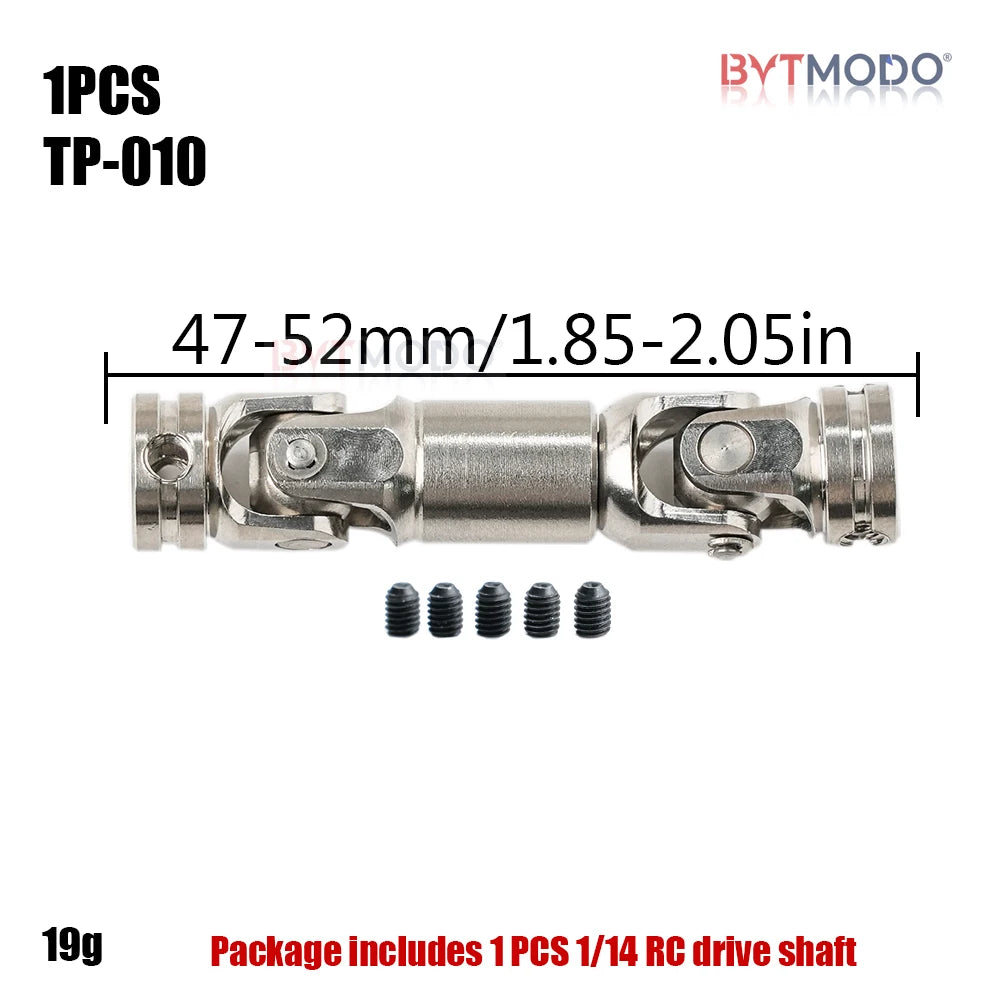

| TP-010 | 47-52mm | 19g |

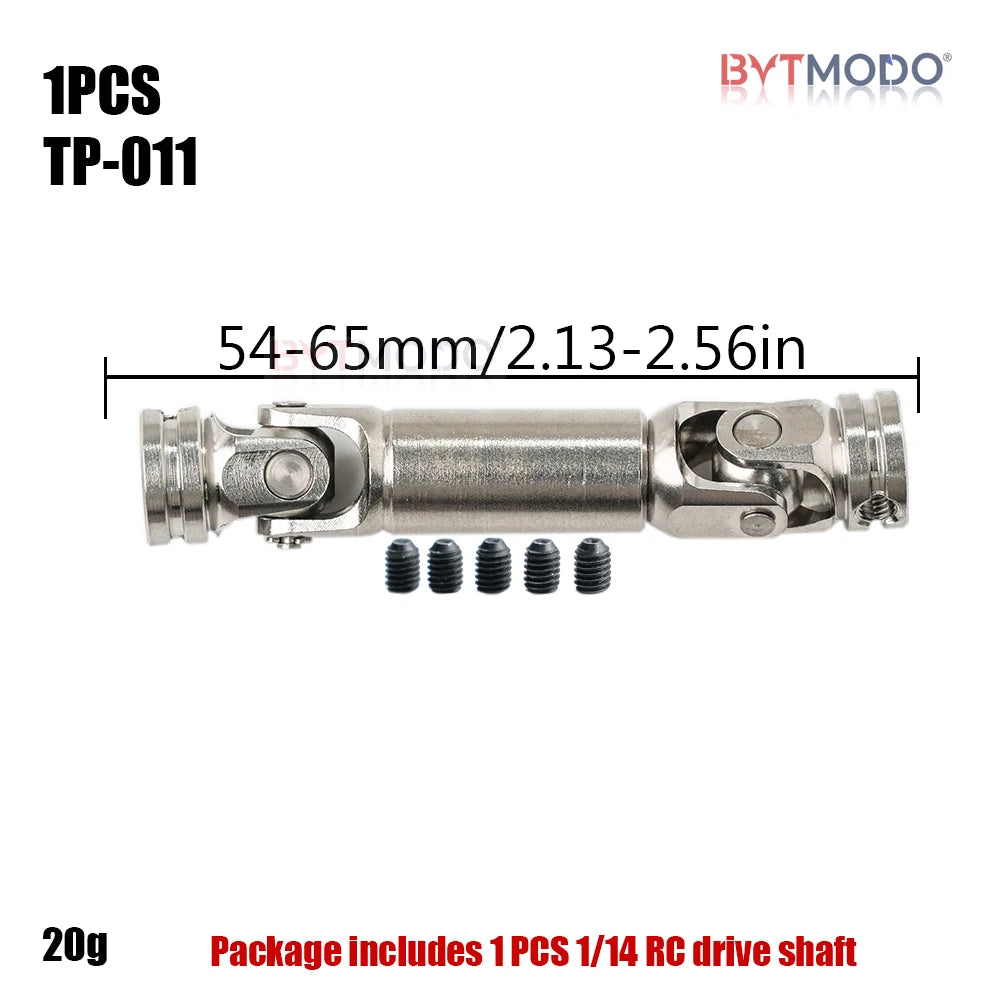

| TP-011 | 54-65mm | 20g |

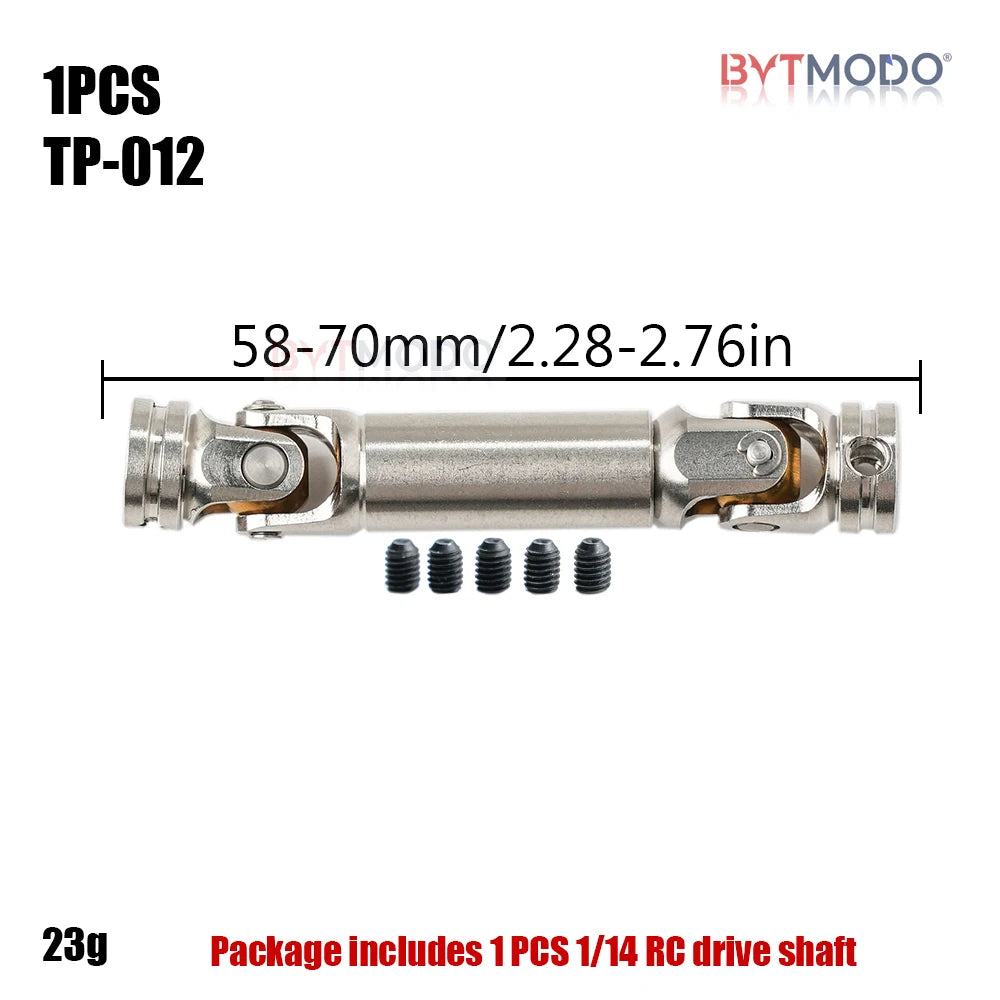

| TP-012 | 58-70mm | 23g |

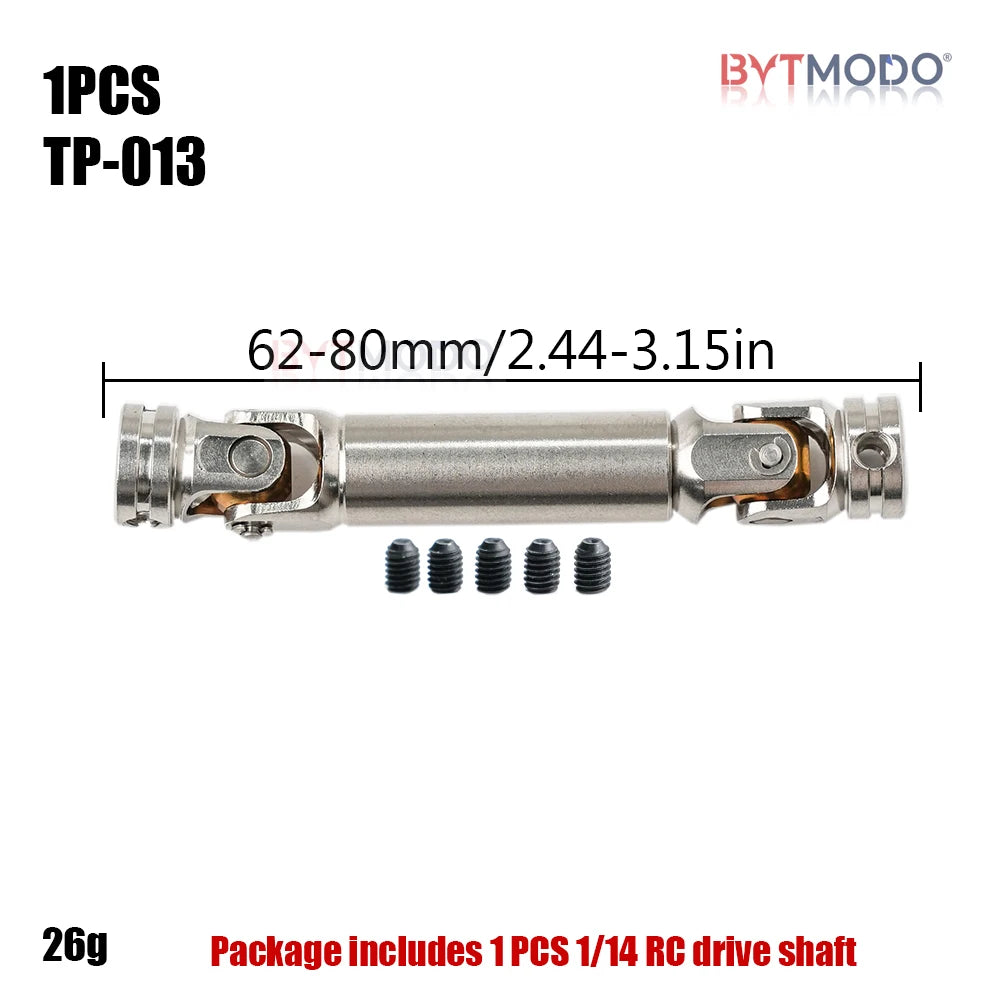

| TP-013 | 62-80mm | 26g |

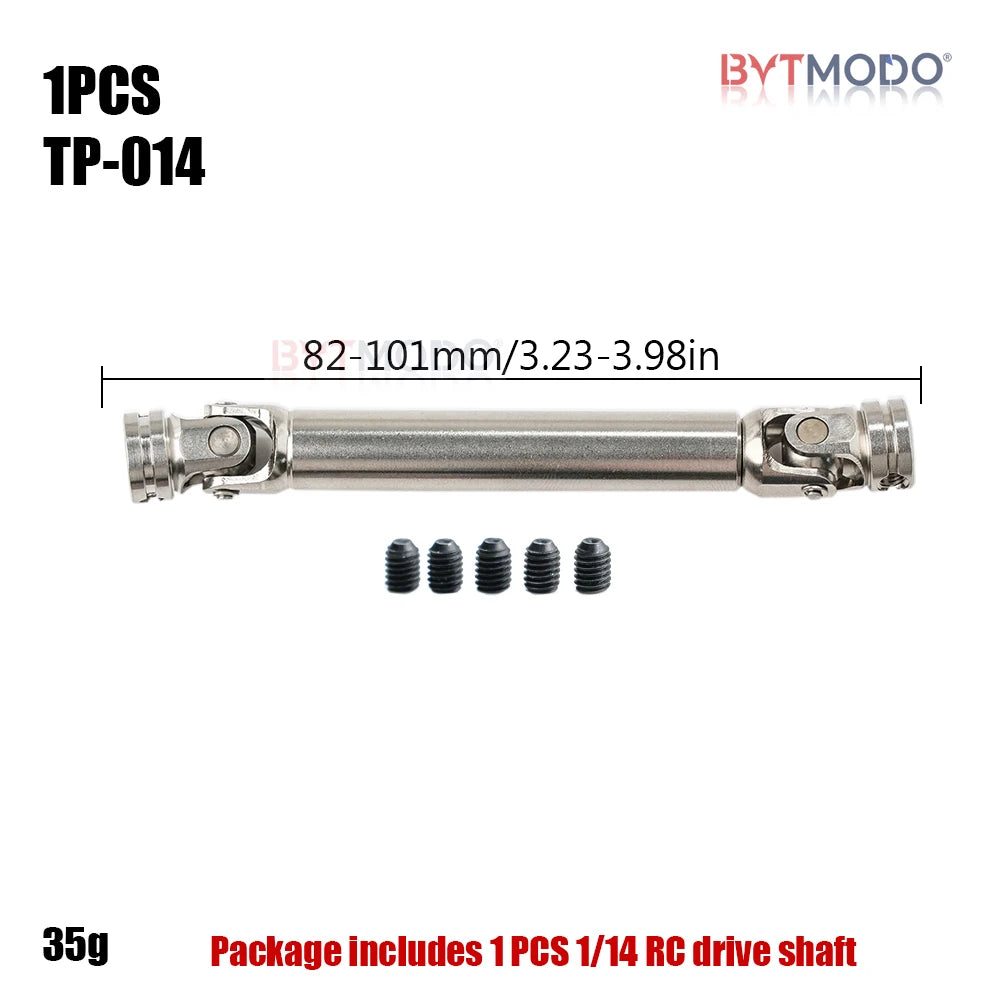

| TP-014 | 82-101mm | 35g |

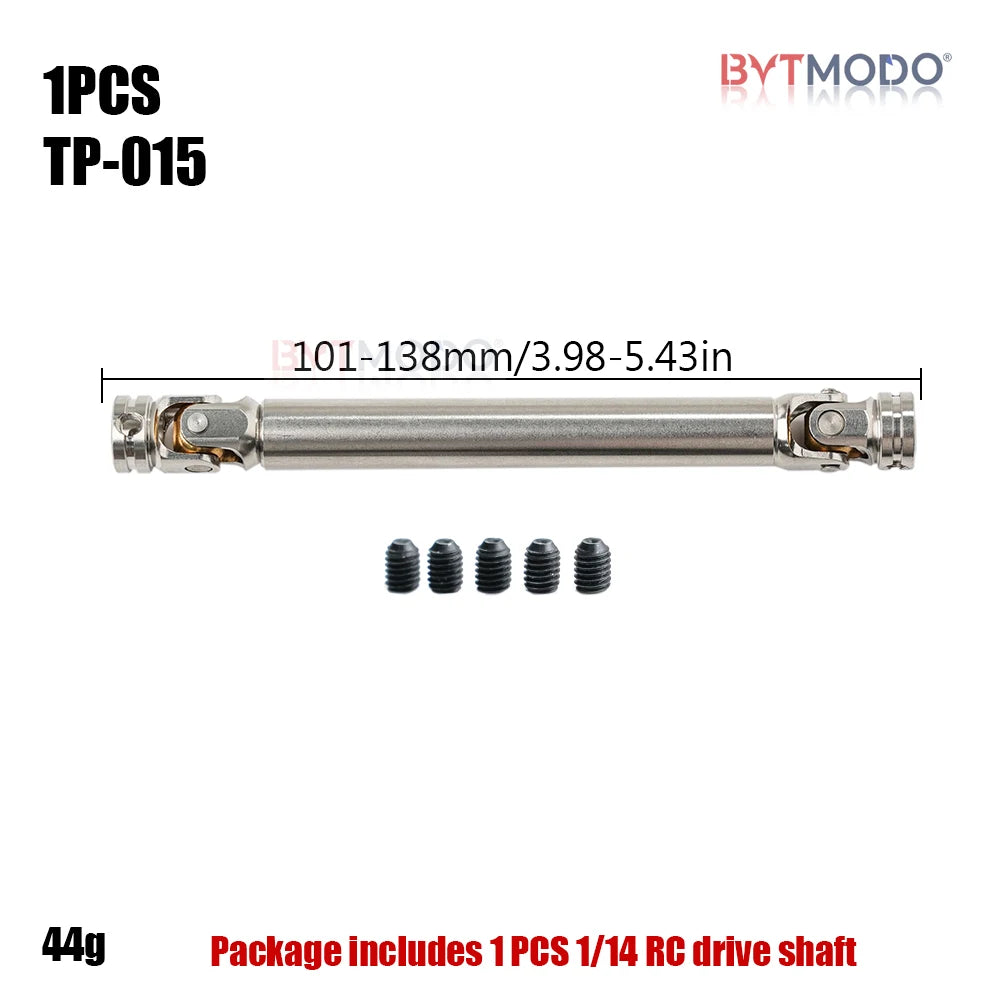

| TP-015 | 101-138毫米 | 44克 |

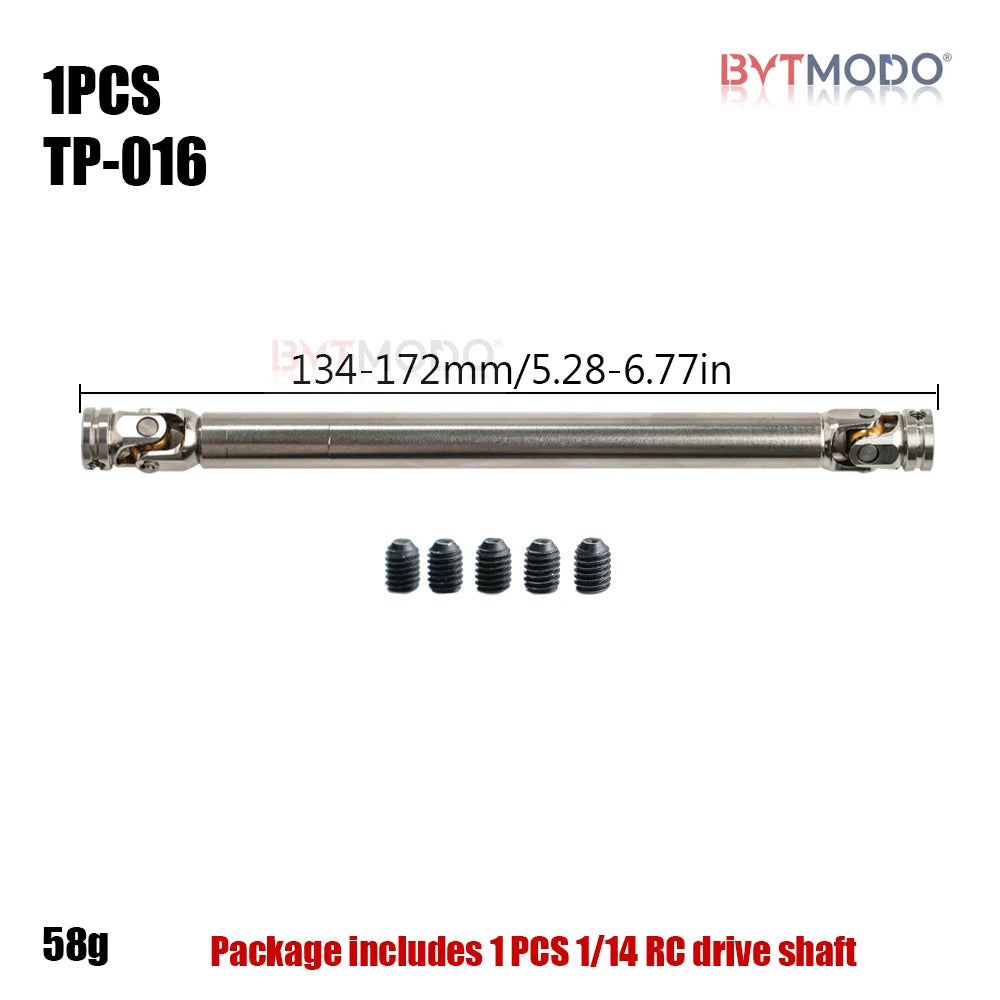

| TP-016 | 134-172毫米 | 58克 |

数量：每个SKU 1件，每根轴配有5个黑色紧定螺钉

尺寸说明：轴是伸缩式的，因此只有最小-最大长度范围适用；工厂图纸上的单个数值仅供参考，卖方提供的范围才是权威的。

**笔记**

订购前请测量传动轴在静止状态和悬架完全下垂时的长度，并确认 5mm 孔与差速器杯匹配。

不要仅凭秤的刻度来判断是否合适——同一型号的秤的不同型号使用不同的秤杆长度。

不锈钢表面有轻微的加工痕迹或抛光差异属于正常现象。

接头内部的金色挡圈是原厂零件；装配过程中残留少量油渍属于正常现象，不影响使用。

照片中所示的卡车、车轴和其他零件仅供展示，不包含在内。

这不是田宫、梅赛德斯-奔驰、斯堪尼亚或依维柯的官方产品。

文中提及的所有品牌和型号名称仅用于兼容性说明。
